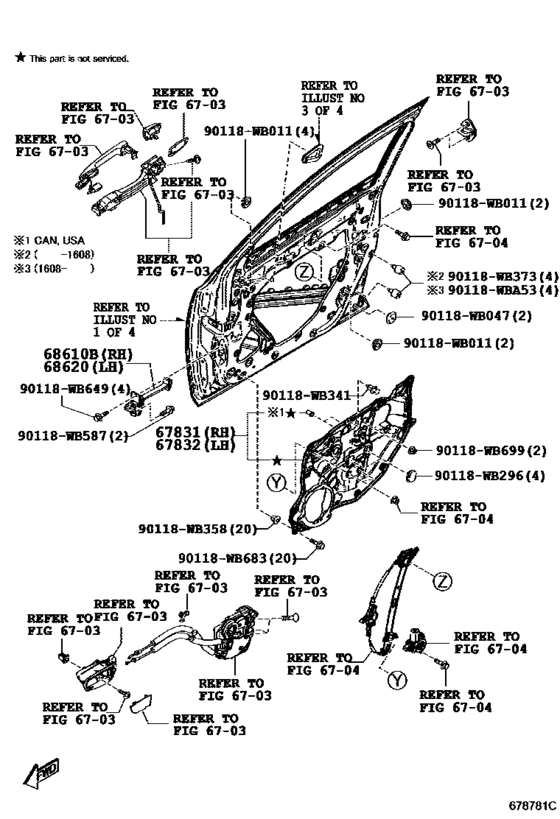

Front Door Panel & Glass ([06.2015 - ] DOOR PANEL (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67831
|
67831
67831-WB004
Cover, Front Door Service Hole, Rh
[08.2015 -] DD1C,1D |
67831-WB004 |
— | ||
|
67832
|
67832
67832-WB004
Cover, Front Door Service Hole, Lh
[08.2015 -] DD1C,1D |
67832-WB004 |
— | ||
|
68610B
|
68610B
68610-WB001
Check Assy, Front Door, Rh
[08.2015 -] DD1C,1D |
68610-WB001 |
— | ||
|
68620
|
68620
68610-WB001
Check Assy, Front Door, Rh
[08.2015 -] DD1C,1D |
68610-WB001 |
— |
