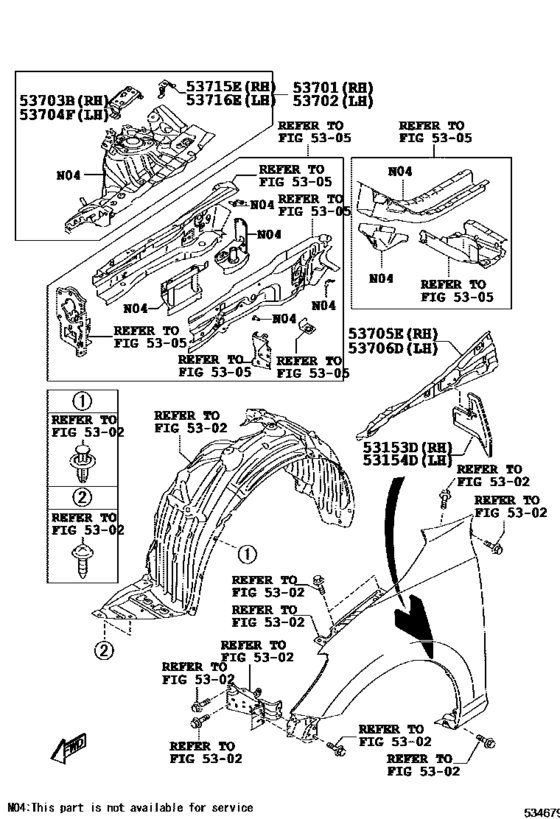

Front Fender Apron & Dash Panel ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153D
|
53153D
53153-WB001
Guide, Radiator Grille Side Air, Rh
[08.2015 -] DD1C,1D |
53153-WB001 |
— | ||
|
53154D
|
53154D
53153-WB001
Guide, Radiator Grille Side Air, Rh
[08.2015 -] DD1C,1D |
53153-WB001 |
— | ||
|
53701
|
53701
53701-WB001
Apron Sub-Assy, Front Fender, Rh
[08.2015 -] DD1C,1D |
53701-WB001 |
— | ||
|
53702
|
53702
53702-WB001
Apron Sub-Assy, Front Fender, Lh
[08.2015 -] DD1C,1D |
53702-WB001 |
— | ||
|
53703B
|
53703B
53703-WB001
Retainer Sub-Assy, Fender Apron, Rh
[08.2015 -] DD1C,1D |
53703-WB001 |
— | ||
|
53704F
|
53704F
53704-WB001
Retainer Sub-Assy, Fender Apron, Lh
[08.2015 -] DD1C,1D |
53704-WB001 |
— | ||
|
53705E
|
53705E
53705-WB001
Member Sub-Assy, Front Apron To Cowl Side, Rh
[08.2015 -] DD1C,1D |
53705-WB001 |
— | ||
|
53706D
|
53706D
53706-WB001
Member Sub-Assy, Front Apron To Cowl Side, Lh
[08.2015 -] DD1C,1D |
53706-WB001 |
— | ||
|
53715E
|
53715E
53715-WB001
Extension, Front Fender Apron, Rear Rh
[08.2015 -] DD1C,1D |
53715-WB001 |
— | ||
|
53716E
|
53716E
53716-WB001
Extension, Front Fender Apron, Rear Lh
[08.2015 -] DD1C,1D |
53716-WB001 |
— |
