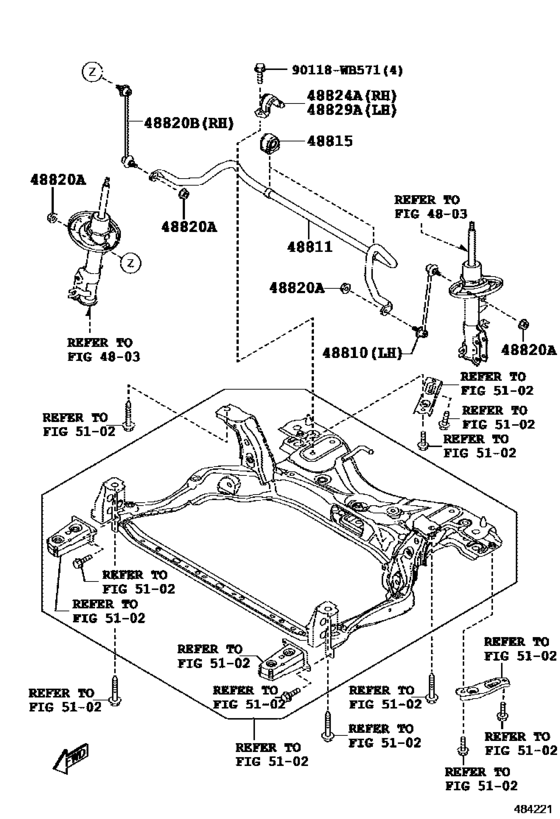

Front Spring & Shock Absorber ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48810
|
48810
48820-WB001
Link Assy, Front Stabilizer, Lh
[08.2015 -] DD1C,1D |
48820-WB001 |
— | ||
|
48811
|
48811
48811-WB001
Bar, Stabilizer, Front
[08.2015 -] DD1C,1D |
48811-WB001 |
— | ||
|
48815
|
48815
48815-WB001
Bush, Front Stabilizer Bar, No.1
[08.2015 - 07.2016] DD1C,1D |
48815-WB001 |
— | ||
|
48815
|
48815
48815-WB002
Bush, Front Stabilizer Bar, No.1
[07.2016 -] DD1C..B;DD1D..C,D;DD1B..D,E,F;DB7P..G,H,J,K,L |
48815-WB002 |
— | ||
|
48820A
|
48820A
90118-WB599
Nut(For Front Stabilizer Link)
[08.2015 -] DD1C,1D |
90118-WB599 |
— | ||
|
48820B
|
48820B
48820-WB001
Link Assy, Front Stabilizer, Lh
[08.2015 -] DD1C,1D |
48820-WB001 |
— | ||
|
48824A
|
48824A
48824-WB001
Bracket, Front Stabilizer, No.1 Rh
[08.2015 -] DD1C,1D |
48824-WB001 |
— | ||
|
48829A
|
48829A
48824-WB001
Bracket, Front Stabilizer, No.1 Rh
[08.2015 -] DD1C,1D |
48824-WB001 |
— |
