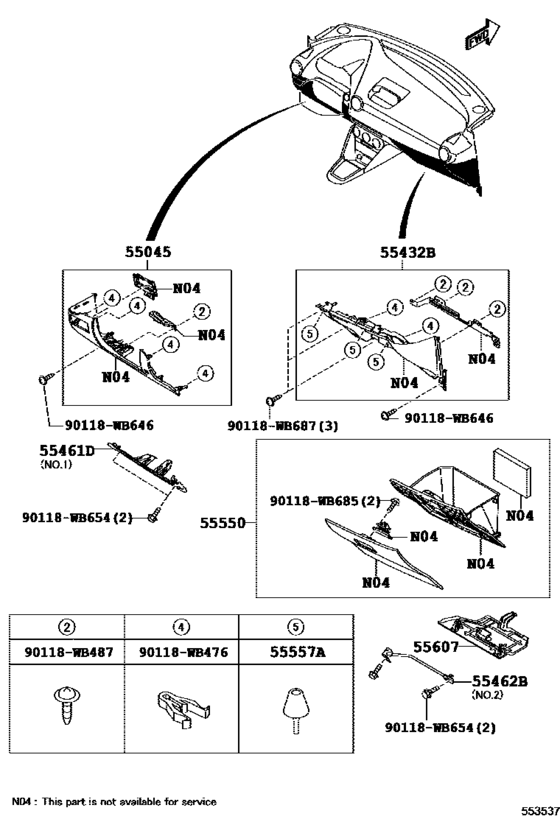

Instrument Panel & Glove Compartment ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55045
|
55045
55045-WB001
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
55045-WB001 |
— | ||
|
55432B
|
55432B
55432-WB001
Panel, Instrument Panel Finish, Lower
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
55432-WB001 |
— | ||
|
55550
|
55550
55550-WB001
Door Assy, Glove Compartment
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
55550-WB001 |
— | ||
|
55557A
|
55557A
55557-WB001
Cushion, Glove Compartment Door Check
[08.2015 -] DD1C,1D |
55557-WB001 |
— | ||
|
55607
|
55607
55607-WB001
Cover Sub-Assy, Instrument Panel Under, No.2
[08.2015 -] DD1C,1D |
55607-WB001 |
— |
