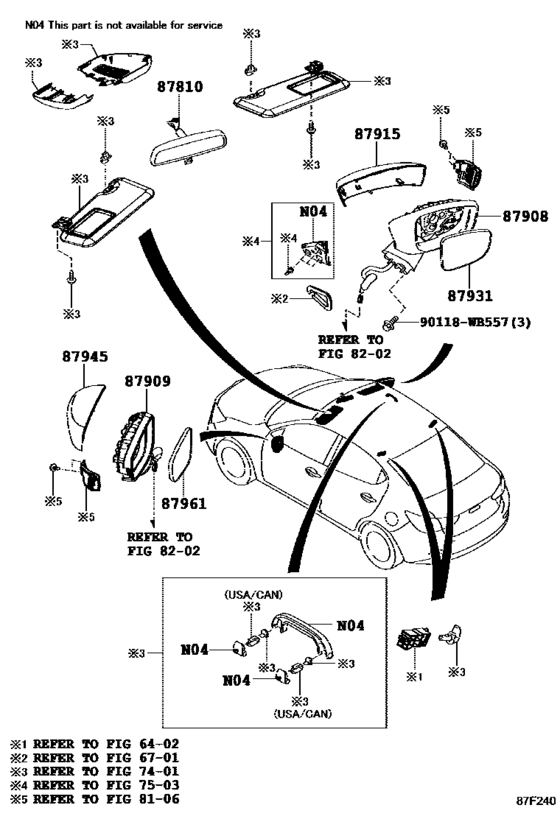

Mirror ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-WB002
Mirror Assy, Inner Rear View
[08.2015 -] DD1C,1D |
87810-WB002 |
— | ||
|
87908
|
87908
87908-WB003
Actuator Assy, Outer Mirror, Rh
[08.2015 - 01.2017] DD1D..HI |
87908-WB003 |
— | ||
| replacement | |||||
|
87908
|
87908
87908-WB006
Actuator Assy, Outer Mirror, Rh
[08.2015 - 01.2017] DD1D..HI |
87908-WB006 |
— | ||
|
87908
|
87908
87908-WB006
Actuator Assy, Outer Mirror, Rh
[01.2017 -] DD1D..C; DB7P,DD1B..D,G,K |
87908-WB006 |
— | ||
|
87909
|
87909
87909-WB003
Actuator Assy, Outer Mirror, Lh
[08.2015 - 01.2017] DD1D..HI |
87909-WB003 |
— | ||
|
87909
|
87909
87909-WB006
Actuator Assy, Outer Mirror, Lh
[01.2017 -] DD1D..C; DB7P,DD1B..D,G,K |
87909-WB006 |
— | ||
|
87915
|
87915
87915-WB001
Cover, Outer Mirror, Rh
[08.2015 -] DD1C,1D DYNAMIC BLUE MC,44J |
87915-WB001 |
— | ||
|
87915
|
87915
87915-WB002
Cover, Outer Mirror, Rh
[08.2015 -] DD1C,1D DEEP CRYSTAL BLUE MC,42M |
87915-WB002 |
— | ||
|
87915
|
87915
87915-WB003
Cover, Outer Mirror, Rh
[08.2015 -] DD1C,1D METEOR GRAY MC,42A |
87915-WB003 |
— | ||
|
87915
|
87915
87915-WB004
Cover, Outer Mirror, Rh
[08.2015 -] DD1C,1D ARCTIC WHITE CLE,A4D |
87915-WB004 |
— | ||
|
87915
|
87915
87915-WB005
Cover, Outer Mirror, Rh
[08.2015 - 07.2016] DD1C,1D ALUMINUM METALLIC,38P |
87915-WB005 |
— | ||
|
87915
|
87915
87915-WB006
Cover, Outer Mirror, Rh
[08.2015 -] DD1C,1D JET BLACK MC,41W |
87915-WB006 |
— | ||
|
87915
|
87915
87915-WB007
Cover, Outer Mirror, Rh
[08.2015 -] DD1C,1D ZEAL RED MC,41G |
87915-WB007 |
— | ||
|
87915
|
87915
87915-WB008
Cover, Outer Mirror, Rh
[09.2016 -] DB7P,DD1# SONIC SILVER M,45P |
87915-WB008 |
— | ||
|
87931
|
87931
87931-WB001
Outer Mirror, Rh
[08.2015 -] DD1C,1D |
87931-WB001 |
— | ||
|
87945
|
87945
87945-WB001
Cover, Outer Mirror, Lh
[08.2015 -] DD1C,1D DYNAMIC BLUE MC,44J |
87945-WB001 |
— | ||
|
87945
|
87945
87945-WB002
Cover, Outer Mirror, Lh
[08.2015 -] DD1C,1D DEEP CRYSTAL BLUE MC,42M |
87945-WB002 |
— | ||
|
87945
|
87945
87945-WB003
Cover, Outer Mirror, Lh
[08.2015 -] DD1C,1D METEOR GRAY MC,42A |
87945-WB003 |
— | ||
|
87945
|
87945
87945-WB004
Cover, Outer Mirror, Lh
[08.2015 -] DD1C,1D ARCTIC WHITE CLE,A4D |
87945-WB004 |
— | ||
|
87945
|
87945
87945-WB005
Cover, Outer Mirror, Lh
[08.2015 - 07.2016] DD1C,1D ALUMINUM METALLIC,38P |
87945-WB005 |
— | ||
|
87945
|
87945
87945-WB006
Cover, Outer Mirror, Lh
[08.2015 -] DD1C,1D JET BLACK MC,41W |
87945-WB006 |
— | ||
|
87945
|
87945
87945-WB007
Cover, Outer Mirror, Lh
[08.2015 -] DD1C,1D ZEAL RED MC,41G |
87945-WB007 |
— | ||
|
87945
|
87945
87945-WB008
Cover, Outer Mirror, Lh
[09.2016 -] DB7P,DD1# SONIC SILVER M,45P |
87945-WB008 |
— | ||
|
87961
|
87961
87961-WB001
Mirror Outer, Lh
[08.2015 -] DD1C,1D |
87961-WB001 |
— | ||
