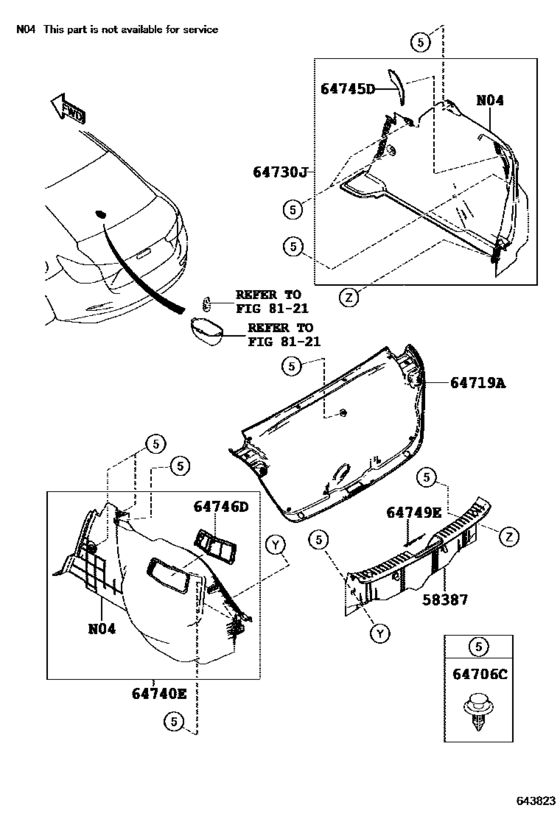

Package Tray Panel & Luggage Compartment Mat ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-WB001
Plate, Rear Floor Finish
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
58387-WB001 |
— | ||
|
64706C
|
64706C
90118-WB353
Clip
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
90118-WB353 |
— | ||
|
64719A
|
64719A
64719-WB002
Cover, Luggage Compartment Door
[08.2015 -] DD1C,1D |
64719-WB002 |
— | ||
|
64730J
|
64730J
64721-WB002
Panel Assy, Deck Trim Side, Rh
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
64721-WB002 |
— | ||
|
64740E
|
64740E
64722-WB002
Panel Assy, Deck Trim Side, Lh
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
64722-WB002 |
— | ||
|
64745D
|
64745D
64745-WB001
Cover, Rear Combination Lamp Service, Rh
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
64745-WB001 |
— | ||
|
64746D
|
64746D
64746-WB002
Cover, Rear Combination Lamp Service, Lh
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
64746-WB002 |
— | ||
|
64749E
|
64749E
64749-WB001
Cover, Luggage Compartment Door Striker
[08.2015 -] DD1C,1D BLACK,TRIM70,80 |
64749-WB001 |
— |
