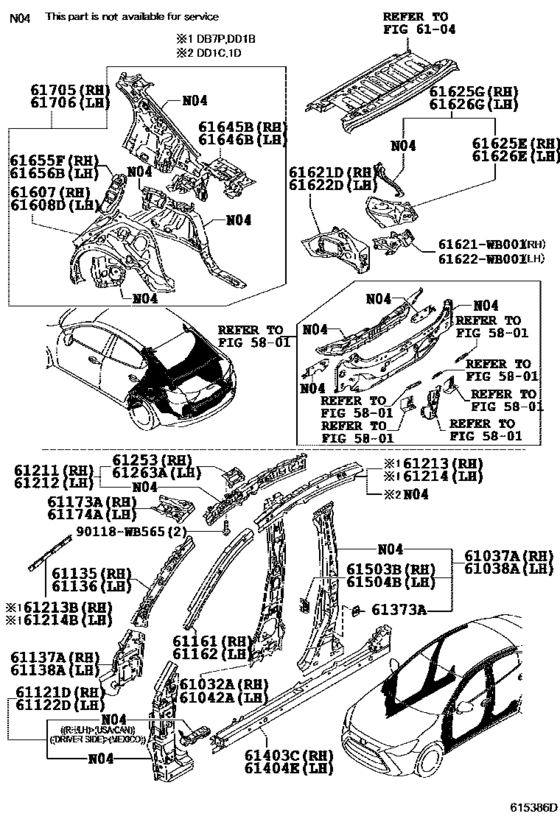

Side Member ([06.2015 - ] INNER PANEL (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61032A
|
61032A
61032-WB003
Pillar Sub-Assy, No.1 Inner, Rh
[08.2015 -] DD1C,1D |
61032-WB003 |
— | ||
|
61037A
|
61037A
61037-WB001
Reinforcement Sub-Assy, Center Body Pillar, Rh
[08.2015 -] DD1C,1D |
61037-WB001 |
— | ||
|
61038A
|
61038A
61038-WB002
Reinforcement Sub-Assy, Center Body Pillar, Lh
[08.2015 -] DD1C,1D |
61038-WB002 |
— | ||
|
61042A
|
61042A
61042-WB003
Pillar Sub-Assy, No.1 Inner, Lh
[08.2015 -] DD1C,1D |
61042-WB003 |
— | ||
|
61121D
|
61121D
61121-WB003
Panel, Cowl Side, Rh
[08.2015 -] DD1C,1D |
61121-WB003 |
— | ||
|
61122D
|
61122D
61122-WB003
Panel, Cowl Side, Lh
[08.2015 -] DD1C,1D |
61122-WB003 |
— | ||
|
61135
|
61135
61135-WB001
Reinforcement, Front Body Pillar, Upper Rh
[08.2015 -] DD1C,1D |
61135-WB001 |
— | ||
|
61136
|
61136
61136-WB001
Reinforcement, Front Body Pillar, Upper Lh
[08.2015 -] DD1C,1D |
61136-WB001 |
— | ||
|
61137A
|
61137A
61137-WB004
Reinforcement, Front Body Pillar, Lower Outer Rh
[08.2015 -] DD1C,1D |
61137-WB004 |
— | ||
|
61138A
|
61138A
61138-WB002
Reinforcement, Front Body Pillar, Lower Outer Lh
[08.2015 -] DB7P,DD1# |
61138-WB002 |
— | ||
|
61161
|
61161
61161-WB001
Pillar, Front Body, Upper Inner Rh
[08.2015 -] DD1C,1D |
61161-WB001 |
— | ||
|
61162
|
61162
61162-WB001
Pillar, Front Body, Upper Inner Lh
[08.2015 -] DD1C,1D |
61162-WB001 |
— | ||
|
61173A
|
61173A
61173-WB001
Reinforcement, Front Body Pillar, Upper Inner Rh
[08.2015 -] DD1C,1D |
61173-WB001 |
— | ||
|
61174A
|
61174A
61174-WB001
Reinforcement, Front Body Pillar, Upper Inner Lh
[08.2015 -] DD1C,1D |
61174-WB001 |
— | ||
|
61211
|
61211
61211-WB001
Rail, Roof Side, Outer Rh
[08.2015 -] DD1C,1D |
61211-WB001 |
— | ||
|
61212
|
61212
61212-WB001
Rail, Roof Side, Outer Lh
[08.2015 -] DD1C,1D |
61212-WB001 |
— | ||
|
61213
|
61213
61213-WB003
Rail, Roof Side, Outer Rear Rh
[08.2015 -] DD1C,1D |
61213-WB003 |
— | ||
|
61214
|
61214
61214-WB003
Rail, Roof Side, Outer Rear Lh
[08.2015 -] DD1C,1D |
61214-WB003 |
— | ||
|
61214B
|
61214B
61214-WB001
Rail, Roof Side, Outer No.2 Lh
[08.2015 -] DD1C,1D |
61214-WB001 |
— | ||
|
61253
|
61253
61253-WB001
Pillar, No.2 Inner, Rh
[08.2015 -] DD1C,1D |
61253-WB001 |
— | ||
|
61263A
|
61263A
61263-WB001
Pillar, No.2 Inner, Lh
[08.2015 -] DD1C,1D |
61263-WB001 |
— | ||
|
61373A
|
61373A
61373-WB001
Reinforce, Center Pillar Lower Hinge, No.1 Rh
[08.2015 -] DD1C,1D |
61373-WB001 |
— | ||
|
61403C
|
61403C
61403-WB002
Reinforce Sub-Assy, Rocker, Outer Rh
[08.2015 -] DD1C,1D |
61403-WB002 |
— | ||
|
61404E
|
61404E
61404-WB002
Reinforce Sub-Assy, Rocker, Outer Lh
[08.2015 -] DD1C,1D |
61404-WB002 |
— | ||
|
61503B
|
61503B
61315-WB001
Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
[08.2015 -] DD1C,1D |
61315-WB001 |
— | ||
|
61504B
|
61504B
61315-WB001
Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
[08.2015 -] DD1C,1D |
61315-WB001 |
— | ||
|
61607
|
61607
61607-WB001
Frame Sub-Assy, Back Door Opening Side, Lh
[08.2015 -] DD1C,1D |
61607-WB001 |
— | ||
|
61608D
|
61608D
61608-WB001
Panel, Quarter Wheel House, Inner Lh
[08.2015 -] DD1C,1D |
61608-WB001 |
— | ||
|
61621D
|
61621D
64201-WB001
Trough, Back Door Opening, Rh
[08.2015 -] DD1C,1D |
64201-WB001 |
— | ||
|
61622D
|
61622D
64202-WB001
Trough, Back Door Opening, Lh
[08.2015 - 12.2015] DD1C,1D |
64202-WB001 |
— | ||
| replacement | |||||
|
61622D
|
61622D
64202-WB002
Trough, Back Door Opening, Lh
[08.2015 - 12.2015] DD1C,1D |
64202-WB002 |
— | ||
|
61622D
|
61622D
64202-WB002
Trough, Back Door Opening, Lh
[12.2015 -] DB7P,DD1B; DD1C,1D |
64202-WB002 |
— | ||
|
61625E
|
61625E
61625-WB002
Extension, Quarter Panel, Inner Rear Rh
[08.2015 -] DD1C,1D |
61625-WB002 |
— | ||
|
61625G
|
61625G
61033-WB002
Extension, Quarter Panel, Rear Rh
[08.2015 -] DD1C,1D |
61033-WB002 |
— | ||
|
61626E
|
61626E
61626-WB002
Extension, Quarter Panel, Inner Rear Lh
[08.2015 -] DD1C,1D |
61626-WB002 |
— | ||
|
61626G
|
61626G
61034-WB002
Extension, Quarter Panel, Rear Lh
[08.2015 -] DD1C,1D |
61034-WB002 |
— | ||
|
61645B
|
61645B
61645-WB001
Gusset, Quarter Wheel House, Rear Rh
[08.2015 -] DD1C,1D |
61645-WB001 |
— | ||
|
61646B
|
61646B
61646-WB001
Gusset, Quarter Wheel House, Rear Lh
[08.2015 -] DD1C,1D |
61646-WB001 |
— | ||
|
61655F
|
61655F
61655-WB001
Bracket, Back Door Stay, Upper Rh
[08.2015 -] DD1C,1D |
61655-WB001 |
— | ||
|
61656B
|
61656B
61656-WB001
Bracket, Back Door Stay, Upr Lh
[08.2015 -] DD1C,1D |
61656-WB001 |
— | ||
|
61705
|
61705
61705-WB002
Panel Sub-Assy, Roof Side, Inner Rh
[08.2015 -] DB7P,DD1# |
61705-WB002 |
— | ||
|
61706
|
61706
61706-WB002
Panel Sub-Assy, Roof Side, Inner Lh
[08.2015 -] DB7P,DD1# |
61706-WB002 |
— | ||
