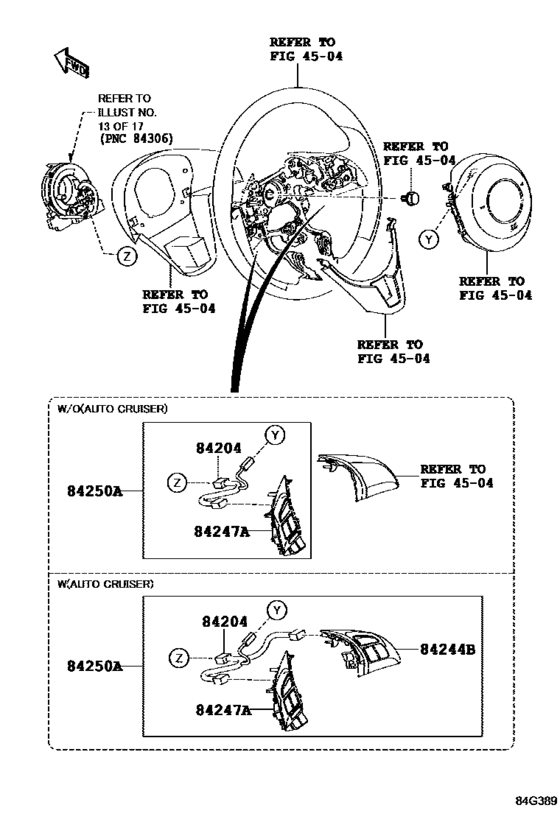

Switch & Relay & Computer ([06.2015 - ] STEERING(1/2) (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84204
|
84204
84204-WB002
Cable Sub-Assy, Steering Pad Switch
[08.2015 -] DD1C,1D |
84204-WB002 |
— | ||
|
84247A
|
84247A
84247-WB002
Switch, Steering Pad, Lh
[08.2015 -] DD1C,1D |
84247-WB002 |
— | ||
|
84250A
|
84250A
84250-WB002
Switch Assy, Steering Pad
[08.2015 -] DD1C,1D |
84250-WB002 |
— |
