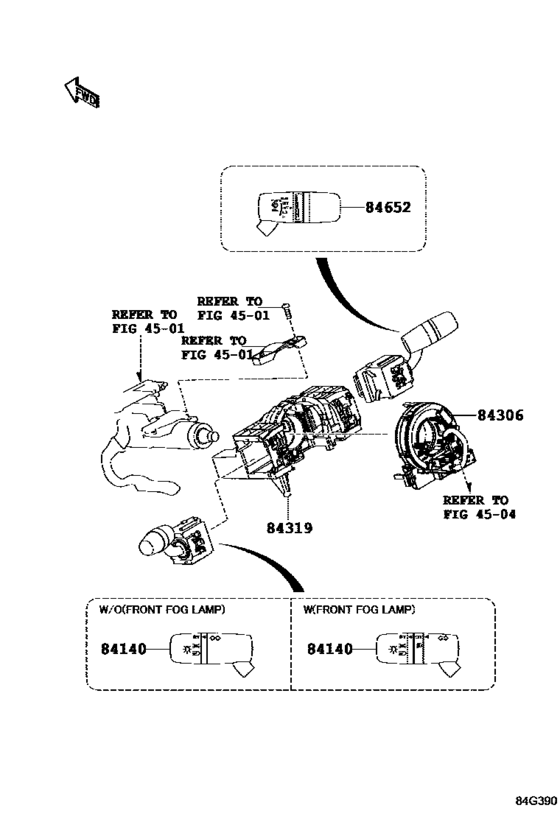

Switch & Relay & Computer ([06.2015 - ] STEERING(2/2) (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-WB008
Switch Assy, Headlamp Dimmer
[04.2016 -] DD1D..HI; DB7P..HI |
84140-WB008 |
— | ||
|
84306
|
84306
84306-WB004
Cable Sub-Assy, Spiral
[08.2015 -] DD1C,1D |
84306-WB004 |
— | ||
|
84319
|
84319
84319-WB005
Housing, Steering Wheel Switch
[08.2015 -] DD1C,1D |
84319-WB005 |
— | ||
|
84652
|
84652
84652-WB001
Knob, Windshield Wiper Switch (For Washer)
[08.2015 -] DD1C,1D |
84652-WB001 |
— |
