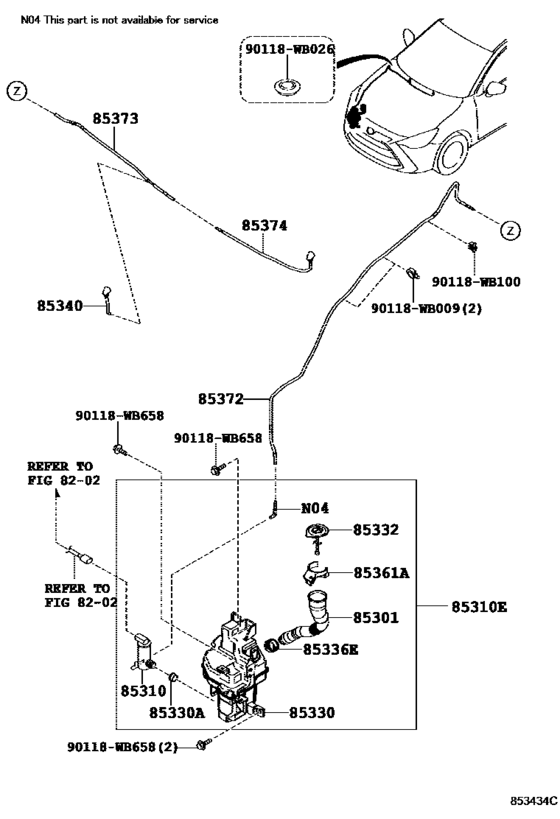

Windshield Washer ([06.2015 - ] F.WASHER TANK ; STD (1506- )MXC,PUE) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85301
|
85301
85319-WB001
Inlet Sub-Assy, Washer
[08.2015 -] DD1C,1D |
85319-WB001 |
— | ||
|
85310
|
85310
85330-WB001
Motor And Pump Assy, Windshield Washer
[08.2015 -] DD1C,1D |
85330-WB001 |
— | ||
|
85310E
|
85310E
85310-WB001
Jar & Pump Assy, Washer
[08.2015 -] DD1C,1D |
85310-WB001 |
— | ||
|
85330
|
85330
85315-WB001
Jar Assy, Windshield Washer
[08.2015 -] DD1C,1D |
85315-WB001 |
— | ||
|
85330A
|
85330A
90118-WB023
Bush, Windshield Washer Jar
[08.2015 -] DD1C,1D |
90118-WB023 |
— | ||
|
85332
|
85332
85316-WB001
Cap, Windshield Washer Jar
[08.2015 -] DD1C,1D |
85316-WB001 |
— | ||
|
85336E
|
85336E
90118-WB024
Packing, Windshield Washer Inlet Hose
[08.2015 -] DD1C,1D |
90118-WB024 |
— | ||
|
85340
|
85340
85381-WB003
Nozzle And Hose Assy, Windshield Washer
[08.2015 -] DD1C,1D |
85381-WB003 |
— | ||
|
85361A
|
85361A
85337-WB001
Bracket, Windshield Washer, No.1
[08.2015 -] DD1C,1D |
85337-WB001 |
— | ||
|
85372
|
85372
90118-WB084
Hose, Windshield Washer (From Joint To Joint), No.1
[08.2015 -] DD1C,1D |
90118-WB084 |
— | ||
|
85373
|
85373
90118-WBA15
Hose, Windshield Washer (From Joint To Nozzle)
[08.2015 -] DD1C,1D |
90118-WBA15 |
— | ||
|
85374
|
85374
85382-WB001
Hose, Windshield Washer (From Nozzle To Nozzle)
[08.2015 -] DD1C,1D |
85382-WB001 |
— |
