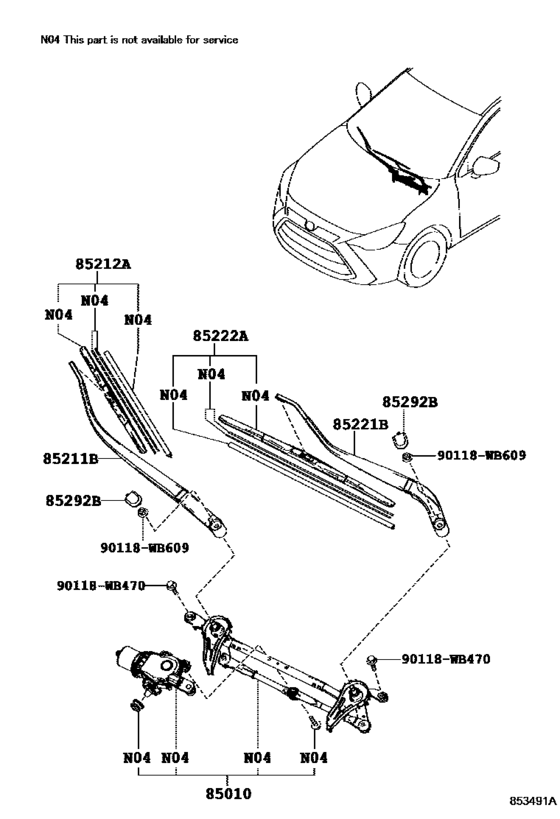

Windshield Wiper ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85010
|
85010
85010-WB002
Motor & Link Assy, Fr Wiper
[09.2015 -] DB7P,DD1# |
85010-WB002 |
— | ||
|
85211B
|
85211B
85221-WB002
Arm, Front Wiper, Rh
[08.2015 -] DD1C,1D |
85221-WB002 |
— | ||
|
85212A
|
85212A
85212-WB002
Blade, Fr Wiper, Rh
[08.2015 -] DD1C,1D |
85212-WB002 |
— | ||
|
85221B
|
85221B
85221-WB001
Arm, Front Wiper, Lh
[08.2015 -] DD1C,1D |
85221-WB001 |
— | ||
|
85222A
|
85222A
85212-WB001
Blade, Fr Wiper, Lh
[08.2015 -] DD1C,1D |
85212-WB001 |
— | ||
|
85292B
|
85292B
85292-WB001
Cap, Front Wiper Arm Head
[08.2015 -] DD1C,1D |
85292-WB001 |
— |
