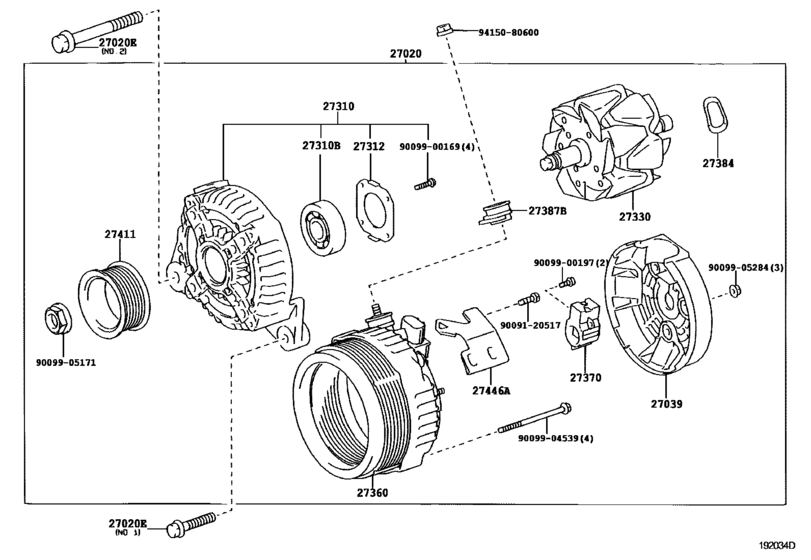

Alternator ([05.2004 - ] 12V 100A (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-28270 Alternator Assy[05.2004 - 05.2006] 2AZFE..ANT10 12V 100A |
27060-28270 |
US $1,820 |
||
| replacement | |||||
|
27020
|
27020
27060-28260 Alternator Assy[05.2004 - 05.2006] 2AZFE..ANT10 12V 100A |
27060-28260 |
US $1,799.62 |
||
|
27020
|
27020
27060-28350 Alternator Assy[05.2006 -] 2AZFE..ANT10 12V 100A |
27060-28350 |
US $1,514.24 |
||
|
27020E
|
27020E
91511-J0840 Bolt(For Alternator)[05.2004 - 05.2006] 2AZFE..ANT10 NO.1 |
91511-J0840 |
from US $2.88 |
||
|
27020E
|
27020E
91512-81085 Bolt(For Alternator)[05.2004 -] 2AZFE..ANT10 NO.2 |
91512-81085 |
from US $1.92 |
||
|
27020E
|
27020E
91551-80840 Bolt(For Head To Camshaft Bearing Cap)[05.2006 -] 2AZFE..ANT10 NO.1 |
91551-80840 |
from US $1.23 |
||
|
27039
|
27039
27039-27060
Cover, Alternator Rear End
[05.2004 - 06.2009] 2AZFE..ANT10 |
27039-27060 |
— | ||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[06.2009 -] 2AZFE..ANT10 |
27039-31390 |
— | ||
|
27310
|
27310
27310-28120
Frame Assy, Drive End, Alternator
[05.2004 -] 2AZFE..ANT10 |
27310-28120 |
— | ||
|
27310B
|
27310B
90099-10142
Bearing(For Alternator Drive End Frame)
[05.2004 - 11.2006] 2AZFE..ANT10 |
90099-10142 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[12.2006 -] 2AZFE..ANT10 |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[05.2004 -] 2AZFE..ANT10 |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[05.2004 -] 2AZFE..ANT10 |
27330-30070 |
— | ||
|
27360
|
27360
27360-28210
Coil Assy, Alternator
[05.2004 - 05.2006] 2AZFE..ANT10 |
27360-28210 |
— | ||
| replacement | |||||
|
27360
|
27360
27360-28200 Coil Assy, Alternator[05.2004 - 05.2006] 2AZFE..ANT10 |
27360-28200 |
US $635.88 |
||
|
27360
|
27360
27360-28280
Coil Assy, Alternator
[05.2006 -] 2AZFE..ANT10 |
27360-28280 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[05.2004 -] 2AZFE..ANT10 |
27370-58460 |
from US $16.25 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[05.2006 -] 2AZFE..ANT10 |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[05.2004 -] 2AZFE..ANT10 |
27387-20130 |
from US $4.02 |
||
|
27411
|
27411
27411-28060 Pulley, Alternator[05.2004 -] 2AZFE..ANT10 |
27411-28060 |
US $24.63 |
||
|
27446A
|
27446A
27446-28120
Clip, Alternator Cord
[05.2004 -] 2AZFE..ANT10 |
27446-28120 |
— | ||
|
9009120517
|
9009120517
90091-20517
New Genuine Part
|
90091-20517 |
— | ||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
||
