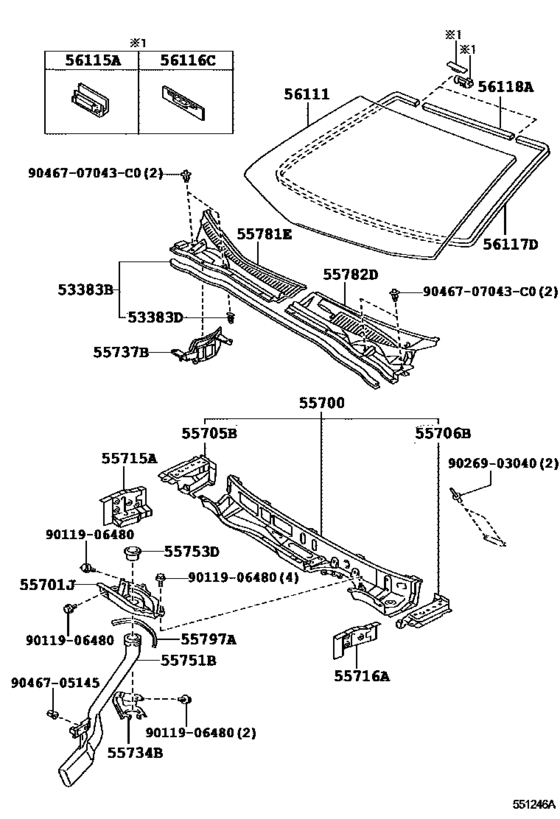

Cowl Panel & Windshield Glass ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-21020
Seal, Hood To Cowl Top
[05.2004 -] ANT10 |
53383-21020 |
— | ||
|
53383D
|
53383D
90467-08108 Clip(For Hood To Cowl Top Seal)[05.2004 -] ANT10 |
90467-08108 |
from US $0.82 |
||
|
55700
|
55700
55700-21080 Panel Assy, FrontFRONT [05.2004 - 07.2010] ANT10 |
55700-21080 |
US $416.42 |
||
|
55701J
|
55701J
55701-21010 Panel Sub-Assy, Cowl Top, OuterCOWL TOP, OUTER [05.2004 -] ANT10 |
55701-21010 |
US $42.81 |
||
|
55705B
|
55705B
55705-21020 Panel Sub-Assy, Cowl Top Side, RhCOWL TOP SIDE, RH [05.2004 -] ANT10 |
55705-21020 |
US $46.59 |
||
|
55706B
|
55706B
55706-21020 Panel Sub-Assy, Cowl Top Side, LhCOWL TOP SIDE, LH [05.2004 -] ANT10 |
55706-21020 |
US $46.59 |
||
|
55715A
|
55715A
55715-21020 Brace, Cowl Top To Apron, Rh[05.2004 - 07.2010] ANT10 |
55715-21020 |
US $17.04 |
||
|
55716A
|
55716A
55716-21020 Brace, Cowl Top To Apron, Lh[05.2004 - 07.2010] ANT10 |
55716-21020 |
US $17.04 |
||
|
55734B
|
55734B
55734-21010 Bracket, Cowl Body Mounting, Lower LhCOWL BODY MOUNTING, LOWER LH [05.2004 -] ANT10 |
55734-21010 |
US $11.07 |
||
|
55737B
|
55737B
55737-21010 Seal, Heater Air Duct Splash Shield, No.1HEATER AIR DUCT SPLASH SHIELD, NO.1 [05.2004 -] ANT10 |
55737-21010 |
US $18.93 |
||
|
55751B
|
55751B
55751-21010 Hose, Cowl Water Extract, No.1COWL WATER EXTRACT, NO.1 [05.2004 -] ANT10 |
55751-21010 |
US $24.90 |
||
|
55753D
|
55753D
55753-63010 Shield, Cowl Water Extract, Rh[05.2004 -] ANT10 |
55753-63010 |
US $4.37 |
||
|
55781E
|
55781E
55708-21030 Louver Sub-Assy, Cowl Top VentilatorCOWL TOP VENTILATOR [05.2004 -] ANT10 |
55708-21030 |
US $91.73 |
||
|
55782D
|
55782D
55709-21010 Louver, Cowl Top Ventilator, LhCOWL TOP VENTILATOR, LH [05.2004 -] ANT10 |
55709-21010 |
US $96.10 |
||
|
55797A
|
55797A
55797-21010 Seal, Cowl Water ExtractCOWL WATER EXTRACT [05.2004 -] ANT10 |
55797-21010 |
US $11.36 |
||
|
56111
|
56111
56111-21190
Glass, Windshield
[05.2004 - 04.2005] ANT10 *LAM,T=4.56,GREEN |
56111-21190 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[05.2004 -] ANT10 |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[05.2004 -] ANT10 |
56116-22050 |
from US $1.38 |
||
|
56117D
|
56117D
56117-21030 Dam, Windshield Glass AdhesiveWINDSHIELD GLASS ADHESIVE [05.2004 -] ANT10 L=3306 |
56117-21030 |
US $15.72 |
||
|
56118A
|
56118A
64813-52010
Dam Kit, Window Glass
[05.2004 -] ANT10 *D,L=638 |
64813-52010 |
— | ||
| replacement | |||||
|
56118A
|
56118A
56117-50140 Dam Kit, Back Window Glass[05.2004 -] ANT10 *D,L=638 |
56117-50140 |
from US $13.26 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9026903040
|
9026903040
90269-03040 RIVET |
90269-03040 |
from US $0.57 |
||
|
9046705145
|
9046705145
90467-05145 Retainer, Cowl Side Trim |
90467-05145 |
US $1.60 |
||
|
9046707043C0
|
9046707043C0
90467-07043-C0 Clip(For Rear Bumper Retainer) |
90467-07043-C0 |
from US $0.64 |
||
