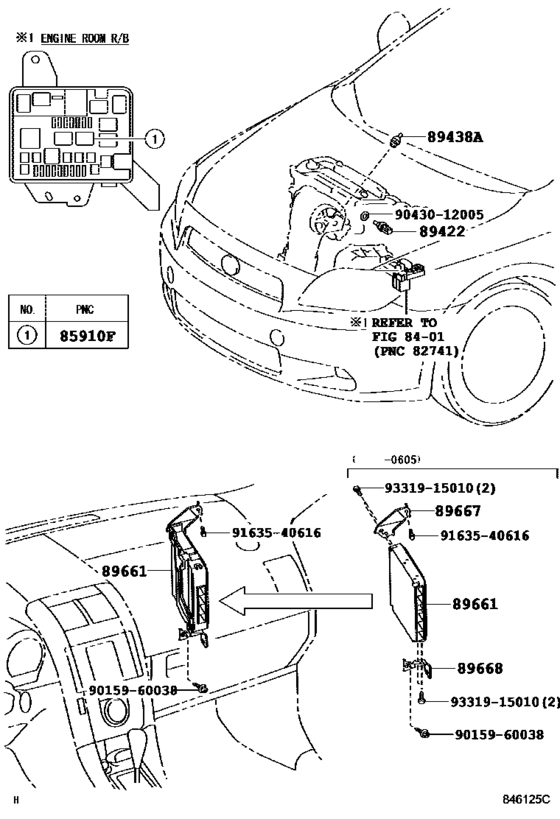

Electronic Fuel Injection System ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910F
|
85910F
90987-02022 Relay, Starter Cut[05.2004 - 07.2010] ANT10 |
90987-02022 |
from US $54 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[05.2004 -] ANT10 |
89422-33030 |
from US $36.63 |
||
|
89438A
|
89438A
89438-33010 Switch, Power Steering Oil Pressure[05.2004 - 07.2010] ANT10 |
89438-33010 |
from US $34.56 |
||
|
89661
|
89661
89661-21420 Computer, Engine Control[05.2004 - 06.2004] ANT10..4FC |
89661-21420 |
US $1,514.24 |
||
| replacement | |||||
|
89661
|
89661
89661-21421 Computer, Engine Control[05.2004 - 06.2004] ANT10..4FC |
89661-21421 |
US $1,514.24 |
||
|
89661
|
89661
89661-21421 Computer, Engine Control[07.2004 - 05.2005] ANT10..4FC |
89661-21421 |
US $1,514.24 |
||
|
89661
|
89661
89661-21460
Computer, Engine Control
[05.2005 - 05.2006] ANT10..4FC |
89661-21460 |
— | ||
|
89661
|
89661
89661-21480
Computer, Engine Control
[05.2006 - 04.2007] ANT10..4FC |
89661-21480 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-21521
Computer, Engine Control
[05.2006 - 04.2007] ANT10..4FC |
89661-21521 |
— | ||
|
89661
|
89661
89661-21500
Computer, Engine Control
[04.2007 - 04.2008] ANT10..4FC |
89661-21500 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-21521
Computer, Engine Control
[04.2007 - 04.2008] ANT10..4FC |
89661-21521 |
— | ||
|
89661
|
89661
89661-21520
Computer, Engine Control
[04.2008 - 07.2010] ANT10..4FC |
89661-21520 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-21521
Computer, Engine Control
[04.2008 - 07.2010] ANT10..4FC |
89661-21521 |
— | ||
|
89667
|
89667
89667-21030
Bracket, Engine Control Computer
[05.2004 - 05.2006] ANT10 |
89667-21030 |
— | ||
|
89668
|
89668
89668-21030
Bracket, Engine Control Computer, No.2
[05.2004 - 05.2006] ANT10 |
89668-21030 |
— | ||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.04 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
