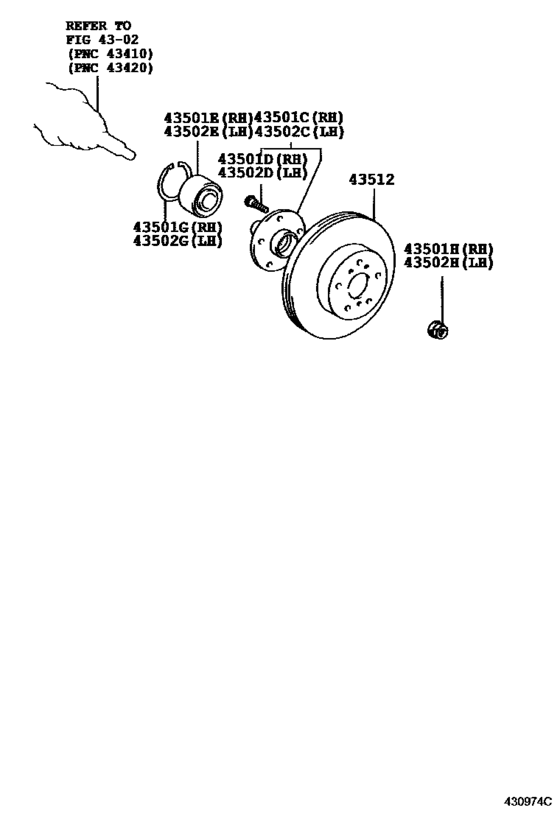

Front Axle Hub ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-21010 Hub Sub-Assy, Front Axle[05.2004 -] ANT10 |
43502-21010 |
from US $90.48 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[05.2004 -] ANT10 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[05.2004 -] ANT10 |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90363-40066 Bearing (For Axle Shaft)[05.2004 -] ANT10 |
90363-40066 |
from US $48.32 |
||
|
43501G
|
43501G
90521-79002 Ring, Snap (For Axle Shaft)[05.2004 - 07.2010] ANT10 |
90521-79002 |
US $2.24 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[05.2004 -] ANT10 |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-21010 Hub Sub-Assy, Front Axle[05.2004 -] ANT10 |
43502-21010 |
from US $90.48 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[05.2004 -] ANT10 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[05.2004 -] ANT10 |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90363-40066 Bearing (For Axle Shaft)[05.2004 -] ANT10 |
90363-40066 |
from US $48.32 |
||
|
43502G
|
43502G
90521-79002 Ring, Snap (For Axle Shaft)[05.2004 - 07.2010] ANT10 |
90521-79002 |
US $2.24 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[05.2004 -] ANT10 |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-20711 Disc, Front[05.2004 - 07.2010] ANT10 |
43512-20711 |
US $195.84 |
||
