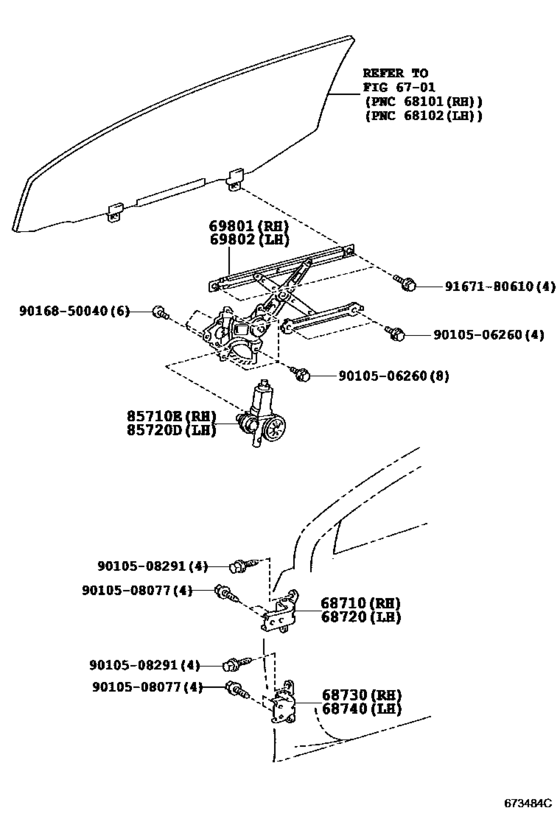

Front Door Window Regulator & Hinge ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12150
Hinge Assy, Front Door, Upper Rh
[05.2004 - 09.2006] ANT10 |
68710-12150 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[05.2004 - 09.2006] ANT10 |
68710-12151 |
from US $31.16 |
||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[10.2006 - 07.2010] ANT10 |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12150
Hinge Assy, Front Door, Upper Lh
[05.2004 - 09.2006] ANT10 |
68720-12150 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[05.2004 - 09.2006] ANT10 |
68720-12151 |
US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[10.2006 - 07.2010] ANT10 |
68720-12151 |
US $31.16 |
||
|
68730
|
68730
68730-33020 Hinge Assy, Front Door, Lower Rh[05.2004 - 09.2006] ANT10 |
68730-33020 |
US $49.36 |
||
| replacement | |||||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[05.2004 - 09.2006] ANT10 |
68730-33021 |
US $37.54 |
||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[10.2006 - 07.2010] ANT10 |
68730-33021 |
US $37.54 |
||
|
68740
|
68740
68740-33020
Hinge Assy, Front Door, Lower Lh
[05.2004 - 09.2006] ANT10 |
68740-33020 |
— | ||
| replacement | |||||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[05.2004 - 09.2006] ANT10 |
68740-33021 |
US $37.54 |
||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[10.2006 - 07.2010] ANT10 |
68740-33021 |
US $37.54 |
||
|
69801
|
69801
69801-52070 Regulator Sub-Assy, Front Door Window, Rh[05.2004 -] ANT10 |
69801-52070 |
US $93.24 |
||
|
69802
|
69802
69802-52070 Regulator Sub-Assy, Front Door Window, Lh[05.2004 -] ANT10 |
69802-52070 |
US $93.24 |
||
|
85710E
|
85710E
85710-35180 Motor Assy, Power Window Regulator, Rh[05.2006 - 04.2008] ANT10 BASE PACKAGE |
85710-35180 |
from US $207.92 |
||
|
85710E
|
85710E
85710-58010 Motor Assy, Power Window Regulator, Rh[05.2004 -] ANT10 |
85710-58010 |
from US $292.60 |
||
|
85720D
|
85720D
85720-35140 Motor Assy, Power Window Regulator, Rh[05.2006 - 04.2008] ANT10 BASE PACKAGE |
85720-35140 |
from US $218.60 |
||
|
85720D
|
85720D
85720-58010 Motor Assy, Power Window Regulator, Rh[05.2004 -] ANT10 |
85720-58010 |
US $292.60 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
US $1.44 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.84 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $0.96 |
||
