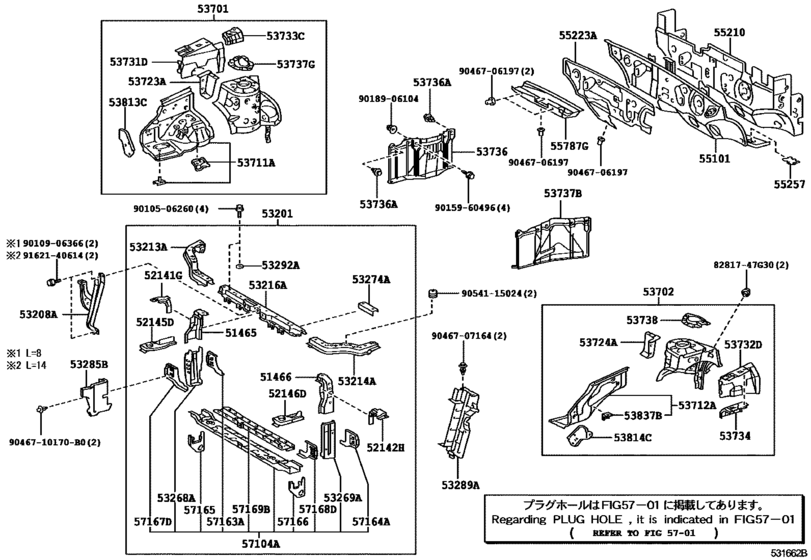

Front Fender Apron & Dash Panel ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51465
|
51465
51465-21010 Brace, Radiator Support, Upper Rh[05.2004 -] ANT10 |
51465-21010 |
US $23.59 |
||
|
51466
|
51466
51466-21010 Brace, Radiator Support, Upper Lh[05.2004 -] ANT10 |
51466-21010 |
from US $4.39 |
||
|
52141G
|
52141G
52141-21020 Stay, Front Bumper, RhFRONT BUMPER, RH [05.2004 -] ANT10 |
52141-21020 |
US $5.10 |
||
|
52142H
|
52142H
52142-21020 Stay, Front Bumper, LhFRONT BUMPER, LH [05.2004 -] ANT10 |
52142-21020 |
US $4.66 |
||
|
52145D
|
52145D
52145-21050
Bracket, Front Bumper Side Mounting, Rh
[05.2004 -] ANT10 |
52145-21050 |
— | ||
|
52146D
|
52146D
52146-21050 Bracket, Front Bumper Side Mounting, LhFRONT BUMPER SIDE MOUNTING, LH [05.2004 -] ANT10 |
52146-21050 |
US $9.17 |
||
|
53201
|
53201
53201-21060
Support Sub-Assy, Radiator
[05.2004 - 07.2006] ANT10 |
53201-21060 |
— | ||
| replacement | |||||
|
53201
|
53201
53201-21061
Support Sub-Assy, Radiator
[05.2004 - 07.2006] ANT10 |
53201-21061 |
— | ||
|
53201
|
53201
53201-21061
Support Sub-Assy, Radiator
[08.2006 -] ANT10 |
53201-21061 |
— | ||
|
53208A
|
53208A
53208-21020 Support Sub-Assy, Hood LockHOOD LOCK [05.2004 -] ANT10 |
53208-21020 |
US $39.89 |
||
|
53213A
|
53213A
53213-21020 Support, Radiator, Upper RhRADIATOR, UPPER RH [05.2004 -] ANT10 |
53213-21020 |
US $62.46 |
||
|
53214A
|
53214A
53214-21020 Support, Radiator, Upper LhRADIATOR, UPPER LH [05.2004 -] ANT10 |
53214-21020 |
US $62.46 |
||
|
53216A
|
53216A
53216-20240 Support, Radiator, Upper[05.2004 -] ANT10 |
53216-20240 |
US $75.71 |
||
|
53268A
|
53268A
53268-20110 Reinforcement, Radiator Mounting, Rh[05.2004 - 07.2006] ANT10 |
53268-20110 |
US $18.40 |
||
|
53269A
|
53269A
53269-63010 Reinforcement, Radiator Mounting, Lh[05.2004 - 07.2006] ANT10 |
53269-63010 |
US $17.76 |
||
|
53274A
|
53274A
53274-21010 Reinforcement, Radiator Support, Lh[05.2004 -] ANT10 |
53274-21010 |
US $9.17 |
||
|
53285B
|
53285B
53285-21030 Seal, Radiator Side Air, No.1RADIATOR SIDE AIR, NO.1 [05.2004 -] ANT10 |
53285-21030 |
US $19.80 |
||
|
53289A
|
53289A
53289-21010 Cover, Radiator Support OpeningRADIATOR SUPPORT OPENING [05.2004 -] ANT10 |
53289-21010 |
US $32.61 |
||
|
53292A
|
53292A
53882-30040 Seal, Radiator Support, Upper[05.2004 -] ANT10 |
53882-30040 |
US $1.10 |
||
|
53701
|
53701
53701-21030
Apron Sub-Assy, Front Fender, Rh
[05.2004 - 07.2010] ANT10 |
53701-21030 |
— | ||
|
53702
|
53702
53702-21040
Apron Sub-Assy, Front Fender, Lh
[05.2004 - 07.2010] ANT10 |
53702-21040 |
— | ||
|
53711A
|
53711A
53711-21901
Apron, Front Fender, W/support, Front Rh
[05.2004 -] ANT10 |
53711-21901 |
— | ||
|
53712A
|
53712A
53712-21901
Apron, Front Fender, W/support, Front Lh
[05.2004 -] ANT10 |
53712-21901 |
— | ||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[05.2004 -] ANT10 |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[05.2004 -] ANT10 |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-21010 Member, Front Apron To Cowl Side, Upper Rh[05.2004 -] ANT10 |
53731-21010 |
US $17.76 |
||
|
53732D
|
53732D
53732-21010 Member, Front Apron To Cowl Side, Upper Lh[05.2004 -] ANT10 |
53732-21010 |
US $17.76 |
||
|
53733C
|
53733C
53733-21010 Patch, Front Fender Apron[05.2004 -] ANT10 |
53733-21010 |
US $13.54 |
||
|
53734
|
53734
53734-21010 Patch, Front Fender Apron, No.4[05.2004 -] ANT10 |
53734-21010 |
US $13.54 |
||
|
53736
|
53736
53736-32060 Seal, Front Fender Apron, Rh[05.2004 -] ANT10 |
53736-32060 |
US $55.47 |
||
|
53736A
|
53736A
90467-07164 Clip(For Front Fender Apron Seal)[05.2004 -] ANT10 |
90467-07164 |
from US $1.29 |
||
|
53737B
|
53737B
53737-32040 Seal, Front Fender Apron, Lh[05.2004 -] ANT10 |
53737-32040 |
US $70.06 |
||
|
53737G
|
53737G
53737-21020 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [05.2004 -] ANT10 |
53737-21020 |
US $14.85 |
||
|
53738
|
53738
53738-21030 Plate, Front Apron To Cowl Side Member, LhFRONT APRON TO COWL SIDE MEMBER, LH [05.2004 -] ANT10 |
53738-21030 |
US $14.85 |
||
|
53813C
|
53813C
53813-21010 Extension, Front Fender, RhFRONT FENDER, RH [05.2004 -] ANT10 |
53813-21010 |
US $6.84 |
||
|
53814C
|
53814C
53814-21010 Extension, Front Fender, LhFRONT FENDER, LH [05.2004 - 01.2008] ANT10 |
53814-21010 |
US $7.57 |
||
|
53837B
|
53837B
53837-44010 Bracket, Front Side Panel, No.2[05.2004 -] ANT10 |
53837-44010 |
US $3.93 |
||
|
55101
|
55101
55101-21160 Panel Sub-Assy, DashDASH [05.2004 - 07.2010] ANT10..4FC |
55101-21160 |
US $362.54 |
||
|
55210
|
55210
55210-21040 Insulator Assy, Dash PanelDASH PANEL [05.2004 -] ANT10 |
55210-21040 |
US $171.81 |
||
|
55223A
|
55223A
55223-21010 Insulator, Dash Panel, OuterDASH PANEL, OUTER [05.2004 -] ANT10 |
55223-21010 |
US $58.09 |
||
|
55257
|
55257
55257-13010 Cover, Dash Panel Opening[05.2004 -] ANT10 |
55257-13010 |
US $2.91 |
||
|
55787G
|
55787G
55787-21010 Insulator, Cowl Top Panel, No.1COWL TOP PANEL, NO.1 [05.2004 -] ANT10 |
55787-21010 |
US $50.38 |
||
|
57104A
|
57104A
57104-21040 Member Sub-Assy, Front Cross[05.2004 - 07.2006] ANT10 |
57104-21040 |
US $362.54 |
||
| replacement | |||||
|
57104A
|
57104A
57104-21041
Member Sub-Assy, Front Cross
[05.2004 - 07.2006] ANT10 |
57104-21041 |
— | ||
|
57104A
|
57104A
57104-21041
Member Sub-Assy, Front Cross
[08.2006 -] ANT10 |
57104-21041 |
— | ||
|
57163A
|
57163A
57163-32050 Reinforcement, Front Crossmember, No.1 Rh[05.2004 - 07.2006] ANT10 |
57163-32050 |
US $13.40 |
||
|
57164A
|
57164A
57164-32050 Reinforcement, Front Crossmember, No.1 Lh[05.2004 - 07.2006] ANT10 |
57164-32050 |
US $13.40 |
||
|
57165
|
57165
57165-68010 Reinforcement, Front Crossmember, Lower Rh[05.2004 - 07.2006] ANT10 |
57165-68010 |
US $17.76 |
||
|
57166
|
57166
57166-68010 Reinforcement, Front Crossmember, Lower Lh[05.2004 - 07.2006] ANT10 |
57166-68010 |
US $17.76 |
||
|
57167D
|
57167D
57167-32080 Reinforcement, Front Crossmember Side, Rh[05.2004 - 07.2006] ANT10 |
57167-32080 |
US $13.10 |
||
|
57168D
|
57168D
57168-32080 Reinforcement, Front Crossmember Side, Lh[05.2004 - 07.2006] ANT10 |
57168-32080 |
US $13.25 |
||
|
57169B
|
57169B
57169-21020 Reinforcement, Front Crossmember, No.4FRONT CROSSMEMBER, NO.4 [05.2004 - 07.2006] ANT10 |
57169-21020 |
US $74.26 |
||
|
8281747G30
|
8281747G30
82817-47G30 Grommet(For Hood Lock Control Cable)WIRE |
82817-47G30 |
US $2.36 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010906366
|
9010906366
90109-06366 New Genuine Part |
90109-06366 |
US $0.73 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.68 |
||
|
9018906104
|
9018906104
90189-06104 CLIP |
90189-06104 |
from US $1.40 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
from US $1.54 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.29 |
||
|
9046710170B0
|
9046710170B0
90467-10170-B0 Clip(For Back Door Trim Board) |
90467-10170-B0 |
US $2.56 |
||
|
9054115024
|
9054115024
90541-15024 Cushion, Radiator Support |
90541-15024 |
from US $3.20 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.84 |
||
