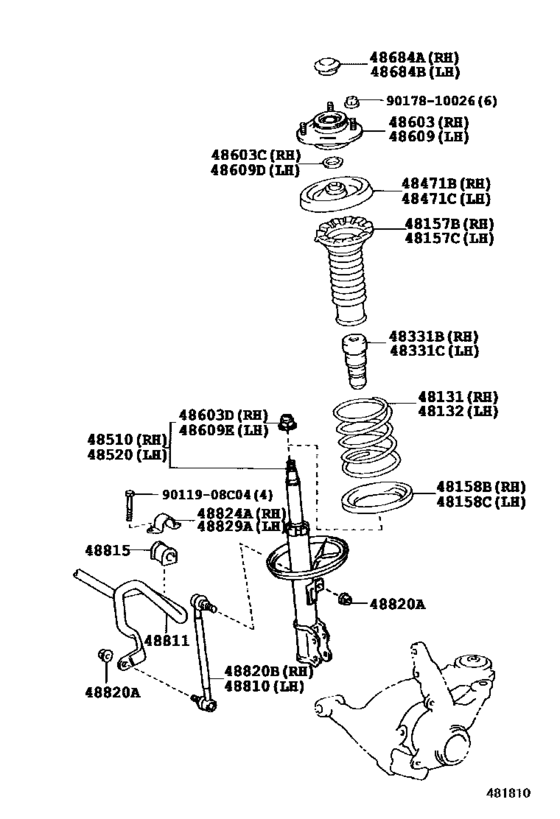

Front Spring & Shock Absorber ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-21340 Spring, Front Coil, Rh[05.2004 - 03.2008] ANT10..4FC |
48131-21340 |
US $103.38 |
||
| replacement | |||||
|
48131
|
48131
48131-21341 Spring, Front Coil, Rh[05.2004 - 03.2008] ANT10..4FC |
48131-21341 |
US $85.90 |
||
|
48131
|
48131
48131-21341 Spring, Front Coil, Rh[04.2008 -] ANT10..4FC |
48131-21341 |
US $85.90 |
||
|
48132
|
48132
48131-21340 Spring, Front Coil, Rh[05.2004 - 03.2008] ANT10..4FC |
48131-21340 |
US $103.38 |
||
| replacement | |||||
|
48132
|
48132
48131-21341 Spring, Front Coil, Rh[05.2004 - 03.2008] ANT10..4FC |
48131-21341 |
US $85.90 |
||
|
48132
|
48132
48131-21341 Spring, Front Coil, Rh[04.2008 -] ANT10..4FC |
48131-21341 |
US $85.90 |
||
|
48157B
|
48157B
48157-12080 Insulator, Front Coil Spring, Upper[05.2004 -] ANT10 |
48157-12080 |
from US $16.22 |
||
|
48157C
|
48157C
48157-12080 Insulator, Front Coil Spring, Upper[05.2004 -] ANT10 |
48157-12080 |
from US $16.22 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2004 -] ANT10 |
48158-47010 |
from US $10.55 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2004 -] ANT10 |
48158-47010 |
from US $10.55 |
||
|
48331B
|
48331B
48331-12210 Bumper, Front Spring, Rh[05.2004 - 02.2006] ANT10 |
48331-12210 |
from US $8.80 |
||
|
48331B
|
48331B
48331-68010 Bumper, Front Spring, Rh[03.2006 -] ANT10 |
48331-68010 |
from US $13.40 |
||
|
48331C
|
48331C
48331-12210 Bumper, Front Spring, Rh[05.2004 - 02.2006] ANT10 |
48331-12210 |
from US $8.80 |
||
|
48331C
|
48331C
48331-68010 Bumper, Front Spring, Rh[03.2006 -] ANT10 |
48331-68010 |
from US $13.40 |
||
|
48471B
|
48471B
48044-12100 Seat, Front Coil Spring, Upper[05.2004 -] ANT10 |
48044-12100 |
from US $10.74 |
||
|
48471C
|
48471C
48044-12100 Seat, Front Coil Spring, Upper[05.2004 -] ANT10 |
48044-12100 |
from US $10.74 |
||
|
48510
|
48510
48510-80142
Absorber Assy, Shock, Front Rh
[05.2004 -] ANT10 MARK 48510-21160 |
48510-80142 |
— | ||
|
48520
|
48520
48520-29835
Absorber Assy, Shock, Front Lh
[05.2004 -] ANT10 MARK 48520-21160 |
48520-29835 |
— | ||
|
48603
|
48603
48609-21030 Support Sub-Assy, Front Suspension, Rh[05.2004 -] ANT10 |
48609-21030 |
from US $66.12 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[05.2004 -] ANT10 |
90303-22002 |
from US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2004 -] ANT10 |
90179-14015 |
from US $1.09 |
||
|
48609
|
48609
48609-21030 Support Sub-Assy, Front Suspension, Rh[05.2004 -] ANT10 |
48609-21030 |
from US $66.12 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[05.2004 -] ANT10 |
90303-22002 |
from US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2004 -] ANT10 |
90179-14015 |
from US $1.09 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[05.2004 -] ANT10 |
48684-52010 |
from US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[05.2004 -] ANT10 |
48684-52010 |
from US $9.60 |
||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[05.2004 -] ANT10 |
48820-47010 |
from US $75.74 |
||
|
48811
|
48811
48811-21050 Bar, Stabilizer, Front[05.2004 -] ANT10 |
48811-21050 |
US $128.13 |
||
|
48815
|
48815
48815-21020 Bush, Front Stabilizer Bar, No.1[05.2004 -] ANT10 |
48815-21020 |
from US $14.40 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[05.2004 -] ANT10 |
90179-12151 |
from US $0.94 |
||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[05.2004 -] ANT10 |
48820-47010 |
from US $75.74 |
||
|
48824A
|
48824A
48824-20120 Bracket, Front Stabilizer, No.1 Rh[05.2004 -] ANT10 |
48824-20120 |
US $15.81 |
||
|
48829A
|
48829A
48824-20120 Bracket, Front Stabilizer, No.1 Rh[05.2004 -] ANT10 |
48824-20120 |
US $15.81 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017810026
|
9017810026
90178-10026 Nut(For Backing Plate To Rear Axle Housing Setting) |
90178-10026 |
US $2.24 |
||
