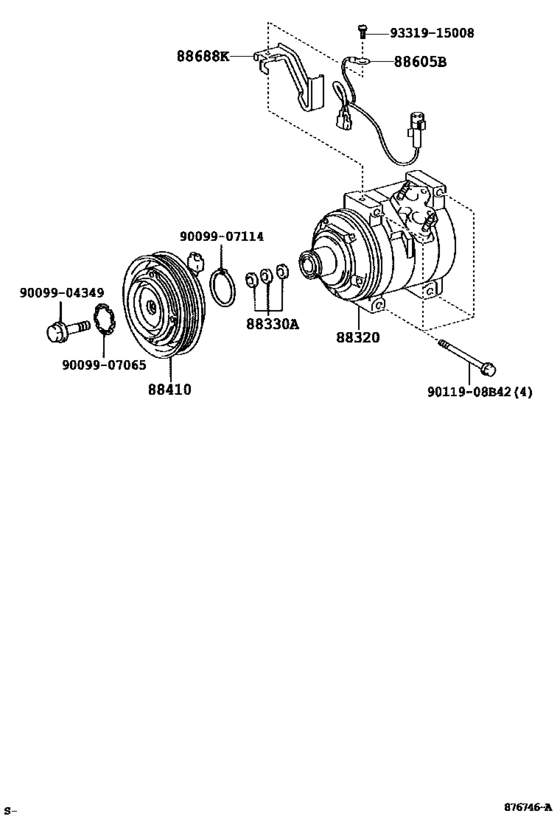

Heating & Air Conditioning - Compressor ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-21100
Compressor Assy, Cooler
[05.2004 -] ANT10 |
88320-21100 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.2004 -] ANT10 |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-21030 Clutch Assy, MagnetMAGNET [05.2004 - 05.2006] ANT10 |
88410-21030 |
US $582.40 |
||
|
88410
|
88410
88410-21040
Clutch Assy, Magnet
[05.2006 -] ANT10 |
88410-21040 |
— | ||
|
88605B
|
88605B
88605-21010
Harness Sub-Assy, Air Conditioner Wiring
[05.2004 -] ANT10 |
88605-21010 |
— | ||
|
88688K
|
88688K
88688-21090
Bracket, Cooler Compressor
[05.2004 -] ANT10 |
88688-21090 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
