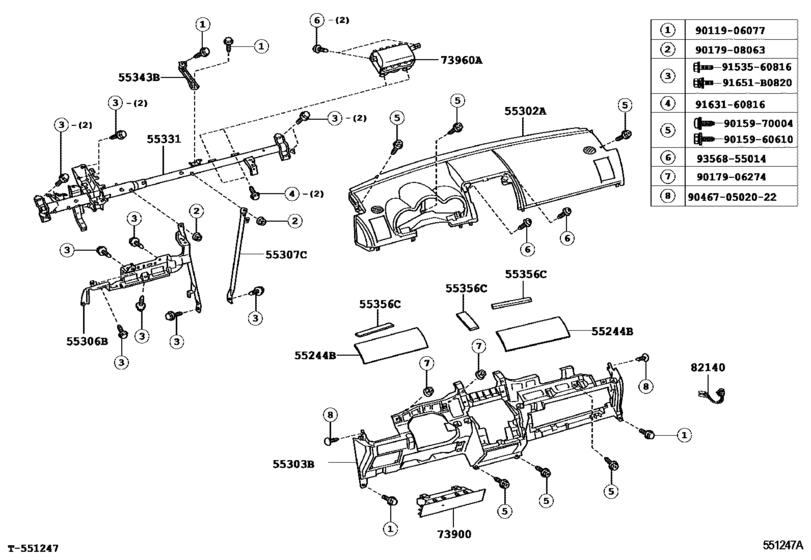

Instrument Panel & Glove Compartment ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55244B
|
55244B
55244-63010 Silencer, Front Panel Side, No.2[05.2004 -] ANT10 |
55244-63010 |
US $6.41 |
||
|
55302A
|
55302A
55302-21020-B0 Panel Sub-Assy, Instrument, Upper[05.2004 - 04.2007] ANT10 DK.GRAY,TRIM1# |
55302-21020-B0 |
US $746.93 |
||
| replacement | |||||
|
55302A
|
55302A
55302-21021-B0
Panel Sub-Assy, Instrument, Upper
[05.2004 - 04.2007] ANT10 DK.GRAY,TRIM1# |
55302-21021-B0 |
— | ||
|
55302A
|
55302A
55302-21021-B0
Panel Sub-Assy, Instrument, Upper
[04.2007 - 07.2010] ANT10 DK.GRAY,TRIM1# |
55302-21021-B0 |
— | ||
|
55303B
|
55303B
55303-21020-B0 Panel Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [05.2004 - 07.2010] ANT10 DK.GRAY,TRIM1# |
55303-21020-B0 |
US $275.18 |
||
|
55306B
|
55306B
55306-21030 Brace Sub-Assy, Instrument Panel To CowlINSTRUMENT PANEL TO COWL [05.2004 -] ANT10 |
55306-21030 |
US $72.36 |
||
|
55307C
|
55307C
55307-21010 Brace Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [05.2004 -] ANT10 |
55307-21010 |
US $24.17 |
||
|
55331
|
55331
55330-21050 Reinforcement, Instrument PanelINSTRUMENT PANEL [05.2004 -] ANT10 |
55330-21050 |
US $198.02 |
||
|
55343B
|
55343B
55343-21010 Brace, Instrument Panel To Cowl, Center[05.2004 -] ANT10 |
55343-21010 |
US $11.21 |
||
|
55356C
|
55356C
55356-20060 Cushion, Instrument Panel, No.2[05.2004 -] ANT10 |
55356-20060 |
US $2.62 |
||
|
73900
|
73900
73900-21020-B0
Air Bag Assy, Instrument Panel, Lower No.1
[05.2004 - 07.2010] ANT10 DK.GRAY,TRIM1# |
73900-21020-B0 |
— | ||
|
73960A
|
73960A
73960-21020
Air Bag Assy, Instrument Panel Passenger W/o Door
[05.2004 - 05.2006] ANT10 |
73960-21020 |
— | ||
|
73960A
|
73960A
73960-21021
Air Bag Assy, Instrument Panel Passenger W/o Door
[05.2006 - 02.2007] ANT10 |
73960-21021 |
— | ||
|
82140
|
82140
82140-30020 Wire Assy, Instrument Panel[05.2004 -] ANT10 |
82140-30020 |
US $9.61 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9011906077
|
9011906077
90119-06077 Bolt |
90119-06077 |
US $1.28 |
||
|
9015960610
|
9015960610
90159-60610 New Genuine Part |
90159-60610 |
US $0.73 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908063
|
9017908063
90179-08063 NUT |
90179-08063 |
US $2.56 |
||
|
9153560816
|
9153560816
91535-60816 BOLT WWASHER |
91535-60816 |
US $1.05 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
US $2.56 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
904670502022
|
904670502022
90467-05020-22 Clip, Instrument Panel (Black) |
90467-05020-22 |
US $0.96 |
||
