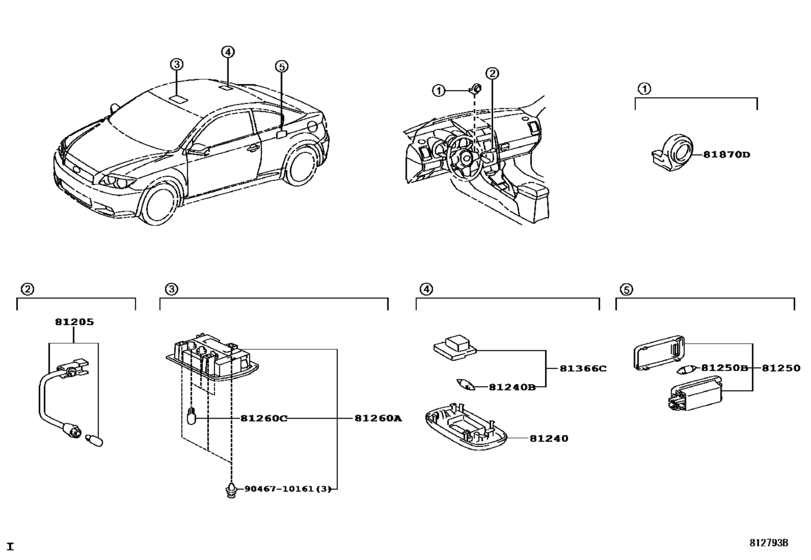

Interior Lamp ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81205
|
81205
81850-21010 Lamp Sub-Assy, Ash ReceptacleASH RECEPTACLE [05.2004 - 04.2007] ANT10 |
81850-21010 |
US $35.67 |
||
|
81205
|
81205
81850-21011
Lamp Sub-Assy, Ash Receptacle
[04.2007 -] ANT10 |
81850-21011 |
— | ||
|
81240
|
81240
81240-68010-B0 Lamp Assy, Room, No.1[05.2004 - 07.2010] ANT10 LT.GRAY,TRIM1# |
81240-68010-B0 |
US $33.20 |
||
|
81240B
|
81240B
90981-14011 Bulb, Room Lamp, No.1[05.2004 -] ANT10 12V 8W |
90981-14011 |
from US $2.16 |
||
|
81250
|
81250
81250-48010 Lamp Assy, Room, No.2[05.2004 -] ANT10 |
81250-48010 |
from US $27.61 |
||
|
81250B
|
81250B
99132-13050 Bulb(For Courtesy Lamp)[05.2004 -] ANT10 12V 5W |
99132-13050 |
from US $2.40 |
||
| replacement | |||||
|
81250B
|
81250B
00234-13050 Bulb,Room Lamp[05.2004 -] ANT10 12V 5W |
00234-13050 |
US $2.82 |
||
|
81260A
|
81260A
81260-21050-B0
Lamp Assy, Map
[05.2004 - 07.2010] ANT10 LT.GRAY,TRIM1# |
81260-21050-B0 |
— | ||
|
81260A
|
81260A
81260-21060-B0
Lamp Assy, Map
[05.2006 - 04.2008] ANT10 BASE PACKAGE,LT.GRAY,TRIM1# |
81260-21060-B0 |
— | ||
|
81260C
|
81260C
99132-12050 Bulb (12V 5W)[05.2004 -] ANT10 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81260C
|
81260C
90080-81053 Bulb(For Clearance Lamp)[05.2004 -] ANT10 12V 5W |
90080-81053 |
US $1.15 |
||
|
81366C
|
81366C
81366-68010 Base, Room Lamp Switch[05.2004 - 07.2010] ANT10 |
81366-68010 |
from US $12.15 |
||
|
81870D
|
81870D
81870-21010
Lamp Assy, Key Cylinder
[05.2006 - 04.2008] ANT10 BASE PACKAGE |
81870-21010 |
— | ||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
