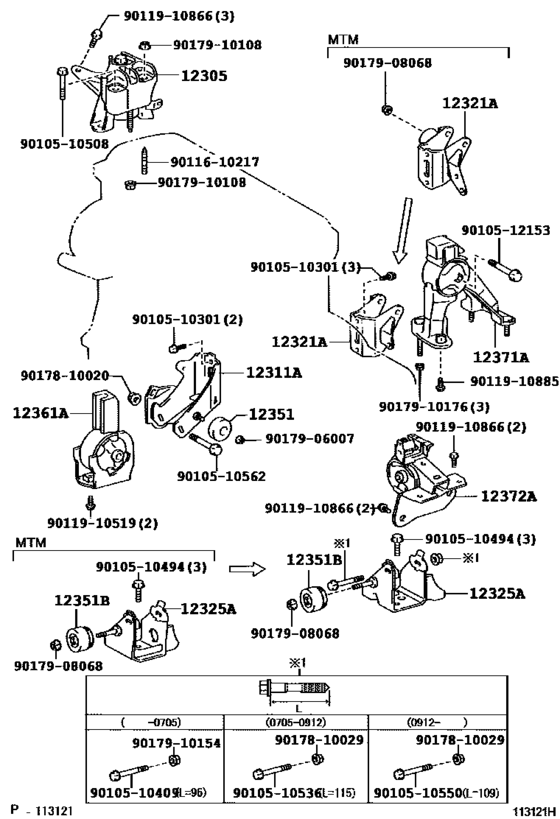

Mounting ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-28220 Insulator Sub-Assy, Engine Mounting, Rh[05.2004 -] 2AZFE..ANT10 |
12305-28220 |
US $205.92 |
||
|
12311A
|
12311A
12311-28120 Bracket, Engine Mounting, Front(For Transverse Engine)[05.2004 -] 2AZFE..ANT10 |
12311-28120 |
US $53.99 |
||
|
12321A
|
12321A
12321-28160 Bracket, Engine Mounting, Rear(For Transverse Engine)[05.2004 -] 2AZFE..ANT10..4FC |
12321-28160 |
US $54.69 |
||
|
12325A
|
12325A
12325-28250 Bracket, Engine Mounting, Lh(For Transverse Engine)ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) [05.2004 -] 2AZFE..ANT10..4FC |
12325-28250 |
US $34.07 |
||
|
12351
|
12351
12351-28010 Damper, Engine Mounting[05.2004 -] 2AZFE..ANT10 |
12351-28010 |
US $32.83 |
||
|
12351B
|
12351B
12351-27050 Damper, Engine Mounting[05.2004 -] 2AZFE..ANT10..4FC |
12351-27050 |
US $51.54 |
||
|
12361A
|
12361A
12361-28210 Insulator, Engine Mounting, Front(For Transverse Engine)ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) [05.2004 -] 2AZFE..ANT10..4FC |
12361-28210 |
US $112.11 |
||
|
12371A
|
12371A
12371-28110
Insulator, Engine Mounting, Rear
[05.2004 - 10.2009] 2AZFE..ANT10..4FC |
12371-28110 |
— | ||
| replacement | |||||
|
12371A
|
12371A
12371-28111 Insulator, Engine Mounting, Rear[05.2004 - 10.2009] 2AZFE..ANT10..4FC |
12371-28111 |
US $148.51 |
||
|
12371A
|
12371A
12371-28111 Insulator, Engine Mounting, Rear[11.2009 -] 2AZFE..ANT10..4FC |
12371-28111 |
US $148.51 |
||
|
12372A
|
12372A
12306-28090 Insulator, Engine Mounting, Lh(For Transverse Engine)[05.2004 - 10.2007] 2AZFE..ANT10 |
12306-28090 |
US $113.57 |
||
| replacement | |||||
|
12372A
|
12372A
12306-28091 Insulator, Engine Mounting, Lh(For Transverse Engine)[05.2004 - 10.2007] 2AZFE..ANT10 |
12306-28091 |
US $123.76 |
||
|
12372A
|
12372A
12306-28091 Insulator, Engine Mounting, Lh(For Transverse Engine)[11.2007 -] 2AZFE..ANT10 |
12306-28091 |
US $123.76 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510409
|
9010510409
90105-10409 New Genuine Part |
90105-10409 |
US $4.32 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510508
|
9010510508
90105-10508 New Genuine Part |
90105-10508 |
US $3.89 |
||
|
9010510536
|
9010510536
90105-10536 New Genuine Part |
90105-10536 |
US $3.04 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010510562
|
9010510562
90105-10562 Bolt, No.2(For Alternator) |
90105-10562 |
US $3.84 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.28 |
||
|
9011610217
|
9011610217
90116-10217 New Genuine Part |
90116-10217 |
US $4.89 |
||
|
9011910519
|
9011910519
90119-10519 New Genuine Part |
90119-10519 |
US $3.20 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $1.05 |
||
|
9011910885
|
9011910885
90119-10885 New Genuine Part |
90119-10885 |
US $4.16 |
||
|
9017810020
|
9017810020
90178-10020 New Genuine Part |
90178-10020 |
US $2.24 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.96 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910154
|
9017910154
90179-10154 NUT |
90179-10154 |
from US $1.01 |
||
|
9017910176
|
9017910176
90179-10176 NUT |
90179-10176 |
US $2.40 |
||
