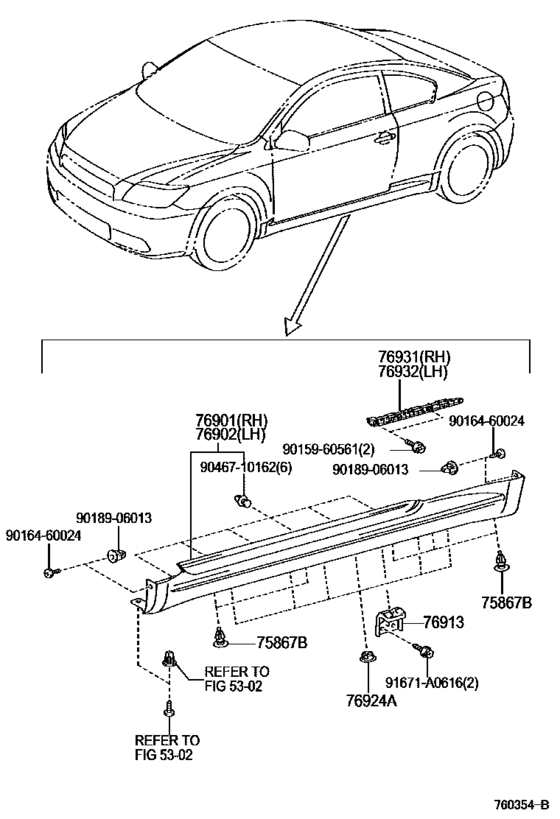

Mudguard & Spoiler ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75867B
|
75867B
90467-08180 Clip(For Front Bumper Retainer)[05.2004 -] ANT10 |
90467-08180 |
from US $1.40 |
||
|
76901
|
76901
76901-21050-A0 Mudguard Sub-Assy, Side, RhSIDE, RH [05.2004 - 07.2010] ANT10 SUPER WHITE 2,040 |
76901-21050-A0 |
US $476.11 |
||
|
76901
|
76901
76901-21050-A1
Mudguard Sub-Assy, Side, Rh
[01.2007 - 03.2007] ANT10 SPECIAL EDITION,WHITE PEARL CS.,070 |
76901-21050-A1 |
— | ||
|
76901
|
76901
76901-21050-B0
Mudguard Sub-Assy, Side, Rh
[05.2004 - 07.2010] ANT10 DK.GRAY MC.,1E0 |
76901-21050-B0 |
— | ||
|
76901
|
76901
76901-21050-B1
Mudguard Sub-Assy, Side, Rh
[05.2004 - 05.2005] ANT10 SILVER M.M.,1E7 |
76901-21050-B1 |
— | ||
|
76901
|
76901
76901-21050-B2
Mudguard Sub-Assy, Side, Rh
[05.2005 - 07.2010] ANT10 SILVER ME.,1F7 |
76901-21050-B2 |
— | ||
|
76901
|
76901
76901-21050-B3
Mudguard Sub-Assy, Side, Rh
[02.2008 - 03.2008] ANT10 SPECIAL EDITION,DK. GRAY M.M.,1E9 |
76901-21050-B3 |
— | ||
|
76901
|
76901
76901-21050-C0
Mudguard Sub-Assy, Side, Rh
[05.2004 - 07.2010] ANT10 BLACK MC.,209 |
76901-21050-C0 |
— | ||
|
76901
|
76901
76901-21050-C1
Mudguard Sub-Assy, Side, Rh
[02.2009 - 03.2009] ANT10 SPECIAL EDITION,BLACK,202 |
76901-21050-C1 |
— | ||
|
76901
|
76901
76901-21050-D0
Mudguard Sub-Assy, Side, Rh
[05.2004 - 04.2007] ANT10 BORDEAUX MC.,3P2 |
76901-21050-D0 |
— | ||
|
76901
|
76901
76901-21050-D1
Mudguard Sub-Assy, Side, Rh
[03.2005 - 04.2005] ANT10 SPECIAL EDITION,SUPER RED 5,3P0 |
76901-21050-D1 |
— | ||
|
76901
|
76901
76901-21050-D2
Mudguard Sub-Assy, Side, Rh
[04.2007 - 07.2010] ANT10 BLACKISH RED MC.,3R0 |
76901-21050-D2 |
— | ||
|
76901
|
76901
76901-21050-J0 Mudguard Sub-Assy, Side, RhSIDE, RH [05.2004 - 05.2005] ANT10 DK.BLUE M.M.,8P4 |
76901-21050-J0 |
US $573.66 |
||
|
76901
|
76901
76901-21050-J1 Mudguard Sub-Assy, Side, RhSIDE, RH [05.2004 - 04.2007] ANT10 LT.BLUE ME.,8Q6 |
76901-21050-J1 |
US $757.12 |
||
|
76901
|
76901
76901-21050-J2
Mudguard Sub-Assy, Side, Rh
[05.2005 - 08.2007] ANT10 DK.BLUE MC.,8S6 |
76901-21050-J2 |
— | ||
|
76901
|
76901
76901-21050-J3
Mudguard Sub-Assy, Side, Rh
[03.2006 - 04.2006] ANT10 SPECIAL EDITION,BLUE M.M.,8Q1 |
76901-21050-J3 |
— | ||
|
76901
|
76901
76901-21050-J4
Mudguard Sub-Assy, Side, Rh
[04.2007 - 07.2010] ANT10 LT.BLUE M.M.,8S7 |
76901-21050-J4 |
— | ||
|
76901
|
76901
76901-21050-J5
Mudguard Sub-Assy, Side, Rh
[08.2007 - 04.2009] ANT10 DK.BLUE MC.,8T5 |
76901-21050-J5 |
— | ||
|
76901
|
76901
76901-21050-J6
Mudguard Sub-Assy, Side, Rh
[01.2010 - 03.2010] ANT10 SPECIAL EDITION,BLUE ME.,8P1 |
76901-21050-J6 |
— | ||
|
76902
|
76902
76902-21050-A0 Mudguard Sub-Assy, Side, LhSIDE, LH [05.2004 - 07.2010] ANT10 SUPER WHITE 2,040 |
76902-21050-A0 |
US $476.11 |
||
|
76902
|
76902
76902-21050-A1
Mudguard Sub-Assy, Side, Lh
[01.2007 - 03.2007] ANT10 SPECIAL EDITION,WHITE PEARL CS.,070 |
76902-21050-A1 |
— | ||
|
76902
|
76902
76902-21050-B0 Mudguard Sub-Assy, Side, LhSIDE, LH [05.2004 - 07.2010] ANT10 DK.GRAY MC.,1E0 |
76902-21050-B0 |
from US $476.11 |
||
|
76902
|
76902
76902-21050-B1
Mudguard Sub-Assy, Side, Lh
[05.2004 - 05.2005] ANT10 SILVER M.M.,1E7 |
76902-21050-B1 |
— | ||
|
76902
|
76902
76902-21050-B2
Mudguard Sub-Assy, Side, Lh
[05.2005 - 07.2010] ANT10 SILVER ME.,1F7 |
76902-21050-B2 |
— | ||
|
76902
|
76902
76902-21050-B3
Mudguard Sub-Assy, Side, Lh
[02.2008 - 03.2008] ANT10 SPECIAL EDITION,DK. GRAY M.M.,1E9 |
76902-21050-B3 |
— | ||
|
76902
|
76902
76902-21050-C0
Mudguard Sub-Assy, Side, Lh
[05.2004 - 07.2010] ANT10 BLACK MC.,209 |
76902-21050-C0 |
— | ||
|
76902
|
76902
76902-21050-C1
Mudguard Sub-Assy, Side, Lh
[02.2009 - 03.2009] ANT10 SPECIAL EDITION,BLACK,202 |
76902-21050-C1 |
— | ||
|
76902
|
76902
76902-21050-D0
Mudguard Sub-Assy, Side, Lh
[05.2004 - 04.2007] ANT10 BORDEAUX MC.,3P2 |
76902-21050-D0 |
— | ||
|
76902
|
76902
76902-21050-D1
Mudguard Sub-Assy, Side, Lh
[03.2005 - 04.2005] ANT10 SPECIAL EDITION,SUPER RED 5,3P0 |
76902-21050-D1 |
— | ||
|
76902
|
76902
76902-21050-D2
Mudguard Sub-Assy, Side, Lh
[04.2007 - 07.2010] ANT10 BLACKISH RED MC.,3R0 |
76902-21050-D2 |
— | ||
|
76902
|
76902
76902-21050-J0 Mudguard Sub-Assy, Side, LhSIDE, LH [05.2004 - 05.2005] ANT10 DK.BLUE M.M.,8P4 |
76902-21050-J0 |
US $573.66 |
||
|
76902
|
76902
76902-21050-J1
Mudguard Sub-Assy, Side, Lh
[05.2004 - 04.2007] ANT10 LT.BLUE ME.,8Q6 |
76902-21050-J1 |
— | ||
|
76902
|
76902
76902-21050-J2
Mudguard Sub-Assy, Side, Lh
[05.2005 - 08.2007] ANT10 DK.BLUE MC.,8S6 |
76902-21050-J2 |
— | ||
|
76902
|
76902
76902-21050-J3
Mudguard Sub-Assy, Side, Lh
[03.2006 - 04.2006] ANT10 SPECIAL EDITION,BLUE M.M.,8Q1 |
76902-21050-J3 |
— | ||
|
76902
|
76902
76902-21050-J4
Mudguard Sub-Assy, Side, Lh
[04.2007 - 07.2010] ANT10 LT.BLUE M.M.,8S7 |
76902-21050-J4 |
— | ||
|
76902
|
76902
76902-21050-J5
Mudguard Sub-Assy, Side, Lh
[08.2007 - 04.2009] ANT10 DK.BLUE MC.,8T5 |
76902-21050-J5 |
— | ||
|
76902
|
76902
76902-21050-J6
Mudguard Sub-Assy, Side, Lh
[01.2010 - 03.2010] ANT10 SPECIAL EDITION,BLUE ME.,8P1 |
76902-21050-J6 |
— | ||
|
76913
|
76913
76903-21010 Mudguard, Front Door, RhFRONT DOOR, RH [05.2004 -] ANT10 |
76903-21010 |
US $13.10 |
||
|
76924A
|
76924A
76924-52021 Retainer, Side Mudguard[05.2004 - 07.2010] ANT10 |
76924-52021 |
from US $1.15 |
||
|
76931
|
76931
76931-21020 Retainer, Side Mudguard, No.3SIDE MUDGUARD, NO.3 [05.2004 -] ANT10 |
76931-21020 |
US $45.14 |
||
|
76932
|
76932
76932-21020 Retainer, Side Mudguard, No.4SIDE MUDGUARD, NO.4 [05.2004 -] ANT10 |
76932-21020 |
US $45.14 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.66 |
||
|
9015960561
|
9015960561
90159-60561 SCREW WWASHER |
90159-60561 |
from US $0.72 |
||
|
9016460024
|
9016460024
90164-60024 SCREW, BINDING |
90164-60024 |
from US $0.92 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.76 |
||
|
9046710162
|
9046710162
90467-10162 Clip, Front Wheel Opening Extensoion |
90467-10162 |
from US $0.96 |
