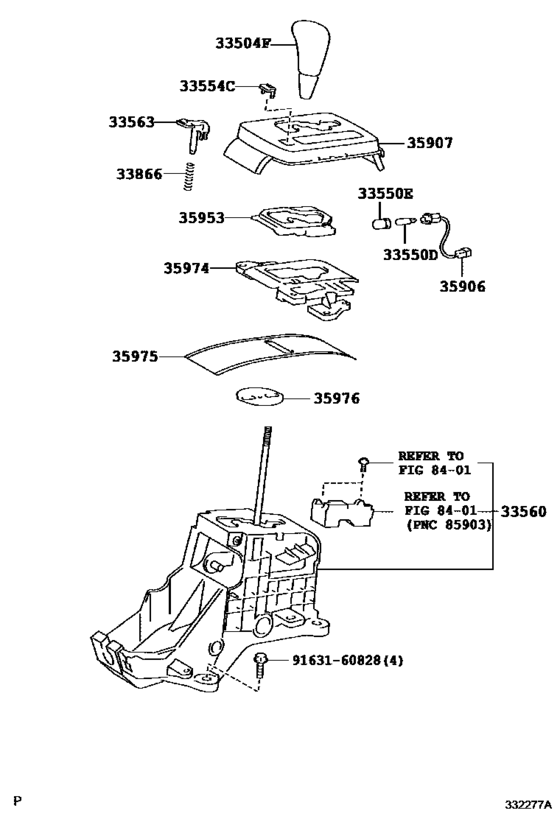

Shift Lever & Retainer ([05.2004 - ] (0405- )4FC) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-22170-B1 Knob Sub-Assy, Shift Lever[05.2004 - 07.2010] ANT10..4FC DK.GRAY,TRIM1# |
33504-22170-B1 |
US $30.43 |
||
|
33550D
|
33550D
90981-30001 Bulb, Position Indicator Lamp[05.2004 -] ANT10..4FC 14V 0.7W |
90981-30001 |
US $1.03 |
||
|
33550E
|
33550E
90339-04071 Cap, Position Indicator Lamp[05.2004 -] ANT10..4FC |
90339-04071 |
US $1.92 |
||
|
33554C
|
33554C
33554-21010
Cover, Shift Lock Release Button
[05.2004 -] ANT10..4FC |
33554-21010 |
— | ||
|
33560
|
33560
33560-21030 Unit Assy, Shift Lock ControlSHIFT LOCK CONTROL [05.2004 -] ANT10..4FC |
33560-21030 |
US $433.89 |
||
|
33563
|
33563
33563-21030
Button, Shift Lock Release
[05.2004 -] ANT10..4FC |
33563-21030 |
— | ||
|
33866
|
33866
33866-33010 Spring, Shift Lock Release[05.2004 -] ANT10..4FC |
33866-33010 |
US $1.69 |
||
|
35906
|
35906
35906-20140 Wire Sub-Assy, Indicator Lamp[05.2004 - 05.2006] ANT10..4FC |
35906-20140 |
US $10.92 |
||
| replacement | |||||
|
35906
|
35906
35906-33131 Wire Sub-Assy, Indicator Lamp[05.2004 - 05.2006] ANT10..4FC |
35906-33131 |
US $9.03 |
||
|
35906
|
35906
35906-21030
Wire Sub-Assy, Indicator Lamp
[05.2006 -] ANT10..4FC |
35906-21030 |
— | ||
| replacement | |||||
|
35906
|
35906
35906-20170 Wire Sub-Assy, Indicator LampINDICATOR LAMP [05.2006 -] ANT10..4FC |
35906-20170 |
US $6.99 |
||
|
35907
|
35907
35907-21030-B0 Housing Sub-Assy, Position Indicator (For Floor Shift)POSITION INDICATOR (FOR FLOOR SHIFT) [05.2004 - 07.2010] ANT10..4FC DK.GRAY,TRIM1# |
35907-21030-B0 |
US $75.71 |
||
|
35953
|
35953
35953-21030 Guide, Position Indicator LightPOSITION INDICATOR LIGHT [05.2004 -] ANT10..4FC |
35953-21030 |
US $16.89 |
||
|
35974
|
35974
35974-20261 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [05.2004 -] ANT10..4FC |
35974-20261 |
US $27.96 |
||
|
35975
|
35975
35975-20240 Cover, Slide (For Position Indicator)[05.2004 -] ANT10..4FC |
35975-20240 |
US $5.10 |
||
|
35976
|
35976
35976-20160 Cover, Slide, No.2 (For Position Indicator)[05.2004 -] ANT10..4FC |
35976-20160 |
US $8.39 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
