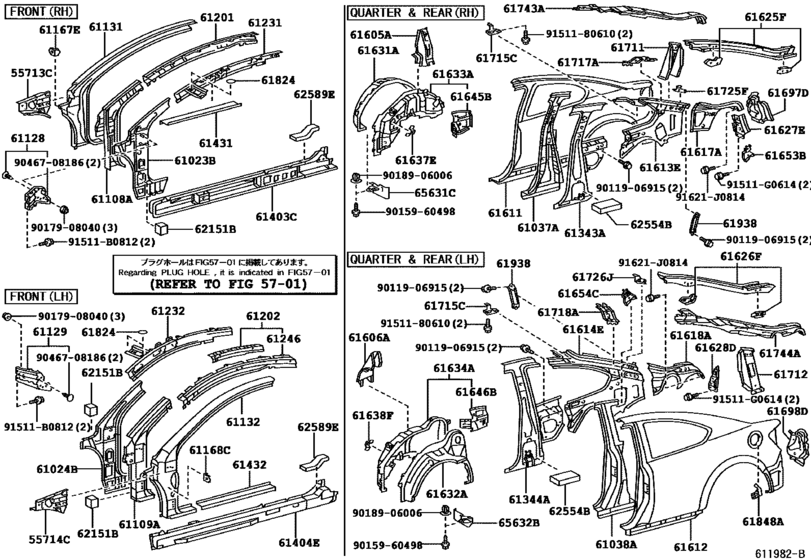

Side Member ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55713C
|
55713C
55713-21030 Panel, Cowl Top Side, RhCOWL TOP SIDE, RH [05.2004 -] ANT10 |
55713-21030 |
US $74.26 |
||
|
55714C
|
55714C
55714-21030 Panel, Cowl Top Side, LhCOWL TOP SIDE, LH [05.2004 -] ANT10 |
55714-21030 |
US $74.26 |
||
|
61023B
|
61023B
61023-21020 Pillar Sub-Assy, Front Body, Inner RhFRONT BODY, INNER RH [05.2004 - 07.2010] ANT10 |
61023-21020 |
US $260.62 |
||
|
61024B
|
61024B
61024-21020 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [05.2004 - 07.2010] ANT10 |
61024-21020 |
US $260.62 |
||
|
61037A
|
61037A
61037-21903
Reinforcement Sub-Assy, Center Body Pillar, Rh
[05.2004 - 01.2009] ANT10 |
61037-21903 |
— | ||
| replacement | |||||
|
61037A
|
61037A
61037-21906
Reinforcement Sub-Assy, Center Body Pillar, Rh
[05.2004 - 01.2009] ANT10 |
61037-21906 |
— | ||
|
61037A
|
61037A
61037-21906
Reinforcement Sub-Assy, Center Body Pillar, Rh
[01.2009 -] ANT10 |
61037-21906 |
— | ||
|
61038A
|
61038A
61038-21903
Reinforcement Sub-Assy, Center Body Pillar, Lh
[05.2004 - 01.2009] ANT10 |
61038-21903 |
— | ||
| replacement | |||||
|
61038A
|
61038A
61038-21906
Reinforcement Sub-Assy, Center Body Pillar, Lh
[05.2004 - 01.2009] ANT10 |
61038-21906 |
— | ||
|
61038A
|
61038A
61038-21906
Reinforcement Sub-Assy, Center Body Pillar, Lh
[01.2009 -] ANT10 |
61038-21906 |
— | ||
|
61108A
|
61108A
61108-21020 Reinforce Sub-Assy, Front Body Pillar, Lower RhFRONT BODY PILLAR, LOWER RH [05.2004 -] ANT10 |
61108-21020 |
US $224.22 |
||
|
61109A
|
61109A
61109-21020 Reinforce Sub-Assy, Front Body Pillar, Lower LhFRONT BODY PILLAR, LOWER LH [05.2004 -] ANT10 |
61109-21020 |
US $224.22 |
||
|
61128
|
61128
61103-21010 Reinforcement, Cowl Side Panel, RhCOWL SIDE PANEL, RH [05.2004 -] ANT10 |
61103-21010 |
US $56.78 |
||
|
61129
|
61129
61104-21010 Reinforcement, Cowl Side Panel, LhCOWL SIDE PANEL, LH [05.2004 -] ANT10 |
61104-21010 |
US $67.70 |
||
|
61131
|
61131
61131-21120 Pillar, Front Body, Upper Outer RhFRONT BODY, UPPER OUTER RH [05.2004 -] ANT10 |
61131-21120 |
US $260.62 |
||
|
61132
|
61132
61132-21110 Pillar, Front Body, Upper Outer LhFRONT BODY, UPPER OUTER LH [05.2004 -] ANT10 |
61132-21110 |
US $260.62 |
||
|
61167E
|
61167E
61168-44010 Bracket, No.6 Pillar Outer[05.2004 -] ANT10 |
61168-44010 |
US $3.68 |
||
|
61168C
|
61168C
61168-44010 Bracket, No.6 Pillar Outer[05.2004 -] ANT10 |
61168-44010 |
US $3.68 |
||
|
61201
|
61201
61201-21010 Rail Sub-Assy, Roof Side, RhROOF SIDE, RH [05.2004 -] ANT10 |
61201-21010 |
US $180.54 |
||
|
61202
|
61202
61202-21010 Rail Sub-Assy, Roof Side, LhROOF SIDE, LH [05.2004 -] ANT10 |
61202-21010 |
US $180.54 |
||
|
61231
|
61231
61231-21905
Rail, Roof Side, Inner Rh
[05.2004 -] ANT10 |
61231-21905 |
— | ||
|
61232
|
61232
61232-21905
Rail, Roof Side, Inner Lh
[05.2004 -] ANT10 |
61232-21905 |
— | ||
|
61246
|
61246
61246-21020 Reinforcement, Roof Side Rail, Outer LhROOF SIDE RAIL, OUTER LH [05.2004 -] ANT10 |
61246-21020 |
US $85.90 |
||
|
61343A
|
61343A
61032-21010 Pillar, Center Body, Inner RhCENTER BODY, INNER RH [05.2004 -] ANT10 |
61032-21010 |
US $147.06 |
||
|
61344A
|
61344A
61042-21010 Pillar, Center Body, Inner LhCENTER BODY, INNER LH [05.2004 -] ANT10 |
61042-21010 |
US $147.06 |
||
|
61403C
|
61403C
61403-21020
Reinforce Sub-Assy, Rocker, Outer Rh
[05.2004 -] ANT10 |
61403-21020 |
— | ||
|
61404E
|
61404E
61404-21020
Reinforce Sub-Assy, Rocker, Outer Lh
[05.2004 -] ANT10 |
61404-21020 |
— | ||
|
61431
|
61431
61431-21020
Panel, Rocker, Outer Rear Rh
[05.2004 -] ANT10 |
61431-21020 |
— | ||
|
61432
|
61432
61432-21020
Panel, Rocker, Outer Rear Lh
[05.2004 -] ANT10 |
61432-21020 |
— | ||
|
61605A
|
61605A
61605-21040 Reinforcement Sub-Assy, Quarter Panel, RhQUARTER PANEL, RH [05.2004 -] ANT10 |
61605-21040 |
US $131.04 |
||
|
61606A
|
61606A
61606-21030 Reinforcement Sub-Assy, Quarter Panel, LhQUARTER PANEL, LH [05.2004 -] ANT10 |
61606-21030 |
US $104.83 |
||
|
61611
|
61611
61601-21220 Panel, Quarter, RhQUARTER, RH [05.2004 -] ANT10 |
61601-21220 |
US $970.59 |
||
|
61612
|
61612
61602-21200
Panel, Quarter, Lh
[05.2004 -] ANT10 |
61602-21200 |
— | ||
|
61613E
|
61613E
61613-21010 Panel, Quarter, Inner RhQUARTER, INNER RH [05.2004 -] ANT10 |
61613-21010 |
US $138.32 |
||
|
61614E
|
61614E
61614-21010 Panel, Quarter, Inner LhQUARTER, INNER LH [05.2004 -] ANT10 |
61614-21010 |
US $138.32 |
||
|
61617A
|
61617A
61617-21020 Panel, Quarter Inner, Rear RhQUARTER INNER, REAR RH [05.2004 -] ANT10 |
61617-21020 |
US $62.46 |
||
|
61618A
|
61618A
61618-21020 Panel, Quarter, Inner Rear LhQUARTER, INNER REAR LH [05.2004 -] ANT10 |
61618-21020 |
US $48.05 |
||
|
61625F
|
61625F
61625-21901 Extension, Quarter Panel, Upper RhQUARTER PANEL, UPPER RH [05.2004 -] ANT10 |
61625-21901 |
US $93.18 |
||
|
61626F
|
61626F
61626-21901 Extension, Quarter Panel, Upper LhQUARTER PANEL, UPPER LH [05.2004 -] ANT10 |
61626-21901 |
US $93.18 |
||
|
61627E
|
61627E
61627-21050 Extension, Quarter Panel, Rear Lower RhQUARTER PANEL, REAR LOWER RH [05.2004 -] ANT10 |
61627-21050 |
US $20.53 |
||
|
61628D
|
61628D
61628-21050 Extension, Quarter Panel, Rear Lower LhQUARTER PANEL, REAR LOWER LH [05.2004 -] ANT10 |
61628-21050 |
US $20.53 |
||
|
61631A
|
61631A
61631-21040 Panel, Quarter Wheel House, Outer RhQUARTER WHEEL HOUSE, OUTER RH [05.2004 -] ANT10 |
61631-21040 |
US $131.04 |
||
|
61632A
|
61632A
61632-21040 Panel, Quarter Wheel House, Outer LhQUARTER WHEEL HOUSE, OUTER LH [05.2004 -] ANT10 |
61632-21040 |
US $147.06 |
||
|
61633A
|
61633A
61607-21904
Panel, Quarter Wheel House, Inner Rh
[05.2004 -] ANT10 |
61607-21904 |
— | ||
|
61634A
|
61634A
61608-21904 Panel, Quarter Wheel House, Inner LhQUARTER WHEEL HOUSE, INNER LH [05.2004 -] ANT10 |
61608-21904 |
US $231.50 |
||
|
61637E
|
61637E
61637-21020 Bracket, Quarter Wheel HouseQUARTER WHEEL HOUSE [05.2004 -] ANT10 |
61637-21020 |
US $3.93 |
||
|
61638F
|
61638F
61637-21020 Bracket, Quarter Wheel HouseQUARTER WHEEL HOUSE [05.2004 -] ANT10 |
61637-21020 |
US $3.93 |
||
|
61645B
|
61645B
61645-63010 Gusset, Quarter Wheel House, Rear Rh[05.2004 -] ANT10 |
61645-63010 |
US $35.67 |
||
|
61646B
|
61646B
61646-63010 Gusset, Quarter Wheel House, Rear Lh[05.2004 -] ANT10 |
61646-63010 |
US $35.67 |
||
|
61653B
|
61653B
61653-21040 Bracket, Deck Side TrimDECK SIDE TRIM [05.2004 -] ANT10 |
61653-21040 |
US $10.05 |
||
|
61654C
|
61654C
61654-21030 Bracket, Deck Side Trim, LhDECK SIDE TRIM, LH [05.2004 -] ANT10 |
61654-21030 |
US $10.05 |
||
|
61697D
|
61697D
61697-21010 Housing, Quarter Panel End, RhQUARTER PANEL END, RH [05.2004 -] ANT10 |
61697-21010 |
US $47.90 |
||
|
61698D
|
61698D
61698-21010 Housing, Quarter Panel End, LhQUARTER PANEL END, LH [05.2004 -] ANT10 |
61698-21010 |
from US $47.90 |
||
|
61711
|
61711
61711-21030 Panel, Roof Side, Outer RhROOF SIDE, OUTER RH [05.2004 -] ANT10 |
61711-21030 |
US $47.17 |
||
|
61712
|
61712
61712-21030 Panel, Roof Side, Outer LhROOF SIDE, OUTER LH [05.2004 -] ANT10 |
61712-21030 |
US $47.17 |
||
|
61715C
|
61715C
61715-21010 Bracket, Roof Side, RhROOF SIDE, RH [05.2004 -] ANT10 |
61715-21010 |
US $5.24 |
||
|
61717A
|
61717A
61717-21020 Reinforcement, Quarter Panel Extension, RhQUARTER PANEL EXTENSION, RH [05.2004 -] ANT10 |
61717-21020 |
US $16.31 |
||
|
61718A
|
61718A
61718-21030 Reinforcement, Quarter Panel Extension, LhQUARTER PANEL EXTENSION, LH [05.2004 -] ANT10 |
61718-21030 |
US $16.31 |
||
|
61725F
|
61725F
61725-21020 Reinforcement, Back Door Opening Side, Upper RhBACK DOOR OPENING SIDE, UPPER RH [05.2004 -] ANT10 |
61725-21020 |
US $5.82 |
||
|
61726J
|
61726J
61726-21020 Reinforcement, Back Door Opening Side, Upper LhBACK DOOR OPENING SIDE, UPPER LH [05.2004 -] ANT10 |
61726-21020 |
US $6.12 |
||
|
61743A
|
61743A
61743-21030 Reinforcement, Back Door Opening Side, RhBACK DOOR OPENING SIDE, RH [05.2004 -] ANT10 |
61743-21030 |
US $78.62 |
||
|
61744A
|
61744A
61744-21030 Reinforcement, Back Door Opening Side, LhBACK DOOR OPENING SIDE, LH [05.2004 -] ANT10 |
61744-21030 |
US $78.62 |
||
|
61824
|
61824
61824-12050 Plate, Noise Control, No.1[05.2004 -] ANT10 |
61824-12050 |
US $5.82 |
||
|
61848A
|
61848A
61848-21010 Retainer, Quarter Panel, Lh[05.2004 -] ANT10 |
61848-21010 |
US $6.55 |
||
|
61938
|
61938
61938-21010 Bracket, Roof Side Upr Rail, RhROOF SIDE UPR RAIL, RH [05.2004 -] ANT10 |
61938-21010 |
US $13.10 |
||
|
62151B
|
62151B
62151-52010 Pad, Cowl Side Silencer[05.2004 -] ANT10 |
62151-52010 |
US $3.64 |
||
|
62554B
|
62554B
62554-12180 Pad, Pillar, No.4[05.2004 -] ANT10 |
62554-12180 |
US $3.44 |
||
|
62589E
|
62589E
62589-21010 Pad, Quarter PillarQUARTER PILLAR [05.2004 -] ANT10 |
62589-21010 |
US $5.97 |
||
|
65631C
|
65631C
65631-21010 Plate, Rear Wheel House, Front RhREAR WHEEL HOUSE, FRONT RH [05.2004 -] ANT10 |
65631-21010 |
US $29.99 |
||
|
65632B
|
65632B
65632-21010 Plate, Rear Whell House, Front LhREAR WHELL HOUSE, FRONT LH [05.2004 -] ANT10 |
65632-21010 |
US $30.43 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
from US $1.76 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9046708186
|
9046708186
90467-08186
Clip(For Rear Floor Finish Plate)
|
90467-08186 |
— | ||
| replacement | |||||
|
9046708186
|
9046708186
90467-08186-C0 Clip(For Front Bumper), No.1 |
90467-08186-C0 |
from US $0.92 |
||
|
9151180610
|
9151180610
91511-80610 New Genuine Part |
91511-80610 |
US $0.73 |
||
