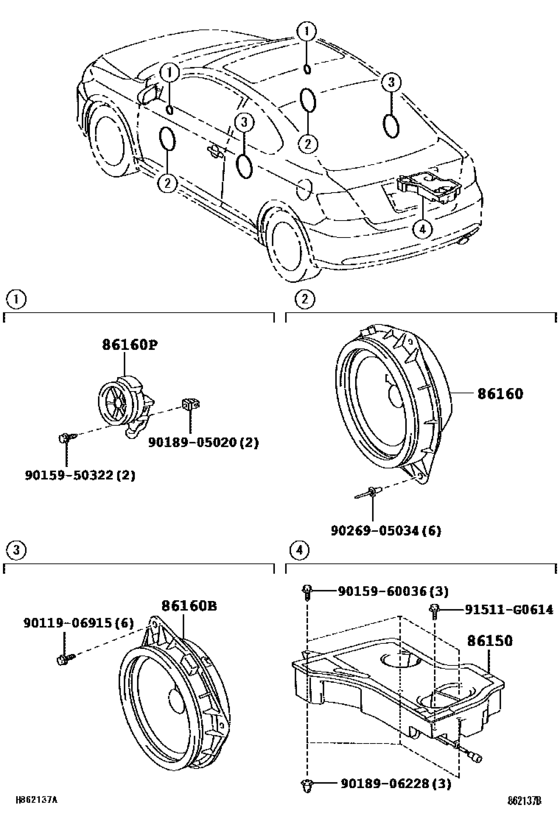

Speaker ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86150
|
86150
86150-21020 Speaker Assy, W/box, No.1W/BOX, NO.1 [03.2006 - 04.2006] ANT10 SPECIAL EDITION |
86150-21020 |
US $391.66 |
||
|
86160
|
86160
86160-33620 Speaker Assy, Front No.1[05.2004 -] ANT10 |
86160-33620 |
US $158.40 |
||
|
86160B
|
86160B
86160-13080 Speaker Assy, Rear[05.2004 -] ANT10 |
86160-13080 |
US $106.29 |
||
|
86160P
|
86160P
86160-21120
Speaker Assy, Front No.2
[05.2004 -] ANT10 RH |
86160-21120 |
— | ||
|
86160P
|
86160P
86160-21130
Speaker Assy, Front No.2
[05.2004 -] ANT10 LH |
86160-21130 |
— | ||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
from US $1.76 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
|
9015960036
|
9015960036
90159-60036 SCREW |
90159-60036 |
US $1.60 |
||
|
9018905020
|
9018905020
90189-05020 New Genuine Part |
90189-05020 |
US $1.93 |
||
|
9018906228
|
9018906228
90189-06228 Grommet(For Rear Bumper) |
90189-06228 |
from US $0.76 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $2.24 |
