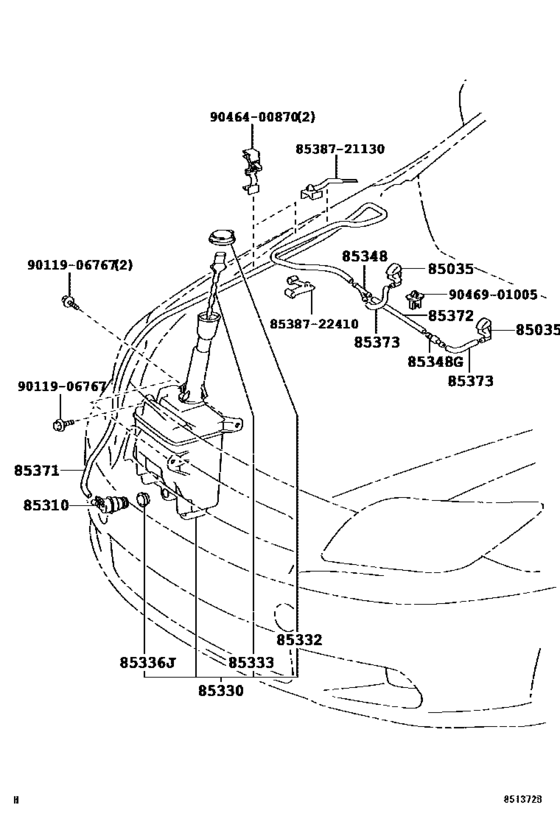

Windshield Washer ([05.2004 - ] (0405- )) Diagram Toyota SCION TC
- Year
- 2004 - 2010
- Sales region
- U.S.A.
- Frame
- ANT10
- grade
- G
- body
- LB
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- TC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-21030
Nozzle Sub-Assy, Washer
[05.2004 -] ANT10 |
85381-21030 |
— | ||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[05.2004 -] ANT10 |
85330-60190 |
from US $81.40 |
||
|
85330
|
85330
85315-21020
Jar Assy, Windshield Washer
[05.2004 -] ANT10 |
85315-21020 |
— | ||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[05.2004 -] ANT10 |
85316-16070 |
from US $1.75 |
||
|
85333
|
85333
85312-21020 Filter, Windshield Washer Jar[05.2004 -] ANT10 |
85312-21020 |
US $2.10 |
||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[05.2004 -] ANT10 |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[05.2004 -] ANT10 |
85348-12250 |
from US $0.55 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[05.2004 -] ANT10 |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33803 Hose, Windshield Washer (From Joint To Joint), No.1[05.2004 -] ANT10 *H,L=2045 |
90099-33803 |
from US $8 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2004 -] ANT10 *H,L=380 |
90099-33080 |
from US $5.99 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2004 -] ANT10 *H,L=100 |
90099-33080 |
from US $5.99 |
||
|
8538721130
|
8538721130
85387-21130
Clamp No.1 (for Windseield Washer)
|
85387-21130 |
— | ||
|
8538722410
|
8538722410
85387-22410 Clamp No.1 (For Windseield Washer) |
85387-22410 |
from US $3.14 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9046400870
|
9046400870
90464-00870 New Genuine Part |
90464-00870 |
US $4.80 |
||
|
9046901005
|
9046901005
90469-01005 New Genuine Part |
90469-01005 |
US $2.72 |
