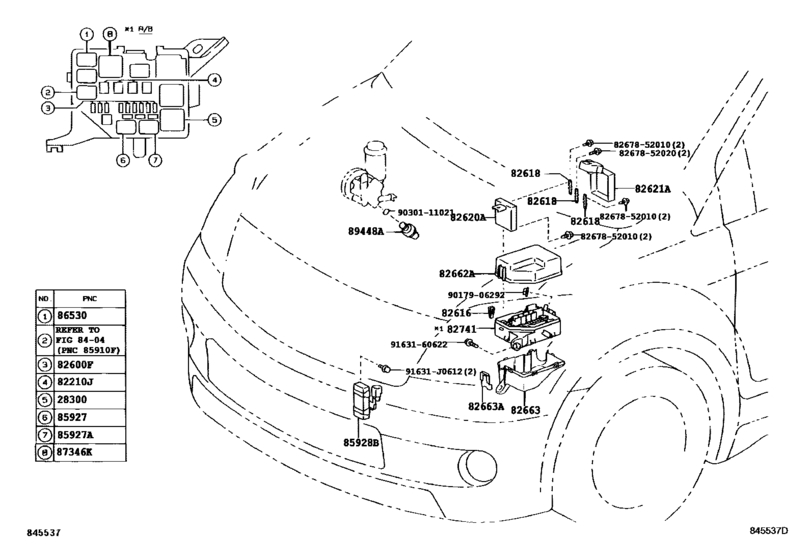

Switch & Relay & Computer ([04.2003 - ] ENGINE ROOM (0304- )) Diagram Toyota SCION XA
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP61
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 04.2003
- To
- 12.2006
- Gear Shift Type
- 5F
- Vehicle Model
- XA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[04.2003 - 07.2005] 1NZFE..NCP61 |
28300-10020 |
from US $57.15 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[04.2003 - 07.2005] NCP61 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[04.2003 - 07.2005] NCP61 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[04.2003 - 07.2005] NCP61 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.04 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[04.2003 - 07.2005] NCP61 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[04.2003 - 07.2005] NCP61 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[04.2003 - 07.2005] NCP61 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[04.2003 - 07.2005] NCP61 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[04.2003 - 07.2005] NCP61 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[04.2003 - 07.2005] NCP61 |
82616-20010 |
from US $2.38 |
||
|
82618
|
82618
82618-52010 Fuse, Fuse Block[04.2003 - 07.2005] NCP61 60A |
82618-52010 |
from US $3.08 |
||
|
82618
|
82618
82618-52030 Fuse, Fuse Block[04.2003 - 07.2005] NCP61 120A |
82618-52030 |
from US $3.32 |
||
|
82620A
|
82620A
82620-52011 Block Assy, Fusible Link[04.2003 - 07.2005] NCP61 |
82620-52011 |
from US $35.14 |
||
|
82621A
|
82621A
82621-52021 Cover, Fusible Link[04.2003 - 07.2005] NCP61 |
82621-52021 |
US $20.27 |
||
|
82621A
|
82621A
82621-52080 Cover, Fusible Link[05.2004 - 07.2005] NCP61 MOON ROOF |
82621-52080 |
US $17.91 |
||
|
82662A
|
82662A
82662-52230
Cover, Relay Block, Upper, No.1
[04.2003 - 07.2005] NCP61 |
82662-52230 |
— | ||
|
82663
|
82663
82663-52040 Cover, Relay Block, Lower[04.2003 - 07.2005] NCP61 |
82663-52040 |
US $23.62 |
||
|
82663A
|
82663A
82663-52050 Cover, Relay Block, Lower, No.2[04.2003 - 07.2005] NCP61 |
82663-52050 |
US $1.89 |
||
|
82741
|
82741
82741-52010 Block, Engine Room Relay[04.2003 - 07.2005] NCP61 |
82741-52010 |
US $78.03 |
||
|
85927
|
85927
90987-02027 Relay[04.2003 - 07.2005] NCP61 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[04.2003 - 07.2005] NCP61 |
90987-04004 |
from US $42.71 |
||
|
85928B
|
85928B
85928-52010 Resistor, Cooling Fan[04.2003 - 07.2005] NCP61 |
85928-52010 |
US $70.18 |
||
| replacement | |||||
|
85928B
|
85928B
85928-52011 Resistor, Cooling Fan[04.2003 - 07.2005] NCP61 |
85928-52011 |
US $92.40 |
||
|
86530
|
86530
90987-02027 Relay[04.2003 - 07.2005] NCP61 |
90987-02027 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02025 Relay[04.2003 - 07.2005] NCP61 |
90987-02025 |
from US $44.54 |
||
|
89448A
|
89448A
89448-51010 Switch, Power Steering Oil Pressure[04.2003 - 07.2005] NCP61 |
89448-51010 |
from US $168.48 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
8267852010
|
8267852010
82678-52010 Cover, Junction Block, Upper No.3 |
82678-52010 |
US $2.48 |
||
|
8267852020
|
8267852020
82678-52020 Cover, Junction Block, Upper No.3 |
82678-52020 |
US $2.77 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.24 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
