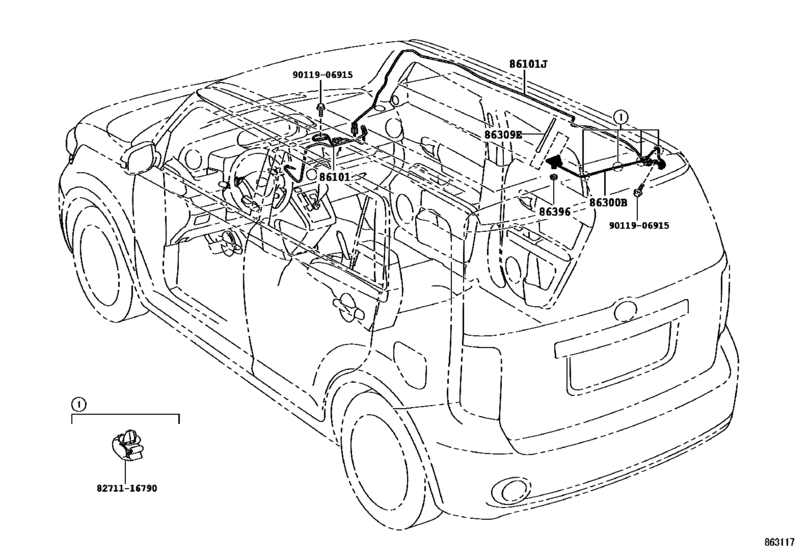

Antenna ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-12740
Cord Sub-Assy, Antenna
[03.2010 -] AZE151 |
86101-12740 |
— | ||
|
86101J
|
86101J
86101-12700 Cord Sub-Assy, Antenna, No.2[03.2010 -] AZE151 |
86101-12700 |
US $60.13 |
||
|
86300B
|
86300B
86300-12A40
Antenna Assy, Amplifier, No.1
[03.2010 -] AZE151 |
86300-12A40 |
— | ||
|
86309E
|
86309E
86309-48040
Pole Sub-Assy, Pillar Antenna
[03.2010 -] AZE151 |
86309-48040 |
— | ||
|
86396
|
86396
86396-20040 Nut, Antenna[03.2010 -] AZE151 |
86396-20040 |
US $10.21 |
||
|
8271116790
|
8271116790
82711-16790 Clamp, Wiring Harness |
82711-16790 |
from US $1.35 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
