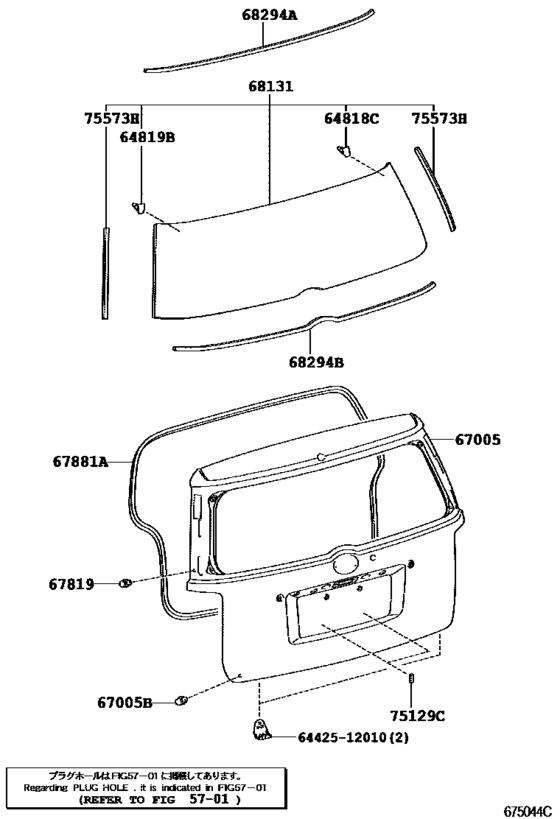

Back Door Panel & Glass ([03.2007 - ] DOOR PANEL (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64818C
|
64818C
64818-12060 Spacer, Back Window Glass, No.1[03.2010 -] AZE151 |
64818-12060 |
US $6.99 |
||
|
64819B
|
64819B
64819-12040 Spacer, Back Window Glass, No.2[03.2010 -] AZE151 |
64819-12040 |
US $6.99 |
||
|
67005
|
67005
67005-12A80 Panel Sub-Assy, Back DoorBACK DOOR [03.2010 - 11.2014] AZE151..CND |
67005-12A80 |
US $591.14 |
||
| replacement | |||||
|
67005
|
67005
67005-12B30 Panel Sub-Assy, Back DoorBACK DOOR [03.2010 - 11.2014] AZE151..CND |
67005-12B30 |
US $591.14 |
||
|
67005
|
67005
67005-12C60
Panel Sub-Assy, Back Door
[05.2014 - 07.2014] AZE151..ATM..CND LIMITED PACKAGE-XB RELEAS SERIES 10.0 |
67005-12C60 |
— | ||
| replacement | |||||
|
67005
|
67005
67005-12C80
Panel Sub-Assy, Back Door
[05.2014 - 07.2014] AZE151..ATM..CND LIMITED PACKAGE-XB RELEAS SERIES 10.0 |
67005-12C80 |
— | ||
|
67005B
|
67005B
90541-09142 Cushion(For Back Door Panel)[03.2010 -] AZE151 |
90541-09142 |
from US $1.79 |
||
|
67819
|
67819
67819-12010 Pad, Back Door Outside Panel[03.2010 -] AZE151 |
67819-12010 |
US $6.81 |
||
|
67881A
|
67881A
67881-12300 Weatherstrip, Back Door[03.2010 -] AZE151 |
67881-12300 |
US $204.80 |
||
|
68131
|
68131
68105-12370
Glass, Back Door
[03.2010 -] AZE151 *EHT,T=3.1,D.GRAY |
68105-12370 |
— | ||
|
68294A
|
68294A
64813-12200 Dam, Back Door Glass Adhesive[03.2010 -] AZE151 |
64813-12200 |
US $8.67 |
||
|
68294B
|
68294B
64814-12010 Dam, Back Door Glass Adhesive[03.2010 -] AZE151 |
64814-12010 |
US $9.49 |
||
|
75129C
|
75129C
75129-13020 Cushion, Rr Licence Plate[03.2010 - 12.2012] AZE151 |
75129-13020 |
from US $0.88 |
||
|
75129C
|
75129C
75129-30010 Cushion, Rear License Plate[01.2013 -] AZE151 |
75129-30010 |
US $3.40 |
||
|
75573H
|
75573H
75573-12370 Moulding, Back Window, Outside[03.2010 -] AZE151 |
75573-12370 |
US $29.40 |
||
|
6442512010
|
6442512010
64425-12010 Plug, Luggage Compartment Door, Rh |
64425-12010 |
US $6.45 |
||
