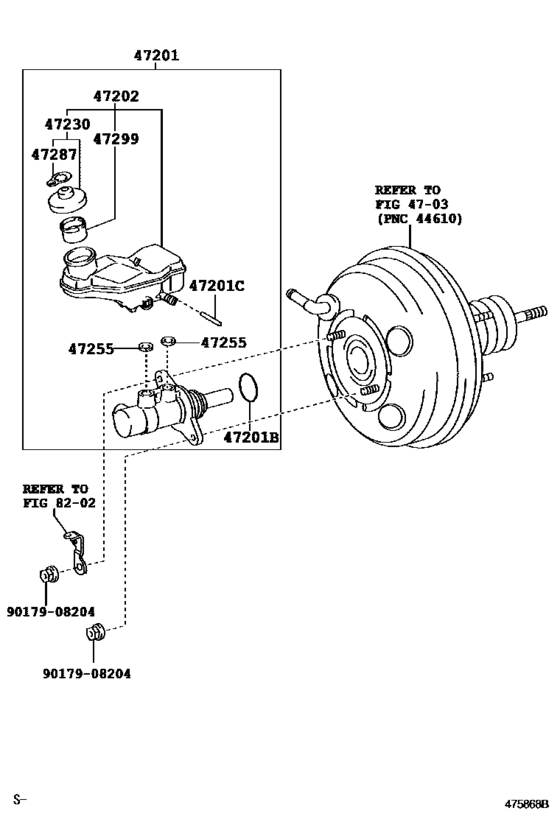

Brake Master Cylinder ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-12A20
Cylinder Sub-Assy, Brake Master
[03.2010 - 02.2012] AZE151 |
47201-12A20 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-12A22
Cylinder Sub-Assy, Brake Master
[03.2010 - 02.2012] AZE151 |
47201-12A22 |
— | ||
|
47201
|
47201
47201-12A21
Cylinder Sub-Assy, Brake Master
[03.2012 - 04.2012] AZE151 |
47201-12A21 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-12A22
Cylinder Sub-Assy, Brake Master
[03.2012 - 04.2012] AZE151 |
47201-12A22 |
— | ||
|
47201
|
47201
47201-12A22
Cylinder Sub-Assy, Brake Master
[05.2012 - 12.2015] AZE151 |
47201-12A22 |
— | ||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[03.2010 -] AZE151 |
90015-AH002 |
US $3.58 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[03.2010 -] AZE151 |
90029-15803 |
US $1.05 |
||
|
47202
|
47202
47220-12200
Reservoir Sub-Assy, Brake Master Cylinder
[03.2010 - 12.2015] AZE151 |
47220-12200 |
— | ||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[03.2010 -] AZE151 |
47230-20140 |
from US $6.60 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[03.2010 -] AZE151 |
90029-48001 |
US $6.45 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[03.2010 -] AZE151 |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[03.2010 -] AZE151 |
47299-20060 |
US $2.18 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
