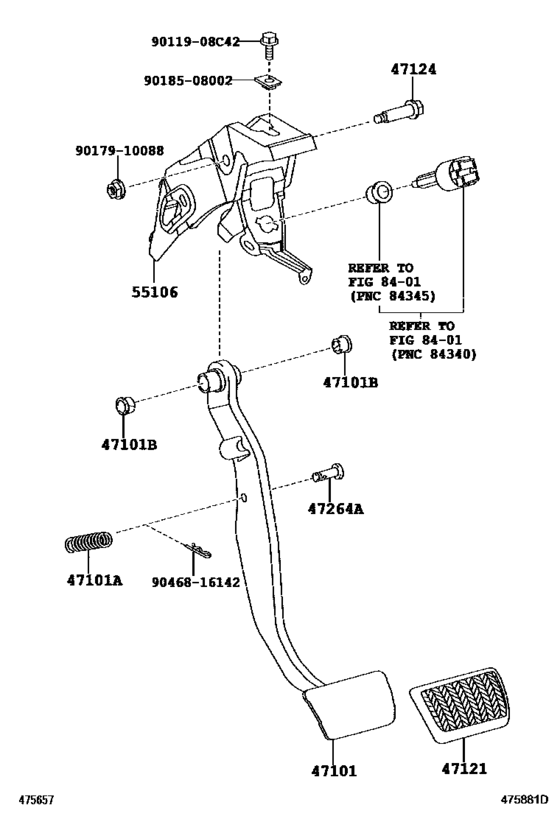

Brake Pedal & Bracket ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-12660
Pedal Sub-Assy, Brake
[03.2010 - 12.2015] AZE151..ATM |
47101-12660 |
— | ||
|
47101A
|
47101A
90507-15005 Spring(For Brake Pedal Return)[03.2010 - 07.2012] AZE151 |
90507-15005 |
US $2.62 |
||
|
47101A
|
47101A
90507-15007 Spring(For Brake Pedal Return)[08.2012 -] AZE151 |
90507-15007 |
US $2.33 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[03.2010 -] AZE151 |
90386-13015 |
from US $0.64 |
||
|
47121
|
47121
47121-42010 Pad, Brake Pedal[03.2010 -] AZE151..ATM |
47121-42010 |
from US $4.17 |
||
|
47124
|
47124
90109-10174 Shaft, Clutch Pedal[03.2010 -] AZE151 |
90109-10174 |
US $2.48 |
||
|
47264A
|
47264A
90249-08256 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[03.2010 -] AZE151 |
90249-08256 |
US $2.33 |
||
|
55106
|
55106
55106-12690
Support Sub-Assy, Brake Pedal
[03.2010 -] AZE151 |
55106-12690 |
— | ||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.43 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9018508002
|
9018508002
90185-08002 New Genuine Part |
90185-08002 |
US $2.62 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
