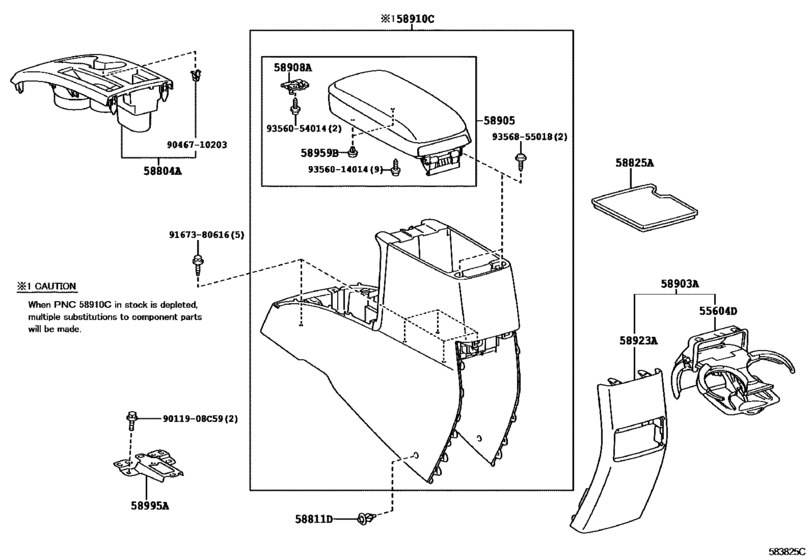

Console Box & Bracket ([03.2010 - 07.2011] (1003-1107)) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55604D
|
55604D
55604-12070-B0 Holder Sub-Assy, Instrument Panel CupINSTRUMENT PANEL CUP [03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
55604-12070-B0 |
US $53.29 |
||
|
58804A
|
58804A
58804-12080-B0
Panel Sub-Assy, Console, Upper
[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
58804-12080-B0 |
— | ||
|
58811D
|
58811D
90467-07076-B7 Clip(For Console Box)[03.2010 - 08.2011] AZE151 DK.GRAY |
90467-07076-B7 |
from US $0.88 |
||
|
58811D
|
58811D
90467-07076-C0 Clip, Radiator Grille[08.2011 - 12.2015] AZE151 BLACK |
90467-07076-C0 |
from US $0.92 |
||
|
58825A
|
58825A
58825-12030-B0 Pocket, Console BoxCONSOLE BOX [03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
58825-12030-B0 |
US $28.25 |
||
|
58903A
|
58903A
58903-12050-B0
Panel Sub-Assy, Console Rear End
[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
58903-12050-B0 |
— | ||
|
58905
|
58905
58905-12820-B1 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [03.2010 - 07.2012] AZE151 DARK GRAY,TRIM1# |
58905-12820-B1 |
US $364 |
||
| replacement | |||||
|
58905
|
58905
58905-12821-B1 Door Sub-Assy, Console Compartment[03.2010 - 07.2012] AZE151 DARK GRAY,TRIM1# |
58905-12821-B1 |
US $281.30 |
||
|
58905
|
58905
58905-12821-B1 Door Sub-Assy, Console Compartment[08.2012 - 12.2015] AZE151 DARK GRAY,TRIM1# |
58905-12821-B1 |
US $281.30 |
||
|
58908A
|
58908A
58908-12050 Lock Sub-Assy, Console Compartment Door[06.2010 - 05.2011] AZE151 |
58908-12050 |
US $14.71 |
||
| replacement | |||||
|
58908A
|
58908A
58908-12080 Lock Sub-Assy, Console Compartment Door[06.2010 - 05.2011] AZE151 |
58908-12080 |
from US $12.77 |
||
|
58908A
|
58908A
58908-12080 Lock Sub-Assy, Console Compartment Door[05.2011 -] AZE151 |
58908-12080 |
from US $12.77 |
||
|
58908A
|
58908A
58908-32021 Lock Sub-Assy, Console Compartment Door[03.2010 - 05.2010] AZE151 |
58908-32021 |
US $14.71 |
||
| replacement | |||||
|
58908A
|
58908A
58908-12080 Lock Sub-Assy, Console Compartment Door[03.2010 - 05.2010] AZE151 |
58908-12080 |
from US $12.77 |
||
|
58910C
|
58910C
58910-12680-B0 Box Assy, Console, Rear[08.2011 - 12.2015] AZE151 DK.GRAY,TRIM1# |
58910-12680-B0 |
US $164.53 |
||
|
58910C
|
58910C
58910-12820-B0 Box Assy, Console, RearCONSOLE, REAR [03.2010 - 07.2011] AZE151 DK.GRAY,TRIM1# |
58910-12820-B0 |
US $547.46 |
||
| replacements | |||||
|
58910C
|
58910C
58905-12821-B1 Door Sub-Assy, Console Compartment[03.2010 - 07.2011] AZE151 DK.GRAY,TRIM1# |
58905-12821-B1 |
US $281.30 |
||
|
58910C
|
58910C
58910-12680-B0 Box Assy, Console, Rear[03.2010 - 07.2011] AZE151 DK.GRAY,TRIM1# |
58910-12680-B0 |
US $164.53 |
||
|
58910C
|
58910C
93568-55018 SCREW[03.2010 - 07.2011] AZE151 DK.GRAY,TRIM1# |
93568-55018 |
from US $0.60 |
||
|
58923A
|
58923A
58923-12120-B0 Panel, Console Rear EndCONSOLE REAR END [03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
58923-12120-B0 |
US $43.24 |
||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[03.2010 -] AZE151 |
58959-60060 |
from US $1.21 |
||
|
58995A
|
58995A
58995-12110 Bracket, Console Box Mounting, No.1[03.2010 -] AZE151 |
58995-12110 |
US $11.65 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.43 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
US $1.08 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.70 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.60 |
||
