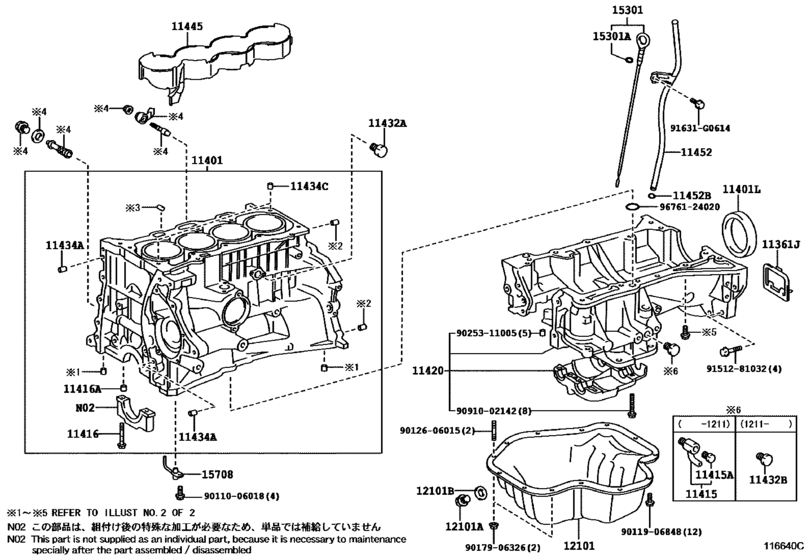

Cylinder Block ([11.2010 - ] *195 (1011- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-28010 Cover, Flywheel Housing Under[03.2010 -] 2AZFE..AZE151 |
11361-28010 |
from US $5.17 |
||
|
11401
|
11401
11410-09221 Block Sub-Assy, Cylinder[03.2010 - 11.2013] 2AZFE..AZE151..CND *194; 2AZFE..AZE151..CND 2AZ-FE,*194 |
11410-09221 |
US $2,358.72 |
||
| replacement | |||||
|
11401
|
11401
11410-09222 Block Sub-Assy, Cylinder[03.2010 - 11.2013] 2AZFE..AZE151..CND *194; 2AZFE..AZE151..CND 2AZ-FE,*194 |
11410-09222 |
US $2,358.72 |
||
|
11401
|
11401
11410-09222 Block Sub-Assy, Cylinder[11.2013 - 12.2015] 2AZFE..AZE151..CND *194; 2AZFE..AZE151..CND 2AZ-FE,*194 |
11410-09222 |
US $2,358.72 |
||
|
11401
|
11401
11410-29345
Block Sub-Assy, Cylinder
[11.2010 - 12.2012] 2AZFE..AZE151 2AZ-FE,*195 |
11410-29345 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-29346 Block Sub-Assy, Cylinder[11.2010 - 12.2012] 2AZFE..AZE151 2AZ-FE,*195 |
11410-29346 |
US $2,761.20 |
||
|
11401
|
11401
11410-29346 Block Sub-Assy, Cylinder[12.2012 - 12.2015] 2AZFE..AZE151 2AZ-FE,*195 |
11410-29346 |
US $2,761.20 |
||
|
11401L
|
11401L
90311-89003
Seal, Engine Rear Oil
[11.2010 - 04.2012] 2AZFE..AZE151 2AZ-FE,*195 |
90311-89003 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[11.2010 - 04.2012] 2AZFE..AZE151 2AZ-FE,*195 |
90311-89010 |
from US $23.35 |
||
|
11401L
|
11401L
90311-89007
Seal, Engine Rear Oil
[04.2012 - 05.2013] 2AZFE..AZE151 2AZ-FE,*195 |
90311-89007 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[04.2012 - 05.2013] 2AZFE..AZE151 2AZ-FE,*195 |
90311-89010 |
from US $23.35 |
||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[05.2013 -] 2AZFE..AZE151 2AZ-FE,*195 |
90311-89010 |
from US $23.35 |
||
|
11401L
|
11401L
90311-C0001
Seal, Engine Rear Oil
[03.2010 - 04.2012] 2AZFE..AZE151 *194 |
90311-C0001 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-C0024 Seal, Engine Rear Oil[03.2010 - 04.2012] 2AZFE..AZE151 *194 |
90311-C0024 |
US $23.35 |
||
|
11401L
|
11401L
90311-C0024 Seal, Engine Rear Oil[04.2012 -] 2AZFE..AZE151 *194 |
90311-C0024 |
US $23.35 |
||
|
11415
|
11415
90910-09120 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.2010 - 11.2012] 2AZFE..AZE151 2AZ-FE,*195 |
90910-09120 |
from US $9.28 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[11.2010 - 11.2012] 2AZFE..AZE151 2AZ-FE,*195 |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02124
Bolt(For Crankshaft Bearing Cap Set)
[03.2010 -] 2AZFE..AZE151 *194 |
90910-02124 |
— | ||
| replacement | |||||
|
11416
|
11416
90910-02206 BOLT[03.2010 -] 2AZFE..AZE151 *194 |
90910-02206 |
from US $2.73 |
||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[03.2010 - 11.2013] 2AZFE..AZE151 *194 |
90253-13017 |
from US $1.35 |
||
|
11416A
|
11416A
90253-C0006
Pin, Ring(For Crankshaft Bearing Cap Set)
[11.2013 -] 2AZFE..AZE151 (L),*194 |
90253-C0006 |
— | ||
|
11420
|
11420
11420-0H050
Crankcase Assy, Stiffening
[03.2010 - 10.2010] 2AZFE..AZE151 (L),*194 |
11420-0H050 |
— | ||
| replacement | |||||
|
11420
|
11420
11420-0H051
Crankcase Assy, Stiffening
[03.2010 - 10.2010] 2AZFE..AZE151 (L),*194 |
11420-0H051 |
— | ||
|
11420
|
11420
11420-0H051
Crankcase Assy, Stiffening
[10.2010 -] 2AZFE..AZE151 (L),*194 |
11420-0H051 |
— | ||
|
11420
|
11420
11420-28020 Crankcase Assy, Stiffening[03.2010 - 10.2010] 2AZFE..AZE151 (J),*194 |
11420-28020 |
US $765.86 |
||
| replacement | |||||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[03.2010 - 10.2010] 2AZFE..AZE151 (J),*194 |
11420-28021 |
from US $402.71 |
||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[10.2010 -] 2AZFE..AZE151 (J),*194 |
11420-28021 |
from US $402.71 |
||
|
11432A
|
11432A
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[03.2010 -] 2AZFE..AZE151 *194 |
90345-52001 |
from US $4.12 |
||
|
11432B
|
11432B
90345-53006 Plug, W/head Taper Screw, No.1[11.2012 -] 2AZFE..AZE151 2AZ-FE,*195 |
90345-53006 |
US $4.30 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[03.2010 - 09.2013] 2AZFE..AZE151 L=18,OD=8,*194 |
90250-08120 |
from US $1.01 |
||
|
11434A
|
11434A
90250-C0011
Pin, Straight(For Timing Gear Cover Set)
[09.2013 -] 2AZFE..AZE151 L=18,OD=8,(L),*194 |
90250-C0011 |
— | ||
|
11434C
|
11434C
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[03.2010 -] 2AZFE..AZE151 L=12,OD=14,*194 |
90253-14003 |
from US $1.31 |
||
|
11445
|
11445
11445-0H020 Spacer, Cylinder Block Water Jacket[03.2010 -] 2AZFE..AZE151 *194 |
11445-0H020 |
US $29.35 |
||
|
11445
|
11445
11445-28020 Spacer, Cylinder Block Water Jacket[11.2010 -] 2AZFE..AZE151 2AZ-FE,*195 |
11445-28020 |
from US $15.78 |
||
|
11452
|
11452
11452-28040 Guide, Oil Level Gage[11.2010 -] 2AZFE..AZE151 2AZ-FE,*195 |
11452-28040 |
US $18.93 |
||
|
11452
|
11452
11452-28060 Guide, Oil Level Gage[03.2010 -] 2AZFE..AZE151 *194 |
11452-28060 |
US $22.54 |
||
|
11452B
|
11452B
90301-C0007
Ring, O(For Oil Level Gage Guide)
[07.2013 -] 2AZFE..AZE151 (L),*194 |
90301-C0007 |
— | ||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[03.2010 - 07.2013] 2AZFE..AZE151 *194 |
96721-19010 |
from US $1.60 |
||
|
12101
|
12101
12101-0H060 Pan Sub-Assy, Oil[03.2010 -] 2AZFE..AZE151 (L),*194 |
12101-0H060 |
US $225.68 |
||
|
12101
|
12101
12101-28060 Pan Sub-Assy, Oil[03.2010 -] 2AZFE..AZE151 (J),*194 |
12101-28060 |
from US $89.06 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[03.2010 -] 2AZFE..AZE151 *194 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[03.2010 -] 2AZFE..AZE151 *194 |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[03.2010 -] 2AZFE..AZE151 (J),*194 |
90430-12031 |
from US $0.84 |
||
|
12101B
|
12101B
90430-C0005
Gasket(For Oil Pan Drain Plug)
[03.2010 -] 2AZFE..AZE151 (L),*194 |
90430-C0005 |
— | ||
|
15301
|
15301
15301-0H050 Gage Sub-Assy, Oil Level[03.2010 - 01.2013] 2AZFE..AZE151 (L),*194 |
15301-0H050 |
US $13.40 |
||
| replacement | |||||
|
15301
|
15301
15301-0H051
Gage Sub-Assy, Oil Level
[03.2010 - 01.2013] 2AZFE..AZE151 (L),*194 |
15301-0H051 |
— | ||
|
15301
|
15301
15301-0H051
Gage Sub-Assy, Oil Level
[01.2013 -] 2AZFE..AZE151 *194 |
15301-0H051 |
— | ||
|
15301
|
15301
15301-28030 Gage Sub-Assy, Oil Level[03.2010 - 01.2013] 2AZFE..AZE151 (J),*194 |
15301-28030 |
US $13.40 |
||
| replacement | |||||
|
15301
|
15301
15301-28031 Gage Sub-Assy, Oil Level[03.2010 - 01.2013] 2AZFE..AZE151 (J),*194 |
15301-28031 |
from US $10.30 |
||
|
15301
|
15301
15301-28031 Gage Sub-Assy, Oil Level[01.2013 -] 2AZFE..AZE151 2AZ-FE,*195 |
15301-28031 |
from US $10.30 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[03.2010 - 12.2015] 2AZFE..AZE151 *194; 2AZFE..AZE151 2AZ-FE,*194 |
96741-19005 |
from US $2.42 |
||
|
15708
|
15708
15708-28011 Nozzle Sub-Assy, Oil, No.1[03.2010 -] 2AZFE..AZE151 *194 |
15708-28011 |
from US $8.33 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
9011006018
|
9011006018
90110-06018 Bolt(For Rear Steering Worm Control Cam) |
90110-06018 |
from US $0.70 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
from US $0.74 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.23 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $1.08 |
||
|
9091002142
|
9091002142
90910-02142 New Genuine Part |
90910-02142 |
US $3.23 |
||
|
9151281032
|
9151281032
91512-81032 New Genuine Part |
91512-81032 |
US $1.97 |
||
|
9676124020
|
9676124020
96761-24020 RING O |
96761-24020 |
from US $2.24 |
||
