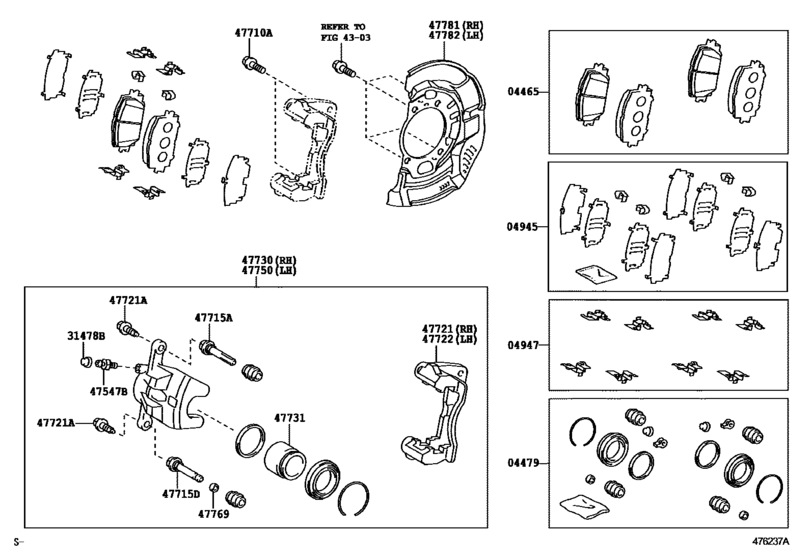

Front Disc Brake Caliper & Dust Cover ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-42160
Pad Kit, Disc Brake, Front
[03.2010 - 09.2012] AZE151 MARK ADVICS PV565H |
04465-42160 |
— | ||
| replacement | |||||
|
04465
|
04465
04465-42200 Pad Kit, Disc Brake, Front[03.2010 - 09.2012] AZE151 MARK ADVICS PV565H |
04465-42200 |
from US $106.10 |
||
|
04465
|
04465
04465-42200 Pad Kit, Disc Brake, Front[09.2012 -] AZE151 MARK ADVICS PV565H |
04465-42200 |
from US $106.10 |
||
|
04479
|
04479
04478-33100 Cylinder Kit, Disc Brake, Front[03.2010 -] AZE151 |
04478-33100 |
from US $30.24 |
||
|
04945
|
04945
04945-12110
Shim Kit, Anti Squeal, Front
[03.2010 - 11.2013] AZE151 |
04945-12110 |
— | ||
| replacement | |||||
|
04945
|
04945
04945-12111 Shim Kit, Anti Squeal, Front[03.2010 - 11.2013] AZE151 |
04945-12111 |
from US $31.08 |
||
|
04945
|
04945
04945-12111 Shim Kit, Anti Squeal, Front[11.2013 -] AZE151 |
04945-12111 |
from US $31.08 |
||
|
04947
|
04947
04947-42050 Fitting Kit, Disc Brake, Front[03.2010 -] AZE151 |
04947-42050 |
from US $34.94 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[03.2010 -] AZE151 |
31478-30010 |
from US $1.60 |
||
|
47547B
|
47547B
47547-20010 Plug, Bleeder(For Release Cylinder)[03.2010 -] AZE151 |
47547-20010 |
from US $3.58 |
||
|
47710A
|
47710A
90105-12208 Bolt, Hexagon(For Front Disc Brake Caliper)[03.2010 - 12.2015] AZE151 *12-1.25PX29.5-23 |
90105-12208 |
from US $1.38 |
||
|
47715A
|
47715A
47715-52190 Pin, Main(For Front Disc Brake Cylinder Slide)[03.2010 -] AZE151 |
47715-52190 |
from US $5.97 |
||
|
47715D
|
47715D
47715-12A10 Pin, Main(For Front Disc Brake Cylinder Slide)[03.2010 -] AZE151 |
47715-12A10 |
from US $6.08 |
||
|
47721
|
47721
47721-12A70 Mounting, Front Disc Brake Cylinder, Rh[03.2010 -] AZE151 |
47721-12A70 |
US $162.36 |
||
|
47721A
|
47721A
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[03.2010 -] AZE151 *8-1.00PX23-15 |
90105-08164 |
from US $0.92 |
||
|
47722
|
47722
47722-12A70 Mounting, Front Disc Brake Cylinder, Lh[03.2010 -] AZE151 |
47722-12A70 |
US $160.72 |
||
|
47730
|
47730
47730-12A70 Cylinder Assy, Front Disc Brake, Rh[03.2010 -] AZE151 |
47730-12A70 |
US $614.64 |
||
|
47731
|
47731
47731-12A70 Piston, Front Disc Brake[03.2010 -] AZE151 |
47731-12A70 |
from US $31.36 |
||
|
47750
|
47750
47750-12A70 Cylinder Assy, Disc Brake, Lh[03.2010 -] AZE151 |
47750-12A70 |
US $614.64 |
||
|
47769
|
47769
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[03.2010 -] AZE151 |
47769-50010 |
from US $0.76 |
||
|
47781
|
47781
47781-12250 Cover, Disc Brake Dust, Front Rh[03.2010 - 12.2015] AZE151 |
47781-12250 |
US $20.33 |
||
|
47782
|
47782
47782-12250 Cover, Disc Brake Dust, Front Lh[03.2010 - 12.2015] AZE151 |
47782-12250 |
US $20.33 |
||
