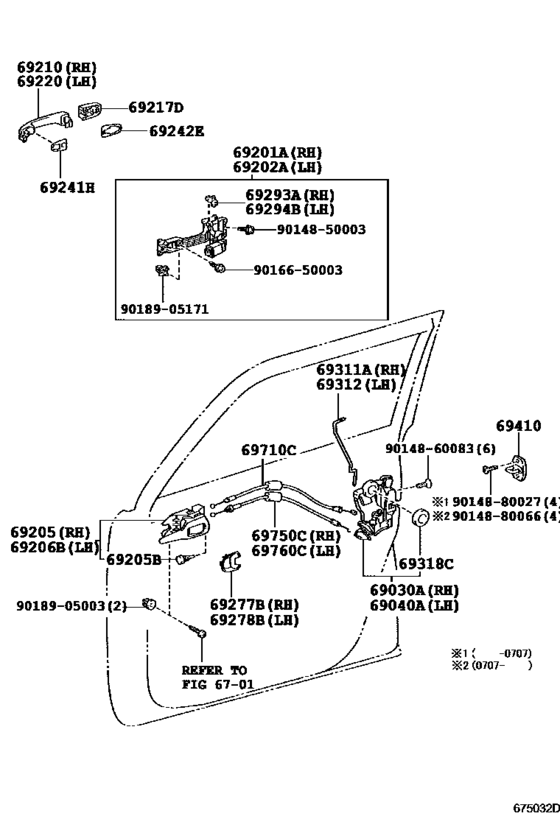

Front Door Lock & Handle ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-42230 Lock Assy, Front Door W/motor, Rh[03.2010 -] AZE151 |
69030-42230 |
from US $150.27 |
||
|
69040A
|
69040A
69040-42250 Lock Assy, Front Door W/motor, Lh[03.2010 -] AZE151 |
69040-42250 |
from US $200 |
||
|
69201A
|
69201A
69201-52040 Frame Sub-Assy, Front Door Outside Handle, Rh[03.2010 -] AZE151 |
69201-52040 |
US $83.47 |
||
|
69202A
|
69202A
69202-52020 Frame Sub-Assy, Front Door Outside Handle, Lh[03.2010 -] AZE151 |
69202-52020 |
from US $53.73 |
||
|
69205
|
69205
69205-12230-B0 Handle Sub-Assy, Front Door Inside, Rh[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
69205-12230-B0 |
US $28.39 |
||
|
69205B
|
69205B
90541-04027 Cushion(For Front Door Inside Handle)[03.2010 -] AZE151 |
90541-04027 |
from US $1.79 |
||
|
69206B
|
69206B
69206-12230-B0 Handle Sub-Assy, Front Door Inside, Lh[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
69206-12230-B0 |
US $28.39 |
||
|
69210
|
69210
69211-12220-05
Handle Assy, Front Door, Outside Rh
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087 |
69211-12220-05 |
— | ||
|
69210
|
69210
69211-12220-A0 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 SUPER WHITE 2,040 |
69211-12220-A0 |
from US $33.23 |
||
|
69210
|
69210
69211-12220-C1 Handle Assy, Front Door, Outside Rh[08.2015 - 10.2015] AZE151..ATM LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5 |
69211-12220-C1 |
US $31.62 |
||
|
69210
|
69210
69211-12220-C2 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 BLACK MC.,209 |
69211-12220-C2 |
from US $27.38 |
||
|
69210
|
69210
69211-12220-K5 Handle Assy, Rear Door Outside, Rh[03.2010 - 01.2013] AZE151 DK.VIOLET M.M.,9AF |
69211-12220-K5 |
US $29.56 |
||
|
69210
|
69210
69211-12220-M1
Handle Assy, Front Door, Outside Rh
[10.2011 - 12.2011] AZE151 LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8 |
69211-12220-M1 |
— | ||
|
69210
|
69210
69211-12220-M2
Handle Assy, Front Door, Outside Rh
[03.2010 - 12.2015] AZE151 ARMY ROCK ME.,4V0 |
69211-12220-M2 |
— | ||
|
69210
|
69210
69211-12220-P6 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 SILVER ME.,1F7 |
69211-12220-P6 |
from US $33.62 |
||
|
69210
|
69210
69211-12220-R7 Handle Assy, Front Door, Outside Rh[03.2010 - 01.2013] AZE151 BLUE ME.,8T4 |
69211-12220-R7 |
US $29.56 |
||
|
69210
|
69210
69211-12220-R8 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 DK.BLUE MC.,8S6 |
69211-12220-R8 |
US $24.61 |
||
|
69210
|
69210
69211-12220-S1
Handle Assy, Front Door, Outside Rh
[05.2013 - 07.2013] AZE151 LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8 |
69211-12220-S1 |
— | ||
|
69210
|
69210
69211-12220-X0 Handle Assy, Front Door, Outside Rh[01.2013 - 12.2015] AZE151 SUPER RED 5,3P0 |
69211-12220-X0 |
US $26.31 |
||
|
69210
|
69210
69211-12220-Y2 Handle Assy, Front Door, Outside RhREAR DOOR OUTSIDE, RH [03.2010 - 12.2015] AZE151 BLACKISH RED MC.,3R0 |
69211-12220-Y2 |
US $24.61 |
||
|
69217D
|
69217D
69217-12040-03
Cover, Front Door Outside Handle
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087,PASSENGER SIDE |
69217-12040-03 |
— | ||
|
69217D
|
69217D
69217-12040-A0 Cover, Front Door Outside Handle[03.2010 - 12.2015] AZE151 SUPER WHITE 2,040,PASSENGER SIDE |
69217-12040-A0 |
US $10.19 |
||
|
69217D
|
69217D
69217-12040-C1 Cover, Back Door Outside Handle[08.2015 - 10.2015] AZE151..ATM LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5,PASSENGER SIDE |
69217-12040-C1 |
from US $13.09 |
||
|
69217D
|
69217D
69217-12040-C2 Cover, Back Door Outside Handle[03.2010 - 12.2015] AZE151 BLACK MC.,209,PASSENGER SIDE |
69217-12040-C2 |
from US $10.80 |
||
|
69217D
|
69217D
69217-12040-D5 Cover, Front Door Outside Handle[01.2013 - 12.2015] AZE151 SUPER RED 5,3P0,PASSENGER SIDE |
69217-12040-D5 |
US $10.19 |
||
|
69217D
|
69217D
69217-12040-K5 Cover, Back Door Outside Handle[03.2010 - 01.2013] AZE151 DK.VIOLET M.M.,9AF,PASSENGER SIDE |
69217-12040-K5 |
US $12.23 |
||
|
69217D
|
69217D
69217-12040-L6
Cover, Front Door Outside Handle
[10.2011 - 12.2011] AZE151 LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8,PASSENGER SIDE |
69217-12040-L6 |
— | ||
|
69217D
|
69217D
69217-12040-L7
Cover, Front Door Outside Handle
[03.2010 - 12.2015] AZE151 ARMY ROCK ME.,4V0,PASSENGER SIDE |
69217-12040-L7 |
— | ||
|
69217D
|
69217D
69217-12040-P1 Cover, Back Door Outside Handle[03.2010 - 12.2015] AZE151 SILVER ME.,1F7,PASSENGER SIDE |
69217-12040-P1 |
US $11.56 |
||
|
69217D
|
69217D
69217-12040-P7
Cover, Front Door Outside Handle
[05.2013 - 07.2013] AZE151 LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8,PASSENGER SIDE |
69217-12040-P7 |
— | ||
|
69217D
|
69217D
69217-12040-R4 Cover, Front Door Outside Handle[03.2010 - 01.2013] AZE151 BLUE ME.,8T4,PASSENGER SIDE |
69217-12040-R4 |
US $12.23 |
||
|
69217D
|
69217D
69217-12040-R5 Cover, Back Door Outside Handle[03.2010 - 12.2015] AZE151 DK.BLUE MC.,8S6,PASSENGER SIDE |
69217-12040-R5 |
US $10.19 |
||
|
69217D
|
69217D
69217-12040-X7 Cover, Back Door Outside HandleFRONT DOOR OUTSIDE HANDLE [03.2010 - 12.2015] AZE151 BLACKISH RED MC.,3R0,PASSENGER SIDE |
69217-12040-X7 |
US $10.19 |
||
|
69217D
|
69217D
69217-42020-07
Cover, Front Door Outside Handle
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087,DRIVER SIDE |
69217-42020-07 |
— | ||
|
69217D
|
69217D
69217-42020-A3 Cover, Front Door Outside Handle[03.2010 - 12.2015] AZE151 SUPER WHITE 2,040,DRIVER SIDE |
69217-42020-A3 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-C0 Cover, Front Door Outside Handle[08.2015 - 10.2015] AZE151..ATM LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5,DRIVER SIDE |
69217-42020-C0 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-C2 Cover, Front Door Outside Handle[03.2010 - 12.2015] AZE151 BLACK MC.,209,DRIVER SIDE |
69217-42020-C2 |
from US $6.28 |
||
|
69217D
|
69217D
69217-42020-K5 Cover, Front Door Outside Handle[03.2010 - 01.2013] AZE151 DK.VIOLET M.M.,9AF,DRIVER SIDE |
69217-42020-K5 |
US $7.28 |
||
|
69217D
|
69217D
69217-42020-M2
Cover, Front Door Outside Handle
[10.2011 - 12.2011] AZE151 LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8,DRIVER SIDE |
69217-42020-M2 |
— | ||
|
69217D
|
69217D
69217-42020-M3
Cover, Front Door Outside Handle
[03.2010 - 12.2015] AZE151 ARMY ROCK ME.,4V0,DRIVER SIDE |
69217-42020-M3 |
— | ||
|
69217D
|
69217D
69217-42020-P6 Cover, Front Door Outside Handle[03.2010 - 12.2015] AZE151 SILVER ME.,1F7,DRIVER SIDE |
69217-42020-P6 |
US $6.88 |
||
|
69217D
|
69217D
69217-42020-R8 Cover, Front Door Outside Handle[03.2010 - 01.2013] AZE151 BLUE ME.,8T4,DRIVER SIDE |
69217-42020-R8 |
US $7.28 |
||
|
69217D
|
69217D
69217-42020-R9 Cover, Front Door Outside Handle[03.2010 - 12.2015] AZE151 DK.BLUE MC.,8S6,DRIVER SIDE |
69217-42020-R9 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-S1
Cover, Front Door Outside Handle
[05.2013 - 07.2013] AZE151 LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8,DRIVER SIDE |
69217-42020-S1 |
— | ||
|
69217D
|
69217D
69217-42020-X0 Cover, Front Door Outside Handle[01.2013 - 12.2015] AZE151 SUPER RED 5,3P0,DRIVER SIDE |
69217-42020-X0 |
US $6.88 |
||
|
69217D
|
69217D
69217-42020-Y2 Cover, Front Door Outside HandleFRONT DOOR OUTSIDE HANDLE [03.2010 - 12.2015] AZE151 BLACKISH RED MC.,3R0,DRIVER SIDE |
69217-42020-Y2 |
US $5.97 |
||
|
69220
|
69220
69211-12220-05
Handle Assy, Front Door, Outside Rh
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087 |
69211-12220-05 |
— | ||
|
69220
|
69220
69211-12220-A0 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 SUPER WHITE 2,040 |
69211-12220-A0 |
from US $33.23 |
||
|
69220
|
69220
69211-12220-C1 Handle Assy, Front Door, Outside Rh[08.2015 - 10.2015] AZE151..ATM LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5 |
69211-12220-C1 |
US $31.62 |
||
|
69220
|
69220
69211-12220-C2 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 BLACK MC.,209 |
69211-12220-C2 |
from US $27.38 |
||
|
69220
|
69220
69211-12220-K5 Handle Assy, Rear Door Outside, Rh[03.2010 - 01.2013] AZE151 DK.VIOLET M.M.,9AF |
69211-12220-K5 |
US $29.56 |
||
|
69220
|
69220
69211-12220-M1
Handle Assy, Front Door, Outside Rh
[10.2011 - 12.2011] AZE151 LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8 |
69211-12220-M1 |
— | ||
|
69220
|
69220
69211-12220-M2
Handle Assy, Front Door, Outside Rh
[03.2010 - 12.2015] AZE151 ARMY ROCK ME.,4V0 |
69211-12220-M2 |
— | ||
|
69220
|
69220
69211-12220-P6 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 SILVER ME.,1F7 |
69211-12220-P6 |
from US $33.62 |
||
|
69220
|
69220
69211-12220-R7 Handle Assy, Front Door, Outside Rh[03.2010 - 01.2013] AZE151 BLUE ME.,8T4 |
69211-12220-R7 |
US $29.56 |
||
|
69220
|
69220
69211-12220-R8 Handle Assy, Front Door, Outside Rh[03.2010 - 12.2015] AZE151 DK.BLUE MC.,8S6 |
69211-12220-R8 |
US $24.61 |
||
|
69220
|
69220
69211-12220-S1
Handle Assy, Front Door, Outside Rh
[05.2013 - 07.2013] AZE151 LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8 |
69211-12220-S1 |
— | ||
|
69220
|
69220
69211-12220-X0 Handle Assy, Front Door, Outside Rh[01.2013 - 12.2015] AZE151 SUPER RED 5,3P0 |
69211-12220-X0 |
US $26.31 |
||
|
69220
|
69220
69211-12220-Y2 Handle Assy, Front Door, Outside RhREAR DOOR OUTSIDE, RH [03.2010 - 12.2015] AZE151 BLACKISH RED MC.,3R0 |
69211-12220-Y2 |
US $24.61 |
||
|
69241H
|
69241H
69241-42020 Pad, Front Door Outside Handle, Rh[03.2010 -] AZE151 |
69241-42020 |
from US $6.34 |
||
|
69242E
|
69242E
69242-52020 Pad, Front Door Outside Handle, Rear[03.2010 -] AZE151 |
69242-52020 |
from US $6.30 |
||
|
69277B
|
69277B
69277-12170-B0 Bezel, Front Door Inside Handle, Rh[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
69277-12170-B0 |
US $5.97 |
||
|
69278B
|
69278B
69278-12170-B0 Bezel, Front Door Inside Handle, Lh[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
69278-12170-B0 |
US $5.97 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[03.2010 -] AZE151 |
69293-12030 |
from US $1.97 |
||
|
69294B
|
69294B
69293-12040 Snap, Front Door Outside Handle[03.2010 -] AZE151 |
69293-12040 |
from US $1.93 |
||
|
69311A
|
69311A
69311-12180 Rod, Front Door Lock Open, Rh[03.2010 -] AZE151 |
69311-12180 |
US $6.12 |
||
|
69312
|
69312
69312-12180 Rod, Front Door Lock Open, Lh[03.2010 -] AZE151 |
69312-12180 |
US $6.12 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[03.2010 -] AZE151 |
69318-51010 |
US $2.15 |
||
|
69410
|
69410
69410-33010 Plate Assy, Front Door Lock Striker[03.2010 -] AZE151 |
69410-33010 |
from US $18.04 |
||
|
69710C
|
69710C
69710-12140 Cable Assy, Front Door Lock Remote Control[03.2010 -] AZE151 |
69710-12140 |
US $15.58 |
||
|
69750C
|
69750C
69750-12170 Cable Assy, Front Door Inside Locking, Rh[03.2010 -] AZE151 |
69750-12170 |
US $15.58 |
||
|
69760C
|
69760C
69750-12170 Cable Assy, Front Door Inside Locking, Rh[03.2010 -] AZE151 |
69750-12170 |
US $15.58 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.66 |
||
|
9014860083
|
9014860083
90148-60083 SCREW HEXALOBULAR |
90148-60083 |
US $1.08 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $8.06 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.66 |
||
|
9016650003
|
9016650003
90166-50003 New Genuine Part |
90166-50003 |
US $0.73 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9018905171
|
9018905171
90189-05171 New Genuine Part |
90189-05171 |
US $2.15 |
