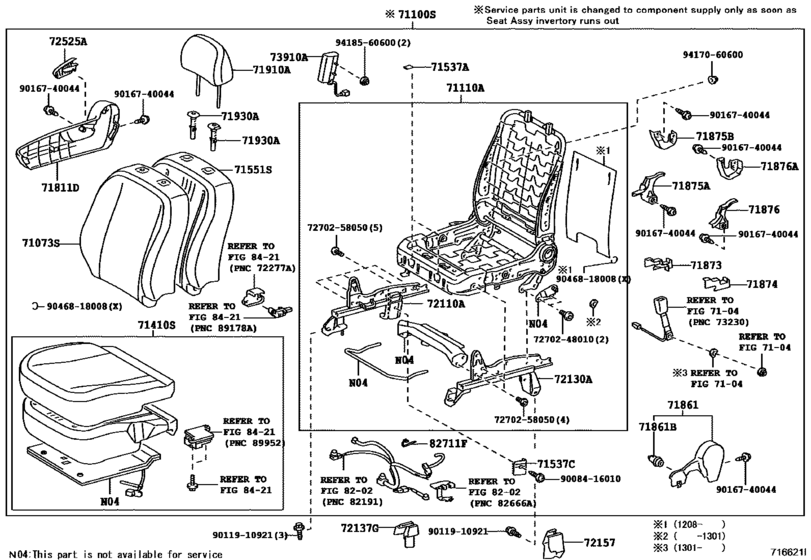

Front Seat & Seat Track ([03.2010 - ] PASSENGER SEAT (1003- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71073S
|
71073S
71073-12V20-B2
Cover, Front Seat Back, Rh(For Separate Type)
[03.2010 - 01.2013] AZE151 DK.GRAY,TRIM1# |
71073-12V20-B2 |
— | ||
|
71073S
|
71073S
71073-12W00-B0
Cover, Front Seat Back, Rh(For Separate Type)
[01.2013 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71073-12W00-B0 |
— | ||
|
71073S
|
71073S
71073-1AD00-C0
Cover, Front Seat Back, Rh(For Separate Type)
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,BLACK,TRIM10 |
71073-1AD00-C0 |
— | ||
|
71100S
|
71100S
71100-1AB40-B3
Seat Assy, Front Rh
[03.2010 - 01.2013] AZE151 DK.GRAY,TRIM1# |
71100-1AB40-B3 |
— | ||
|
71100S
|
71100S
71100-1AL80-C0
Seat Assy, Front Rh
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,BLACK,TRIM10 |
71100-1AL80-C0 |
— | ||
|
71100S
|
71100S
71100-1AP00-B0
Seat Assy, Front Rh
[01.2013 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71100-1AP00-B0 |
— | ||
|
71110A
|
71110A
71110-12430
Frame Assy, Front Seat W/adjuster, Rh
[01.2013 - 03.2013] AZE151 |
71110-12430 |
— | ||
| replacements | |||||
|
71110A
|
71110A
71110-12431
Frame Assy, Front Seat W/adjuster, Rh
[01.2013 - 03.2013] AZE151 |
71110-12431 |
— | ||
|
71110A
|
71110A
73214-75010 Plate, Front Seat Belt Anchor[01.2013 - 03.2013] AZE151 |
73214-75010 |
US $3.05 |
||
|
71110A
|
71110A
71110-12431
Frame Assy, Front Seat W/adjuster, Rh
[03.2013 - 12.2015] AZE151 |
71110-12431 |
— | ||
|
71110A
|
71110A
71110-12610
Frame Assy, Front Seat W/adjuster, Rh
[03.2010 - 01.2013] AZE151 |
71110-12610 |
— | ||
|
71410S
|
71410S
71001-1EV20-B0 Cushion Assy, Front Seat, Rh(For Separate Type)FRONT SEAT, RH(FOR SEPARATE TYPE) [03.2010 - 01.2013] AZE151 DK.GRAY,TRIM1# |
71001-1EV20-B0 |
US $819.73 |
||
|
71410S
|
71410S
71001-1EV20-B1
Cushion Assy, Front Seat, Rh(For Separate Type)
[01.2013 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71001-1EV20-B1 |
— | ||
|
71410S
|
71410S
71001-1HB20-C0
Cushion Assy, Front Seat, Rh(For Separate Type)
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,BLACK,TRIM10 |
71001-1HB20-C0 |
— | ||
|
71537A
|
71537A
71537-26010 Protector, Front Seat Cushion[03.2010 -] AZE151 |
71537-26010 |
US $1.08 |
||
|
71537C
|
71537C
71537-12040-B0 Protector, Front Seat Cushion Edge, RhFRONT SEAT CUSHION EDGE, RH [03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71537-12040-B0 |
US $11.50 |
||
|
71551S
|
71551S
71551-12C80
Pad, Front Seat Back, Rh(For Separate Type)
[03.2010 - 01.2013] AZE151 |
71551-12C80 |
— | ||
|
71551S
|
71551S
71551-12E00
Pad, Front Seat Back, Rh(For Separate Type)
[01.2013 -] AZE151 |
71551-12E00 |
— | ||
|
71811D
|
71811D
71811-12490-B0
Shield, Front Seat Cushion, Rh
[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71811-12490-B0 |
— | ||
|
71861
|
71861
71861-12360-B0
Shield, Front Seat Cushion, Inner Rh
[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71861-12360-B0 |
— | ||
|
71861B
|
71861B
71769-33020 Clip, Front Seat Cushion Shield, Lh[03.2010 -] AZE151 |
71769-33020 |
US $0.87 |
||
|
71873
|
71873
71873-42030 Shield, Front Seat Cushion, Lower Rh[03.2010 -] AZE151 |
71873-42030 |
from US $9.83 |
||
|
71874
|
71874
71874-42020 Shield, Front Seat Cushion, Lower Lh[03.2010 -] AZE151 |
71874-42020 |
US $9.22 |
||
|
71875A
|
71875A
71875-42050-B0 Cover, Reclining Adjuster Inside, Rh[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71875-42050-B0 |
US $4.37 |
||
|
71875B
|
71875B
71875-58060 Cover, Reclining Adjuster Inside, Rh[03.2010 -] AZE151 |
71875-58060 |
US $8.88 |
||
|
71876
|
71876
71876-42050-B0 Cover, Reclining Adjuster Inside, Lh[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71876-42050-B0 |
US $4.37 |
||
|
71876A
|
71876A
71876-58060 Cover, Reclining Adjuster Inside, Rh[03.2010 -] AZE151 |
71876-58060 |
US $8.88 |
||
|
71910A
|
71910A
71910-12E90-B3 Headrest Assy, Front SeatFRONT SEAT [03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
71910-12E90-B3 |
US $256.26 |
||
|
71910A
|
71910A
71910-12G70-B0
Headrest Assy, Front Seat
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10 |
71910-12G70-B0 |
— | ||
|
71930A
|
71930A
71930-44020-B0 Support Assy, Front Seat Headrest[03.2010 - 12.2015] AZE151 W(LOCK),DK.GRAY,TRIM1# |
71930-44020-B0 |
US $11.36 |
||
|
71930A
|
71930A
71931-47010-B2 Support Assy, Front Seat Headrest[03.2010 - 12.2015] AZE151 W/O(LOCK),DK.GRAY,TRIM1# |
71931-47010-B2 |
US $6.99 |
||
|
72110A
|
72110A
72110-12260
Track Assy, Front Seat, Outer Rh
[03.2010 -] AZE151 |
72110-12260 |
— | ||
|
72130A
|
72130A
72130-12860
Track Assy, Front Seat, Inner Rh
[03.2010 -] AZE151 |
72130-12860 |
— | ||
|
72137G
|
72137G
72137-12200-B0 Cover, Seat Track, Outer Rh[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
72137-12200-B0 |
US $21.69 |
||
|
72157
|
72157
72157-12180-B0 Cover, Seat Track Bracket, Inner[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
72157-12180-B0 |
US $19.22 |
||
|
72525A
|
72525A
72525-42010-B0
Handle, Reclining Adjuster Release, Rh
[03.2010 - 12.2015] AZE151 DK.GRAY,TRIM1# |
72525-42010-B0 |
— | ||
|
73910A
|
73910A
73910-12110
Air Bag Assy, Front Seat, Rh
[03.2010 - 01.2013] AZE151 |
73910-12110 |
— | ||
|
73910A
|
73910A
73910-12140
Air Bag Assy, Front Seat, Rh
[01.2013 -] AZE151 |
73910-12140 |
— | ||
|
82711F
|
82711F
82711-10070 Clamp, Wiring Harness[03.2010 -] AZE151 |
82711-10070 |
US $3.20 |
||
|
7270248010
|
7270248010
72702-48010 Bracket Sub-assy, Rear Seat Back Striker |
72702-48010 |
US $1.60 |
||
|
7270258050
|
7270258050
72702-58050 Bracket Sub-assy, Rear Seat Back Striker |
72702-58050 |
US $1.46 |
||
|
9008416010
|
9008416010
90084-16010 New Genuine Part |
90084-16010 |
US $1.08 |
||
|
9011910921
|
9011910921
90119-10921 BOLT WWASHER |
90119-10921 |
from US $0.92 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.72 |
||
|
9046818008
|
9046818008
90468-18008 Clip (For Rear Seat Back) |
90468-18008 |
from US $0.72 |
||
| replacement | |||||
|
9046818008
|
9046818008
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9417060600
|
9417060600
94170-60600 NUT CAP |
94170-60600 |
US $1.08 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.72 |
||
