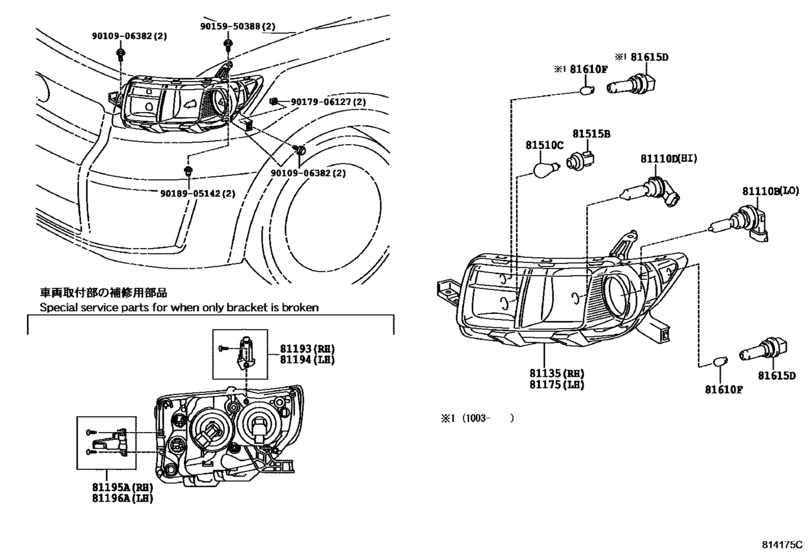

Headlamp ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90981-13082
Bulb(For Headlamp, No.1)
[03.2010 -] AZE151 12V 55W,HALOGEN |
90981-13082 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13075 Bulb(For Headlamp, No.1)[03.2010 -] AZE151 12V 55W,HALOGEN |
90981-13075 |
from US $17.43 |
||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[03.2010 -] AZE151 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.97 |
||
|
81135
|
81135
81130-12E20 Unit Assy, Headlamp, RhHEADLAMP, RH [03.2010 -] AZE151 |
81130-12E20 |
US $446.99 |
||
|
81175
|
81175
81170-12E20 Unit Assy, Headlamp, LhHEADLAMP, LH [03.2010 -] AZE151 |
81170-12E20 |
US $446.99 |
||
|
81193
|
81193
81193-12070 Retainer, Headlamp Protector, Upper RhHEADLAMP PROTECTOR, UPR RH [03.2010 -] AZE151 |
81193-12070 |
US $4.80 |
||
|
81194
|
81194
81194-12060 Retainer, Headlamp Protector, Upper LhHEADLAMP PROTECTOR, UPR LH [03.2010 -] AZE151 |
81194-12060 |
US $4.80 |
||
|
81195A
|
81195A
81195-12070 Retainer, Headlamp Protector, Lower RhHEADLAMP PROTECTOR, LWR RH [03.2010 -] AZE151 |
81195-12070 |
US $10.77 |
||
|
81196A
|
81196A
81196-12070 Retainer, Headlamp Protector, Lower LhHEADLAMP PROTECTOR, LWR LH [03.2010 -] AZE151 |
81196-12070 |
US $10.77 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[03.2010 -] AZE151 12V 21W,AMBER |
90981-15011 |
from US $4.60 |
||
|
81515B
|
81515B
81515-42050 Plug Assy, Front Turn Signal Lamp[03.2010 -] AZE151 |
81515-42050 |
from US $10.41 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[03.2010 -] AZE151 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[03.2010 -] AZE151 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[03.2010 -] AZE151 |
90075-60077 |
from US $5.97 |
||
|
9010906382
|
9010906382
90109-06382 BOLT |
90109-06382 |
from US $0.54 |
||
|
9015950388
|
9015950388
90159-50388 SCREW, W/WASHER |
90159-50388 |
from US $0.62 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.76 |
||
