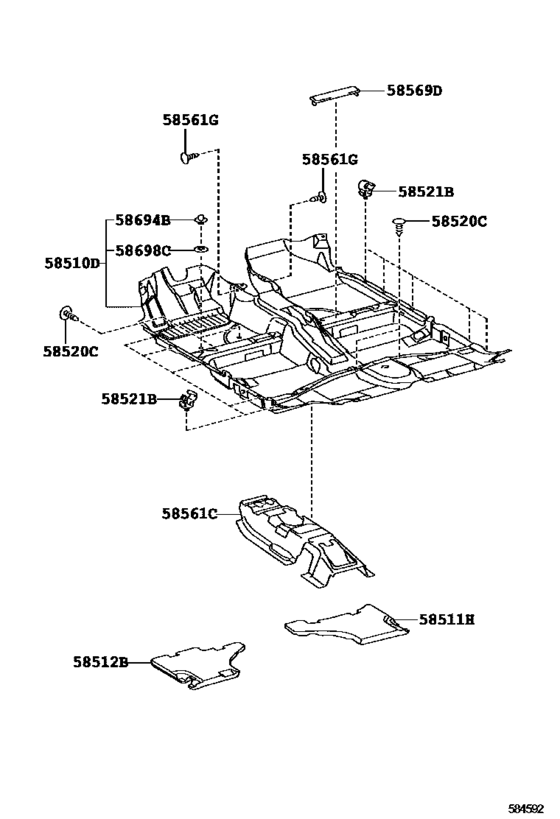

Mat & Carpet ([01.2013 - ] (1301- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510D
|
58510D
58510-12F20-B1 Carpet Assy, Floor, FrontFLOOR, FRONT [03.2010 - 01.2013] AZE151..ATM DK. GREY,TRIM1# |
58510-12F20-B1 |
US $594.05 |
||
|
58510D
|
58510D
58510-12L00-B0
Carpet Assy, Floor, Front
[01.2013 - 12.2015] AZE151..ATM DK. GREY,TRIM1# |
58510-12L00-B0 |
— | ||
|
58511H
|
58511H
58512-12260 Mat, Floor, Front Rh[03.2010 -] AZE151 |
58512-12260 |
US $25.48 |
||
|
58512B
|
58512B
58511-12680 Mat, Floor, Front Lh[03.2010 -] AZE151 |
58511-12680 |
US $25.48 |
||
|
58520C
|
58520C
90467-07049-B7 Clip(For Front Floor Carpet)[03.2010 - 12.2013] AZE151 DK.GRAY,TRIM1# |
90467-07049-B7 |
US $1.79 |
||
|
58520C
|
58520C
90467-07049-C0 Clip[12.2013 - 12.2015] AZE151 BLACK,TRIM1# |
90467-07049-C0 |
US $1.79 |
||
|
58521B
|
58521B
58521-12140 Hook, Floor Carpet[03.2010 -] AZE151 |
58521-12140 |
from US $6.30 |
||
|
58561C
|
58561C
58561-12041 Silencer, Front Floor, No.1FRONT FLOOR, NO.1 [03.2010 -] AZE151 |
58561-12041 |
US $104.83 |
||
|
58561G
|
58561G
90467-05164-B2 Clip(For Front Floor Carpet)[03.2010 - 12.2013] AZE151 DK.GRAY,TRIM1# |
90467-05164-B2 |
from US $0.78 |
||
|
58561G
|
58561G
90467-05164-C0 Clip(For Deck Boad)[12.2013 - 12.2015] AZE151 BLACK,TRIM1# |
90467-05164-C0 |
from US $0.68 |
||
|
58569D
|
58569D
58569-12010-B0 Cover, Front Floor Caution Plate[03.2010 - 08.2015] AZE151 DK.GRAY,TRIM1# |
58569-12010-B0 |
US $9.46 |
||
|
58569D
|
58569D
58569-12010-C0 Cover, Front Floor Caution Plate[08.2015 - 12.2015] AZE151 BLACK,TRIM1# |
58569-12010-C0 |
US $12.72 |
||
|
58694B
|
58694B
58694-76010 Plate, Mat Set, Upper[01.2013 -] AZE151 |
58694-76010 |
from US $3.32 |
||
|
58698C
|
58698C
58698-76010 Plate, Mat Set, Lower[01.2013 -] AZE151 |
58698-76010 |
from US $2.34 |
