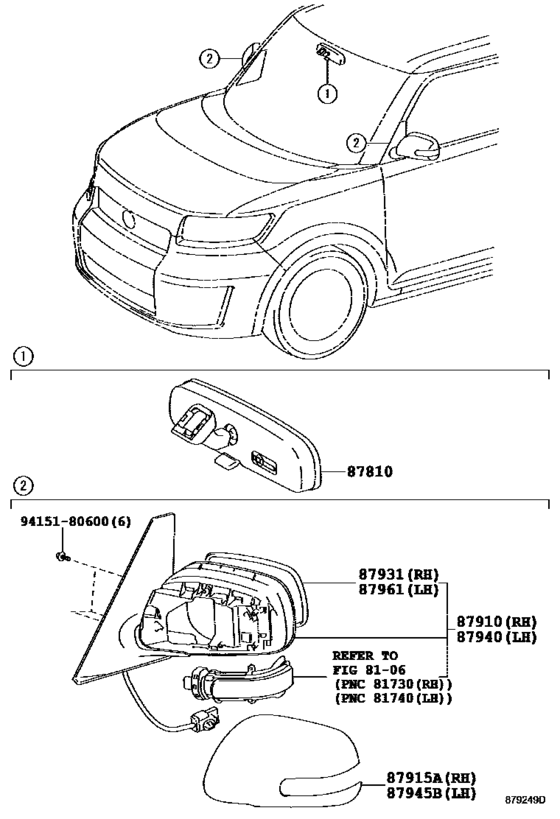

Mirror ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-52041 Mirror Assy, Inner Rear View[03.2010 - 12.2015] AZE151 |
87810-52041 |
from US $80.46 |
||
|
87910
|
87910
87910-12G70
Mirror Assy, Outer Rear View, Rh
[03.2010 -] AZE151..CND |
87910-12G70 |
— | ||
|
87915A
|
87915A
87915-22050-A1 Cover, Outer Mirror, Rh[03.2010 - 12.2015] AZE151 SUPER WHITE 2,040 |
87915-22050-A1 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-A4
Cover, Outer Mirror, Rh
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087 |
87915-22050-A4 |
— | ||
|
87915A
|
87915A
87915-22050-B0 Cover, Outer Mirror, Rh[03.2010 - 12.2015] AZE151 SILVER ME.,1F7 |
87915-22050-B0 |
from US $39.88 |
||
|
87915A
|
87915A
87915-22050-B7
Cover, Outer Mirror, Rh
[05.2013 - 07.2013] AZE151 LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8 |
87915-22050-B7 |
— | ||
|
87915A
|
87915A
87915-22050-C0 Cover, Outer Mirror, Rh[08.2015 - 10.2015] AZE151..ATM LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5 |
87915-22050-C0 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-C1 Cover, Outer Mirror, Rh[03.2010 - 12.2015] AZE151 BLACK MC.,209 |
87915-22050-C1 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-D0 Cover, Outer Mirror, Rh[03.2010 - 12.2015] AZE151 BLACKISH RED MC.,3R0 |
87915-22050-D0 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-D1 Cover, Outer Mirror, Rh[01.2013 - 12.2015] AZE151 SUPER RED 5,3P0 |
87915-22050-D1 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-E1 Cover, Outer Mirror, RhOUTER MIRROR, RH [03.2010 - 12.2015] AZE151 ARMY ROCK ME.,4V0 |
87915-22050-E1 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-E2
Cover, Outer Mirror, Rh
[10.2011 - 12.2011] AZE151 LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGR ME.,4R8 |
87915-22050-E2 |
— | ||
|
87915A
|
87915A
87915-22050-J0 Cover, Outer Mirror, Rh[01.2013 - 12.2015] AZE151 DK.BLUE MC.,8S6 |
87915-22050-J0 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-J2 Cover, Outer Mirror, Rh[03.2010 - 01.2013] AZE151 BLUE ME.,8T4 |
87915-22050-J2 |
US $62.16 |
||
|
87915A
|
87915A
87915-22050-K0 Cover, Outer Mirror, RhOUTER MIRROR, RH [03.2010 - 01.2013] AZE151 DK.VIOLET M.M.,9AF |
87915-22050-K0 |
US $41.50 |
||
|
87931
|
87931
87931-12G70
Outer Mirror, Rh
[03.2010 -] AZE151..CND |
87931-12G70 |
— | ||
|
87940
|
87940
87940-12G70
Mirror Assy, Outer Rear View, Lh
[03.2010 -] AZE151..CND |
87940-12G70 |
— | ||
|
87945B
|
87945B
87945-22030-A1 Cover, Outer Mirror, Lh[03.2010 - 12.2015] AZE151 SUPER WHITE 2,040 |
87945-22030-A1 |
from US $39.02 |
||
|
87945B
|
87945B
87945-22030-A4
Cover, Outer Mirror, Lh
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087 |
87945-22030-A4 |
— | ||
|
87945B
|
87945B
87945-22030-B0 Cover, Outer Mirror, Lh[03.2010 - 12.2015] AZE151 SILVER ME.,1F7 |
87945-22030-B0 |
from US $44.28 |
||
|
87945B
|
87945B
87945-22030-B7
Cover, Outer Mirror, Lh
[05.2013 - 07.2013] AZE151 LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8 |
87945-22030-B7 |
— | ||
|
87945B
|
87945B
87945-22030-C0 Cover, Outer Mirror, Lh[08.2015 - 10.2015] AZE151..ATM LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5 |
87945-22030-C0 |
US $62.16 |
||
|
87945B
|
87945B
87945-22030-C1 Cover, Outer Mirror, Lh[03.2010 - 12.2015] AZE151 BLACK MC.,209 |
87945-22030-C1 |
US $62.16 |
||
|
87945B
|
87945B
87945-22030-D0 Cover, Outer Mirror, Lh[03.2010 - 12.2015] AZE151 BLACKISH RED MC.,3R0 |
87945-22030-D0 |
US $62.16 |
||
|
87945B
|
87945B
87945-22030-D1 Cover, Outer Mirror, Lh[01.2013 - 12.2015] AZE151 SUPER RED 5,3P0 |
87945-22030-D1 |
US $62.16 |
||
|
87945B
|
87945B
87945-22030-E1 Cover, Outer Mirror, LhOUTER MIRROR, LH [03.2010 - 12.2015] AZE151 ARMY ROCK ME.,4V0 |
87945-22030-E1 |
US $62.16 |
||
|
87945B
|
87945B
87945-22030-E2
Cover, Outer Mirror, Lh
[10.2011 - 12.2011] AZE151 LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8 |
87945-22030-E2 |
— | ||
|
87945B
|
87945B
87945-22030-J0 Cover, Outer Mirror, Lh[01.2013 - 12.2015] AZE151 DK.BLUE MC.,8S6 |
87945-22030-J0 |
US $62.16 |
||
|
87945B
|
87945B
87945-22030-J2 Cover, Outer Mirror, Lh[03.2010 - 01.2013] AZE151 BLUE ME.,8T4 |
87945-22030-J2 |
US $62.16 |
||
|
87945B
|
87945B
87945-22030-K0 Cover, Outer Mirror, LhOUTER MIRROR, LH [03.2010 - 01.2013] AZE151 DK.VIOLET M.M.,9AF |
87945-22030-K0 |
US $41.50 |
||
|
87961
|
87961
87961-12G70
Mirror Outer, Lh
[03.2010 -] AZE151..CND |
87961-12G70 |
— | ||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
