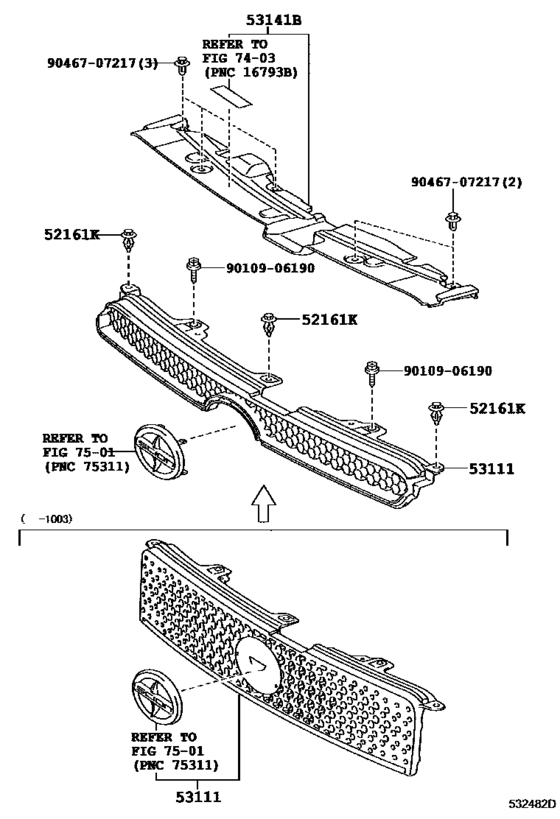

Radiator Grille ([03.2007 - ] (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161K
|
52161K
52161-16010 Clip[03.2010 - 12.2015] AZE151 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161K
|
52161K
52161-0K040 Clip[03.2010 - 12.2015] AZE151 |
52161-0K040 |
from US $1.50 |
||
|
52161K
|
52161K
52161-02020 Clip[03.2010 - 12.2015] AZE151 |
52161-02020 |
US $5.27 |
||
|
53111
|
53111
53111-12C70 Grille, RadiatorRADIATOR [03.2010 -] AZE151 |
53111-12C70 |
from US $74.20 |
||
|
53141B
|
53141B
53141-12200 Garnish, Radiator Grille, No.1RADIATOR GRILLE, NO.1 [03.2010 -] AZE151 |
53141-12200 |
US $43.10 |
||
|
9010906190
|
9010906190
90109-06190 BOLT |
90109-06190 |
US $4.48 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $0.80 |
||
