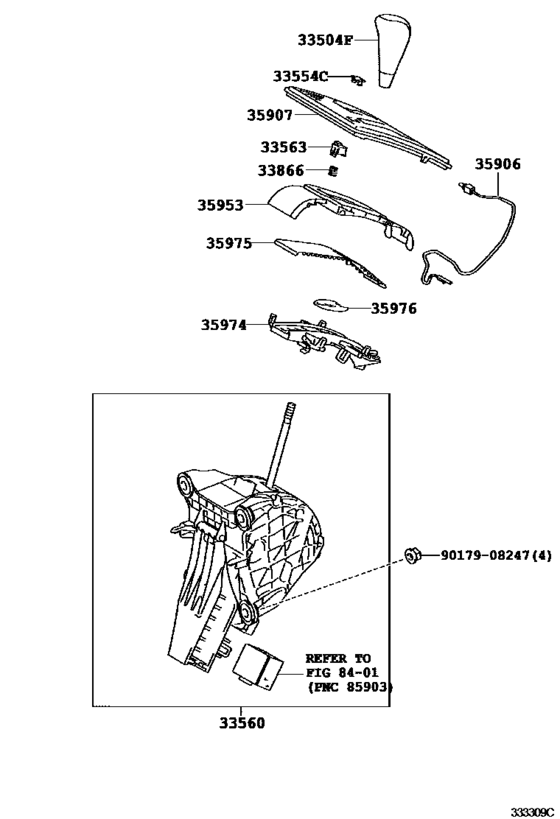

Shift Lever & Retainer ([03.2007 - ] (0703- )ATM) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-12430-B0 Knob Sub-Assy, Shift Lever[03.2010 - 12.2015] AZE151..ATM DK.GRAY,TRIM1# |
33504-12430-B0 |
US $33.63 |
||
|
33554C
|
33554C
33554-12140
Cover, Shift Lock Release Button
[03.2010 -] AZE151..ATM |
33554-12140 |
— | ||
|
33560
|
33560
33560-12330
Unit Assy, Shift Lock Control
[03.2010 -] AZE151..ATM |
33560-12330 |
— | ||
|
33563
|
33563
33563-12290
Button, Shift Lock Release
[03.2010 -] AZE151..ATM |
33563-12290 |
— | ||
|
33866
|
33866
33866-12050 Spring, Shift Lock Release[03.2010 -] AZE151..ATM |
33866-12050 |
US $1.02 |
||
|
35906
|
35906
35906-12290
Wire Sub-Assy, Indicator Lamp
[03.2010 -] AZE151..ATM |
35906-12290 |
— | ||
|
35907
|
35907
35907-12440
Housing Sub-Assy, Position Indicator (For Floor Shift)
[03.2010 - 12.2012] AZE151..ATM |
35907-12440 |
— | ||
| replacement | |||||
|
35907
|
35907
35907-12750
Housing Sub-Assy, Position Indicator (For Floor Shift)
[03.2010 - 12.2012] AZE151..ATM |
35907-12750 |
— | ||
|
35907
|
35907
35907-12530
Housing Sub-Assy, Position Indicator (For Floor Shift)
[05.2014 - 07.2014] AZE151..ATM LIMITED PACKAGE-XB RELEAS SERIES 10.0 |
35907-12530 |
— | ||
|
35907
|
35907
35907-12750
Housing Sub-Assy, Position Indicator (For Floor Shift)
[01.2013 -] AZE151..ATM |
35907-12750 |
— | ||
|
35953
|
35953
35953-12130
Guide, Position Indicator Light
[03.2010 -] AZE151..ATM |
35953-12130 |
— | ||
|
35974
|
35974
35974-12300
Housing, Position Indicator, Lower
[03.2010 -] AZE151..ATM |
35974-12300 |
— | ||
|
35975
|
35975
35975-52090 Cover, Slide (For Position Indicator)[03.2010 -] AZE151..ATM |
35975-52090 |
US $1.89 |
||
|
35976
|
35976
35976-52090 Cover, Slide, No.2 (For Position Indicator)[03.2010 -] AZE151..ATM |
35976-52090 |
US $5.39 |
||
|
9017908247
|
9017908247
90179-08247 New Genuine Part |
90179-08247 |
US $1.79 |
||
