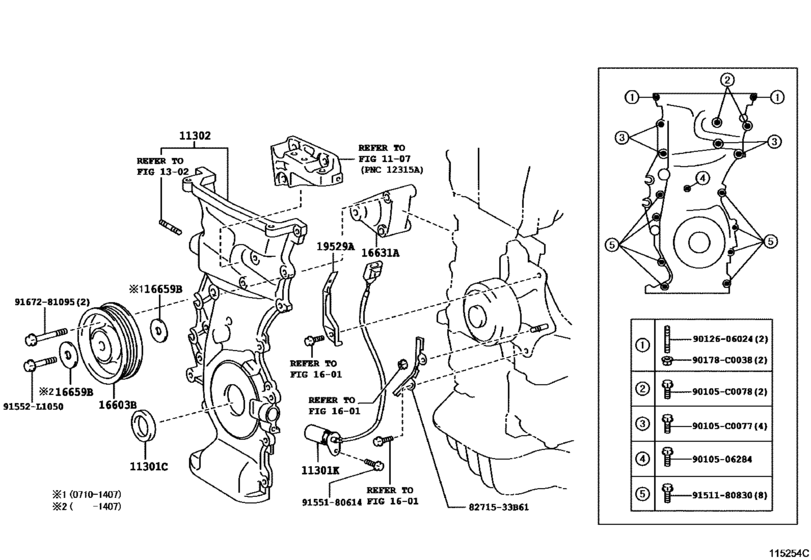

Timing Gear Cover & Rear End Plate ([03.2007 - ] *194 (0703- )) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90311-38089 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[11.2010 - 04.2012] 2AZFE..AZE151 2AZ-FE,*195 |
90311-38089 |
from US $7.17 |
||
|
11301C
|
11301C
90311-38098 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[04.2012 -] 2AZFE..AZE151 2AZ-FE,*195 |
90311-38098 |
from US $7.17 |
||
|
11301C
|
11301C
90311-C0025
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[04.2012 -] 2AZFE..AZE151 *194 |
90311-C0025 |
— | ||
|
11301C
|
11301C
90311-T0024
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[03.2010 - 04.2012] 2AZFE..AZE151 *194 |
90311-T0024 |
— | ||
|
11301K
|
11301K
90919-05047 Sensor, Crank Position[11.2010 -] 2AZFE..AZE151 2AZ-FE,*195 |
90919-05047 |
from US $80.87 |
||
|
11301K
|
11301K
90919-05067 Sensor, Crank Position[03.2010 -] 2AZFE..AZE151 *194 |
90919-05067 |
from US $90.21 |
||
|
11302
|
11302
11310-0H070 Cover Sub-Assy, Timing Chain Or Belt[03.2010 -] 2AZFE..AZE151 (L),*194 |
11310-0H070 |
US $145.60 |
||
|
11302
|
11302
11310-28090 Cover Sub-Assy, Timing Chain Or Belt[03.2010 -] 2AZFE..AZE151 (J),*194 |
11310-28090 |
US $228.80 |
||
|
16603B
|
16603B
16603-28020 Pulley Sub-Assy, Idler[03.2010 - 07.2014] 2AZFE..AZE151 *194 |
16603-28020 |
from US $55.48 |
||
|
16603B
|
16603B
16603-28050 Pulley Sub-Assy, Idler[07.2014 -] 2AZFE..AZE151 *194; 2AZFE..AZE151 2AZ-FE,*195 |
16603-28050 |
from US $53.86 |
||
|
16631A
|
16631A
16631-28031 Bracket, Idler Pulley[03.2010 -] 2AZFE..AZE151 *194 |
16631-28031 |
US $54.16 |
||
|
16659B
|
16659B
16659-31011 Plate, Idler Pulley Cover, No.2[03.2010 - 07.2014] 2AZFE..AZE151 *194 |
16659-31011 |
from US $1.83 |
||
| replacement | |||||
|
16659B
|
16659B
16659-AD010 Plate, Idler Pulley Cover, No.2[03.2010 - 07.2014] 2AZFE..AZE151 *194 |
16659-AD010 |
US $6.03 |
||
|
19529A
|
19529A
19529-28030 Clamp[11.2010 -] 2AZFE..AZE151 2AZ-FE,*195 |
19529-28030 |
US $2.77 |
||
|
19529A
|
19529A
19529-28050 Clamp[03.2010 -] 2AZFE..AZE151 *194 |
19529-28050 |
US $4.37 |
||
|
90105C0077
|
90105C0077
90105-C0077
New Genuine Part
|
90105-C0077 |
— | ||
|
90105C0078
|
90105C0078
90105-C0078
New Genuine Part
|
90105-C0078 |
— | ||
|
90178C0038
|
90178C0038
90178-C0038 New Genuine Part |
90178-C0038 |
US $1.46 |
||
|
91552L1050
|
91552L1050
91552-L1050 BOLT FLANGE |
91552-L1050 |
US $3.23 |
||
|
8271533B61
|
8271533B61
82715-33B61 Bracket,wiring Harness Clamp |
82715-33B61 |
US $3.20 |
||
|
9010506284
|
9010506284
90105-06284 New Genuine Part |
90105-06284 |
US $0.73 |
||
|
9012606024
|
9012606024
90126-06024 STUD HEX LOBULAR |
90126-06024 |
US $1.79 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.58 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9167281095
|
9167281095
91672-81095 BOLT FLANGE |
91672-81095 |
US $3.16 |
||
