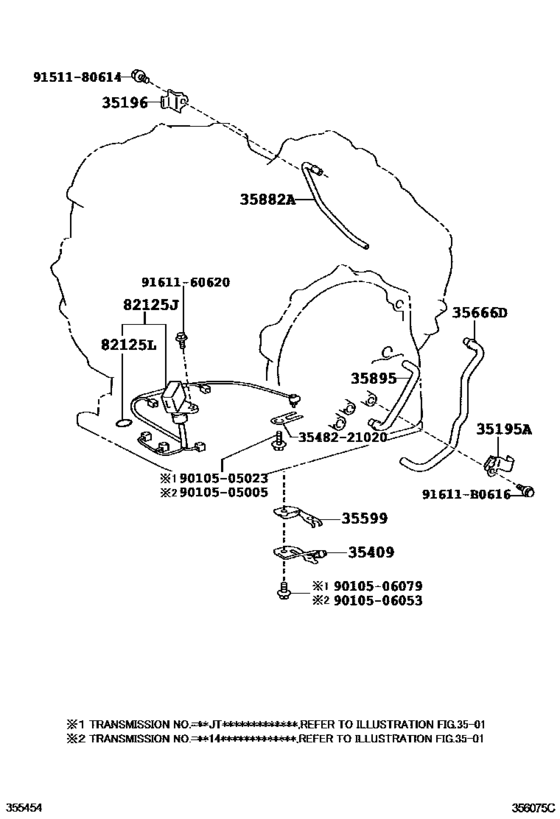

Valve Body & Oil Strainer (Atm) ([03.2007 - ] U241E (0703- )ATM) Diagram Toyota SCION XB
- Year
- 2010 - 2015
- Sales region
- U.S.A.
- Frame
- AZE151
- body
- HB
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 03.2010
- To
- 12.2015
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35195A
|
35195A
35195-21010 Clamp, Transaxle Apply Tube, No.1[03.2010 -] AZE151..ATM |
35195-21010 |
US $4.89 |
||
|
35196
|
35196
35196-21010 Clamp, Transaxle Apply Tube, No.2[03.2010 -] AZE151..ATM |
35196-21010 |
US $3.06 |
||
|
35409
|
35409
35409-21010 Spring Sub-Assy, Manual Detent[03.2010 -] AZE151..ATM |
35409-21010 |
US $5.39 |
||
|
35599
|
35599
35599-21010 Cover, Manual Detent Spring[03.2010 -] AZE151..ATM |
35599-21010 |
US $3.06 |
||
|
35666D
|
35666D
35666-28020 Tube, Brake Apply[10.2013 -] AZE151..ATM *345 |
35666-28020 |
US $4.80 |
||
|
35666D
|
35666D
35666-32010 Tube, Brake Apply[03.2010 - 10.2013] AZE151..ATM *344 |
35666-32010 |
US $6.99 |
||
|
35882A
|
35882A
35882-28020 Tube, Differential Gear Lube Apply[10.2013 -] AZE151..ATM *345 |
35882-28020 |
US $8.30 |
||
|
35882A
|
35882A
35882-32020 Tube, Differential Gear Lube Apply[03.2010 - 10.2013] AZE151..ATM *344 |
35882-32020 |
US $4.37 |
||
|
35895
|
35895
35895-21010 Tube, Front Clutch Apply[03.2010 - 10.2013] AZE151..ATM *344 |
35895-21010 |
US $5.39 |
||
|
35895
|
35895
35895-28010
Tube, Front Clutch Apply
[10.2013 -] AZE151..ATM *345 |
35895-28010 |
— | ||
|
82125J
|
82125J
82125-33110 Wire, Transmission[03.2010 - 12.2015] AZE151..ATM |
82125-33110 |
US $24.02 |
||
|
82125L
|
82125L
90301-21009 Ring, O(For Transmission Wire)[03.2010 - 12.2015] AZE151..ATM |
90301-21009 |
from US $2.22 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
3548221020
|
3548221020
35482-21020 Clamp, Temperature Sensor |
35482-21020 |
US $1.75 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010505023
|
9010505023
90105-05023 New Genuine Part |
90105-05023 |
US $1.02 |
||
|
9010506053
|
9010506053
90105-06053 Bolt(For Sensor Rotor Adapter) |
90105-06053 |
US $1.25 |
||
|
9010506079
|
9010506079
90105-06079 BOLT |
90105-06079 |
US $0.52 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
