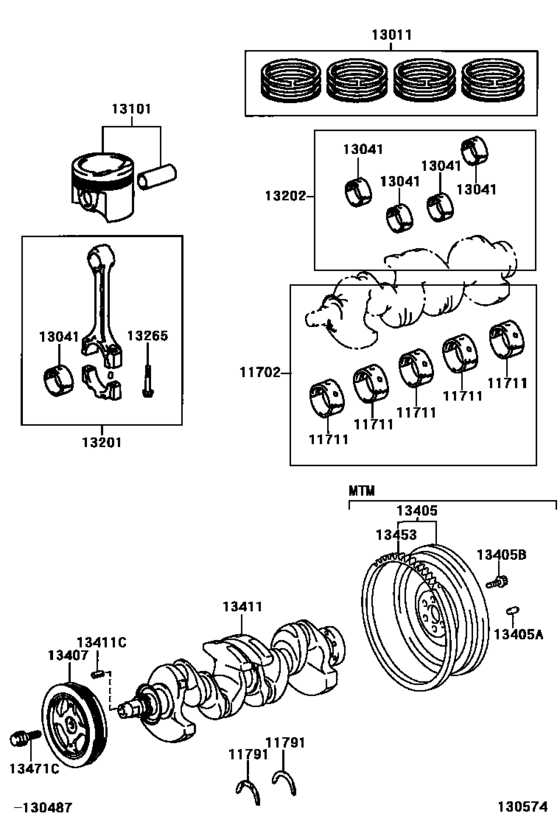

Crankshaft & Piston ([04.2003 - ] (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21010
Bearing Set, Crankshaft
[04.2003 - 08.2003] 1NZFE..NCP31 U/S 0.25 |
11704-21010 |
— | ||
| replacements | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[04.2003 - 08.2003] 1NZFE..NCP31 U/S 0.25 |
11704-21032 |
from US $90.40 |
||
|
11702
|
11702
11704-21020 Bearing Set, Crankshaft[04.2003 - 08.2003] 1NZFE..NCP31 U/S 0.25 |
11704-21020 |
from US $91.67 |
||
|
11702
|
11702
11704-21031
Bearing Set, Crankshaft
[08.2004 -] 1NZFE..NCP31 U/S 0.25 |
11704-21031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[08.2004 -] 1NZFE..NCP31 U/S 0.25 |
11704-21032 |
from US $90.40 |
||
|
11702
|
11702
11704-21040
Bearing Set, Crankshaft
[08.2003 - 08.2004] 1NZFE..NCP31 U/S 0.25 |
11704-21040 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[08.2003 - 08.2004] 1NZFE..NCP31 U/S 0.25 |
11704-21032 |
from US $90.40 |
||
|
11711
|
11711
11701-21010-01
Bearing, Crankshaft
[04.2003 - 08.2003] 1NZFE..NCP31 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
11701-21010-01 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[04.2003 - 08.2003] 1NZFE..NCP31 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
11701-21032-01 |
from US $15.13 |
||
|
11711
|
11711
11701-21020-01 Bearing, CrankshaftCRANKSHAFT [04.2003 - 08.2003] 1NZFE..NCP31 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
11701-21020-01 |
from US $15.62 |
||
|
11711
|
11711
11701-21010-02
Bearing, Crankshaft
[04.2003 - 08.2003] 1NZFE..NCP31 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
11701-21010-02 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[04.2003 - 08.2003] 1NZFE..NCP31 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
11701-21032-02 |
from US $15.83 |
||
|
11711
|
11711
11701-21020-02 Bearing, CrankshaftCRANKSHAFT [04.2003 - 08.2003] 1NZFE..NCP31 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
11701-21020-02 |
from US $15.66 |
||
|
11711
|
11711
11701-21010-03
Bearing, Crankshaft
[04.2003 - 08.2003] 1NZFE..NCP31 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
11701-21010-03 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[04.2003 - 08.2003] 1NZFE..NCP31 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
11701-21032-03 |
from US $17.36 |
||
|
11711
|
11711
11701-21020-03 Bearing, CrankshaftCRANKSHAFT [04.2003 - 08.2003] 1NZFE..NCP31 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
11701-21020-03 |
US $41.93 |
||
|
11711
|
11711
11701-21010-04
Bearing, Crankshaft
[04.2003 - 08.2003] 1NZFE..NCP31 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
11701-21010-04 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[04.2003 - 08.2003] 1NZFE..NCP31 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
11701-21032-04 |
from US $17.36 |
||
|
11711
|
11711
11701-21020-04 Bearing, CrankshaftCRANKSHAFT [04.2003 - 08.2003] 1NZFE..NCP31 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
11701-21020-04 |
US $41.93 |
||
|
11711
|
11711
11701-21031-01
Bearing, Crankshaft
[08.2004 -] 1NZFE..NCP31 MARK 1:REFER TO REPAIR MANUAL,MARK1 |
11701-21031-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[08.2004 -] 1NZFE..NCP31 MARK 1:REFER TO REPAIR MANUAL,MARK1 |
11701-21032-01 |
from US $15.13 |
||
|
11711
|
11711
11701-21031-02
Bearing, Crankshaft
[08.2004 -] 1NZFE..NCP31 MARK 2:REFER TO REPAIR MANUAL,MARK2 |
11701-21031-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[08.2004 -] 1NZFE..NCP31 MARK 2:REFER TO REPAIR MANUAL,MARK2 |
11701-21032-02 |
from US $15.83 |
||
|
11711
|
11711
11701-21031-03
Bearing, Crankshaft
[08.2004 -] 1NZFE..NCP31 MARK 3:REFER TO REPAIR MANUAL,MARK3 |
11701-21031-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[08.2004 -] 1NZFE..NCP31 MARK 3:REFER TO REPAIR MANUAL,MARK3 |
11701-21032-03 |
from US $17.36 |
||
|
11711
|
11711
11701-21031-04
Bearing, Crankshaft
[08.2004 -] 1NZFE..NCP31 MARK 4:REFER TO REPAIR MANUAL,MARK4 |
11701-21031-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[08.2004 -] 1NZFE..NCP31 MARK 4:REFER TO REPAIR MANUAL,MARK4 |
11701-21032-04 |
from US $17.36 |
||
|
11711
|
11711
11701-21040-01
Bearing, Crankshaft
[08.2003 - 08.2004] 1NZFE..NCP31 MARK 1:REFER TO REPAIR MANUAL,MARK1 |
11701-21040-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[08.2003 - 08.2004] 1NZFE..NCP31 MARK 1:REFER TO REPAIR MANUAL,MARK1 |
11701-21032-01 |
from US $15.13 |
||
|
11711
|
11711
11701-21040-02
Bearing, Crankshaft
[08.2003 - 08.2004] 1NZFE..NCP31 MARK 2:REFER TO REPAIR MANUAL,MARK2 |
11701-21040-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[08.2003 - 08.2004] 1NZFE..NCP31 MARK 2:REFER TO REPAIR MANUAL,MARK2 |
11701-21032-02 |
from US $15.83 |
||
|
11711
|
11711
11701-21040-03 Bearing, Crankshaft[08.2003 - 08.2004] 1NZFE..NCP31 MARK 3:REFER TO REPAIR MANUAL,MARK3 |
11701-21040-03 |
US $41.79 |
||
| replacement | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[08.2003 - 08.2004] 1NZFE..NCP31 MARK 3:REFER TO REPAIR MANUAL,MARK3 |
11701-21032-03 |
from US $17.36 |
||
|
11711
|
11711
11701-21040-04 Bearing, Crankshaft[08.2003 - 08.2004] 1NZFE..NCP31 MARK 4:REFER TO REPAIR MANUAL,MARK4 |
11701-21040-04 |
US $41.79 |
||
| replacement | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[08.2003 - 08.2004] 1NZFE..NCP31 MARK 4:REFER TO REPAIR MANUAL,MARK4 |
11701-21032-04 |
from US $17.36 |
||
|
11791
|
11791
11791-22020 Washer, Crankshaft Thrust, Upper[04.2003 - 08.2004] 1NZFE..NCP31 STD |
11791-22020 |
from US $16.30 |
||
|
11791
|
11791
11791-37010 Washer, Crankshaft Thrust, Upper[08.2004 - 12.2006] 1NZFE..NCP31 STD |
11791-37010 |
from US $16.28 |
||
|
11791
|
11791
11792-21010
Washer, Crankshaft Thrust, Upper
[04.2003 - 12.2003] 1NZFE..NCP31 O/S 0.125 |
11792-21010 |
— | ||
| replacement | |||||
|
11791
|
11791
11792-22020 Washer, Crankshaft Thrust, Upper[04.2003 - 12.2003] 1NZFE..NCP31 O/S 0.125 |
11792-22020 |
US $25.92 |
||
|
11791
|
11791
11792-22020 Washer, Crankshaft Thrust, Upper[12.2003 - 12.2006] 1NZFE..NCP31 O/S 0.125 |
11792-22020 |
US $25.92 |
||
|
11791
|
11791
11793-21010
Washer, Crankshaft Thrust, Upper
[04.2003 - 12.2003] 1NZFE..NCP31 O/S 0.25 |
11793-21010 |
— | ||
| replacement | |||||
|
11791
|
11791
11793-22020 Washer, Crankshaft Thrust, Upper[04.2003 - 12.2003] 1NZFE..NCP31 O/S 0.25 |
11793-22020 |
US $25.92 |
||
|
11791
|
11791
11793-22020 Washer, Crankshaft Thrust, Upper[12.2003 - 12.2006] 1NZFE..NCP31 O/S 0.25 |
11793-22020 |
US $25.92 |
||
|
13011
|
13011
13011-21041 Ring Set, Piston[04.2003 -] 1NZFE..NCP31 STD |
13011-21041 |
US $187.82 |
||
| replacement | |||||
|
13011
|
13011
13011-21120 Ring Set, Piston[04.2003 -] 1NZFE..NCP31 STD |
13011-21120 |
from US $94.42 |
||
|
13041
|
13041
13041-21022-01
Bearing, Connecting Rod
[08.2004 -] 1NZFE..NCP31 MARK 1,REFER REPAIR MANUAL |
13041-21022-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-01 Bearing, Connecting Rod[08.2004 -] 1NZFE..NCP31 MARK 1,REFER REPAIR MANUAL |
13041-21033-01 |
from US $12.91 |
||
|
13041
|
13041
13041-21022-02
Bearing, Connecting Rod
[08.2004 -] 1NZFE..NCP31 MARK 2,REFER REPAIR MANUAL |
13041-21022-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-02 Bearing, Connecting Rod[08.2004 -] 1NZFE..NCP31 MARK 2,REFER REPAIR MANUAL |
13041-21033-02 |
from US $11.41 |
||
|
13041
|
13041
13041-21022-03
Bearing, Connecting Rod
[08.2004 -] 1NZFE..NCP31 MARK 3,REFER REPAIR MANUAL |
13041-21022-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-03 Bearing, Connecting Rod[08.2004 -] 1NZFE..NCP31 MARK 3,REFER REPAIR MANUAL |
13041-21033-03 |
from US $12.91 |
||
|
13041
|
13041
13041-21030-01 Bearing, Connecting Rod[04.2003 - 09.2003] 1NZFE..NCP31 MARK 1,REFER REPAIR MANUAL |
13041-21030-01 |
from US $11.78 |
||
|
13041
|
13041
13041-21030-02 Bearing, Connecting Rod[04.2003 - 09.2003] 1NZFE..NCP31 MARK 2,REFER REPAIR MANUAL |
13041-21030-02 |
from US $11.78 |
||
|
13041
|
13041
13041-21030-03 Bearing, Connecting Rod[04.2003 - 09.2003] 1NZFE..NCP31 MARK 3,REFER REPAIR MANUAL |
13041-21030-03 |
US $16.89 |
||
|
13041
|
13041
13041-21031-01 Bearing, Connecting Rod[09.2003 - 08.2004] 1NZFE..NCP31 MARK 1,REFER REPAIR MANUAL |
13041-21031-01 |
US $29.99 |
||
| replacement | |||||
|
13041
|
13041
13041-21033-01 Bearing, Connecting Rod[09.2003 - 08.2004] 1NZFE..NCP31 MARK 1,REFER REPAIR MANUAL |
13041-21033-01 |
from US $12.91 |
||
|
13041
|
13041
13041-21031-02
Bearing, Connecting Rod
[09.2003 - 08.2004] 1NZFE..NCP31 MARK 2,REFER REPAIR MANUAL |
13041-21031-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-02 Bearing, Connecting Rod[09.2003 - 08.2004] 1NZFE..NCP31 MARK 2,REFER REPAIR MANUAL |
13041-21033-02 |
from US $11.41 |
||
|
13041
|
13041
13041-21031-03
Bearing, Connecting Rod
[09.2003 - 08.2004] 1NZFE..NCP31 MARK 3,REFER REPAIR MANUAL |
13041-21031-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-03 Bearing, Connecting Rod[09.2003 - 08.2004] 1NZFE..NCP31 MARK 3,REFER REPAIR MANUAL |
13041-21033-03 |
from US $12.91 |
||
|
13101
|
13101
13101-21070
Piston Sub-Assy, W/pin
[04.2003 -] 1NZFE..NCP31 STD |
13101-21070 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-21160 Piston Sub-Assy, W/pin[04.2003 -] 1NZFE..NCP31 STD |
13101-21160 |
from US $45.61 |
||
|
13201
|
13201
13201-29095
Rod Sub-Assy, Connecting
[04.2003 - 12.2003] 1NZFE..NCP31 |
13201-29095 |
— | ||
| replacements | |||||
|
13201
|
13201
13201-29737
Rod Sub-Assy, Connecting
[04.2003 - 12.2003] 1NZFE..NCP31 |
13201-29737 |
— | ||
|
13201
|
13201
13201-29757 Rod sub-assy, Connecting[04.2003 - 12.2003] 1NZFE..NCP31 |
13201-29757 |
from US $104.01 |
||
|
13201
|
13201
13201-29425
Rod Sub-Assy, Connecting
[12.2003 - 08.2004] 1NZFE..NCP31 |
13201-29425 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29737
Rod Sub-Assy, Connecting
[12.2003 - 08.2004] 1NZFE..NCP31 |
13201-29737 |
— | ||
|
13201
|
13201
13201-29735
Rod Sub-Assy, Connecting
[08.2004 -] 1NZFE..NCP31 |
13201-29735 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29737
Rod Sub-Assy, Connecting
[08.2004 -] 1NZFE..NCP31 |
13201-29737 |
— | ||
|
13202
|
13202
13204-21022
Bearing Set, Connecting Rod
[08.2004 -] 1NZFE..NCP31 U/S 0.25 |
13204-21022 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-21033 Bearing Set, Connecting Rod[08.2004 -] 1NZFE..NCP31 U/S 0.25 |
13204-21033 |
from US $55.79 |
||
|
13202
|
13202
13204-21030
Bearing Set, Connecting Rod
[04.2003 - 09.2003] 1NZFE..NCP31 U/S 0.25 |
13204-21030 |
— | ||
|
13202
|
13202
13204-21031 Bearing Set, Connecting Rod[12.2003 - 08.2004] 1NZFE..NCP31 U/S 0.25 |
13204-21031 |
US $133.95 |
||
| replacement | |||||
|
13202
|
13202
13204-21033 Bearing Set, Connecting Rod[12.2003 - 08.2004] 1NZFE..NCP31 U/S 0.25 |
13204-21033 |
from US $55.79 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[04.2003 -] 1NZFE..NCP31 |
13265-21020 |
from US $2.91 |
||
|
13405
|
13405
13405-21030 Flywheel Sub-Assy[04.2003 -] 1NZFE..NCP31..MTM |
13405-21030 |
US $262.40 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[04.2003 -] 1NZFE..NCP31..MTM L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
13405B
|
13405B
90913-01024 Bolt, Flywheel Setting[04.2003 -] 1NZFE..NCP31..MTM |
90913-01024 |
US $1.97 |
||
|
13407
|
13407
13407-21020 Damper Sub-Assy, Crankshaft[04.2003 -] 1NZFE..NCP31 |
13407-21020 |
US $244.80 |
||
|
13411
|
13411
13401-21020 Crankshaft[04.2003 -] 1NZFE..NCP31 |
13401-21020 |
US $701.79 |
||
|
13411C
|
13411C
90254-03025
Pin, Straight(For Crankshaft)
[04.2003 -] 1NZFE..NCP31 |
90254-03025 |
— | ||
| replacement | |||||
|
13411C
|
13411C
90250-03095 Pin, Straight(For Crankshaft)[04.2003 -] 1NZFE..NCP31 |
90250-03095 |
from US $0.55 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[04.2003 -] 1NZFE..NCP31..MTM |
13453-10010 |
US $57.26 |
||
|
13471C
|
13471C
90119-12345 Bolt(For Crankshaft Pulley Set)[04.2003 -] 1NZFE..NCP31 |
90119-12345 |
from US $2.69 |
||
