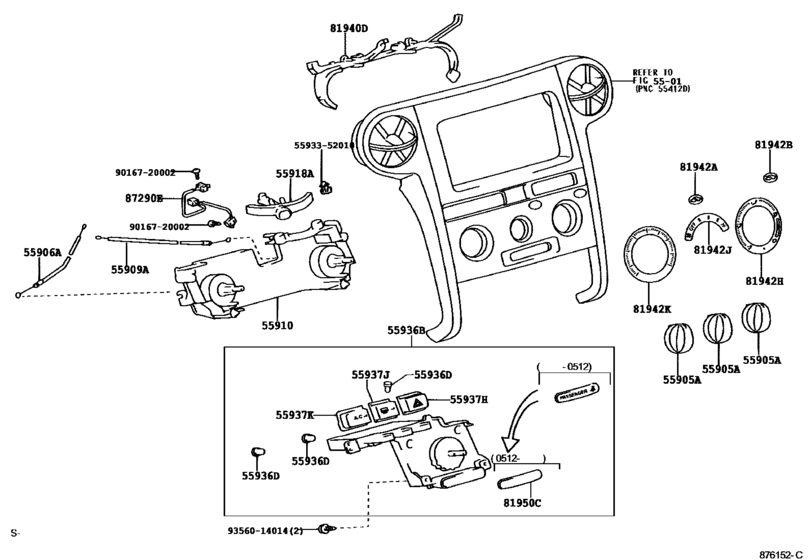

Heating & Air Conditioning - Control & Air Duct ([04.2003 - ] CONTROL (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905A
|
55905A
55905-52090 Knob, Heater Control[04.2003 -] NCP31 |
55905-52090 |
US $11.36 |
||
|
55906A
|
55906A
55906-52110 Cable Sub-Assy, Defroster Damper Control[04.2003 - 07.2004] NCP31 |
55906-52110 |
US $8.15 |
||
| replacement | |||||
|
55906A
|
55906A
55906-52140 Cable Sub-Assy, Defroster Damper Control[04.2003 - 07.2004] NCP31 |
55906-52140 |
US $6.70 |
||
|
55906A
|
55906A
55906-52140 Cable Sub-Assy, Defroster Damper Control[08.2004 -] NCP31 |
55906-52140 |
US $6.70 |
||
|
55909A
|
55909A
55909-52100 Cable Sub-Assy, Airmix Damper ControlAIRMIX DAMPER CONTROL [04.2003 -] NCP31 |
55909-52100 |
US $8.15 |
||
|
55910
|
55910
55910-52010 Control Assy, Heater Or Boost VentilatorHEATER OR BOOST VENTILATOR [04.2003 -] NCP31 |
55910-52010 |
US $80.08 |
||
|
55918A
|
55918A
55918-52070 Lever, Air Inlet Damper Control[04.2003 -] NCP31 |
55918-52070 |
US $11.36 |
||
|
55936B
|
55936B
84010-52480 Switch, Center Cluster ModuleCENTER CLUSTER MODULE [04.2003 - 12.2005] NCP31 |
84010-52480 |
US $133.95 |
||
|
55936B
|
55936B
84010-52630
Switch, Center Cluster Module
[12.2005 -] NCP31 |
84010-52630 |
— | ||
|
55936D
|
55936D
84999-10490 Blub, Center Cluster Module Switch[04.2003 - 12.2005] NCP31 14V 0.84W |
84999-10490 |
from US $6.71 |
||
|
55936D
|
55936D
90010-01049 Bulb, Main Switch Assy[12.2005 -] NCP31 14V0.91W,YELLOW CAP |
90010-01049 |
US $5.42 |
||
|
55936D
|
55936D
90010-01082 Blub, Center Cluster Module Switch[04.2003 -] NCP31 14V 1.8W |
90010-01082 |
US $7.28 |
||
|
55937H
|
55937H
55937-52410 Knob, Center Cluster Module, No.5[04.2003 -] NCP31 |
55937-52410 |
US $6.12 |
||
| replacement | |||||
|
55937H
|
55937H
55937-52150 Knob, Center Cluster Module, No.5[04.2003 -] NCP31 |
55937-52150 |
US $6.41 |
||
|
55937J
|
55937J
55937-52560 Knob, Center Cluster Module, No.6[04.2003 -] NCP31 |
55937-52560 |
US $6.84 |
||
|
55937K
|
55937K
55937-52430 Knob, Center Cluster Module, No.7[04.2003 -] NCP31 |
55937-52430 |
US $6.84 |
||
| replacement | |||||
|
55937K
|
55937K
55937-52120 Knob, Center Cluster Module, No.5[04.2003 -] NCP31 |
55937-52120 |
US $6.99 |
||
|
81940D
|
81940D
81940-52100 Lens Assy, Heater Control[04.2003 - 08.2004] NCP31 |
81940-52100 |
US $22.13 |
||
|
81942A
|
81942A
81942-52430-B0 Sheet, Heater Control Name, No.1[04.2003 - 08.2004] NCP31 DK.GRAY,TRIM9# |
81942-52430-B0 |
US $4.08 |
||
|
81942B
|
81942B
81942-52440-B0 Sheet, Heater Control Name, No.2[04.2003 - 08.2004] NCP31 DK.GRAY,TRIM9# |
81942-52440-B0 |
US $4.08 |
||
|
81942H
|
81942H
81942-52480-B0 Sheet, Heater Control Name, No.3HEATER CONTROL NAME, NO.5 [04.2003 - 08.2004] NCP31 DK.GRAY,TRIM9# |
81942-52480-B0 |
US $5.82 |
||
|
81942J
|
81942J
81942-52270-B0 Sheet, Heater Control Name, No.4[04.2003 - 08.2004] NCP31 DK.GRAY,TRIM9# |
81942-52270-B0 |
US $4.95 |
||
|
81942K
|
81942K
81942-52260-B0 Sheet, Heater Control Name, No.3[04.2003 - 08.2004] NCP31 DK.GRAY,TRIM9# |
81942-52260-B0 |
US $5.82 |
||
|
81942K
|
81942K
81942-52360-B0 Sheet, Heater Control Name, No.3HEATER CONTROL NAME, NO.3 [09.2004 - 12.2006] NCP31 DK.GRAY,TRIM9# |
81942-52360-B0 |
US $5.82 |
||
| replacement | |||||
|
81942K
|
81942K
81942-52260-B0 Sheet, Heater Control Name, No.3[09.2004 - 12.2006] NCP31 DK.GRAY,TRIM9# |
81942-52260-B0 |
US $5.82 |
||
|
81950C
|
81950C
81950-52060 Lens Assy, Center Cluster Module Indicator[04.2003 - 12.2005] NCP31 |
81950-52060 |
US $7.86 |
||
| replacement | |||||
|
81950C
|
81950C
81950-52010 Lens Assy, Center Cluster Module Indicator[04.2003 - 12.2005] NCP31 |
81950-52010 |
US $6.55 |
||
|
81950C
|
81950C
81950-52090 Lens Assy, Center Cluster Module IndicatorCENTER CLUSTER MODULE INDICATOR [12.2005 -] NCP31 |
81950-52090 |
US $7.86 |
||
|
87290E
|
87290E
87290-52040 Switch Assy, Heater[04.2003 -] NCP31 |
87290-52040 |
US $91.73 |
||
|
5593352010
|
5593352010
55933-52010 Clamp, Heater Control Cable |
55933-52010 |
US $2.33 |
||
|
9016720002
|
9016720002
90167-20002 New Genuine Part |
90167-20002 |
US $1.02 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
US $1.08 |
||
