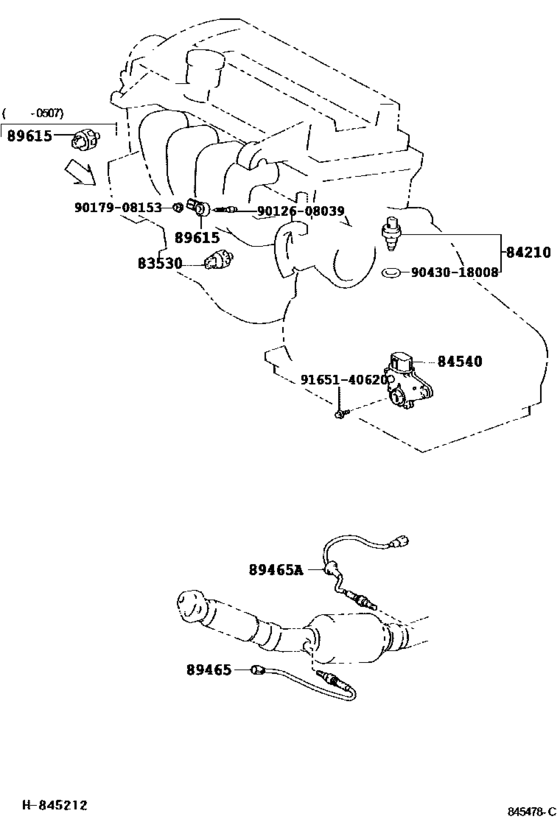

Switch & Relay & Computer ([04.2003 - ] ENGINE & TRANSMISSION (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[04.2003 - 08.2003] NCP31 |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2003 - 08.2003] NCP31 |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[04.2003 - 08.2003] NCP31 |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2003 -] NCP31 YAZAKI |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[04.2003 - 12.2006] NCP31..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[04.2003 - 12.2006] NCP31..MTM |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-52190
Sensor, Oxygen
[04.2003 -] NCP31 |
89465-52190 |
— | ||
|
89465A
|
89465A
89465-52200
Sensor, Oxygen No.2
[04.2003 -] NCP31 |
89465-52200 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[07.2005 -] NCP31 |
89615-20090 |
from US $36.02 |
||
|
89615
|
89615
89615-52030 Sensor, Knock Control[04.2003 - 09.2003] NCP31 DENSO |
89615-52030 |
US $220.15 |
||
|
89615
|
89615
89615-52040 Sensor, Knock Control[04.2003 - 09.2003] NCP31 TOYOTA |
89615-52040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-52030 Sensor, Knock Control[04.2003 - 09.2003] NCP31 TOYOTA |
89615-52030 |
US $220.15 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
