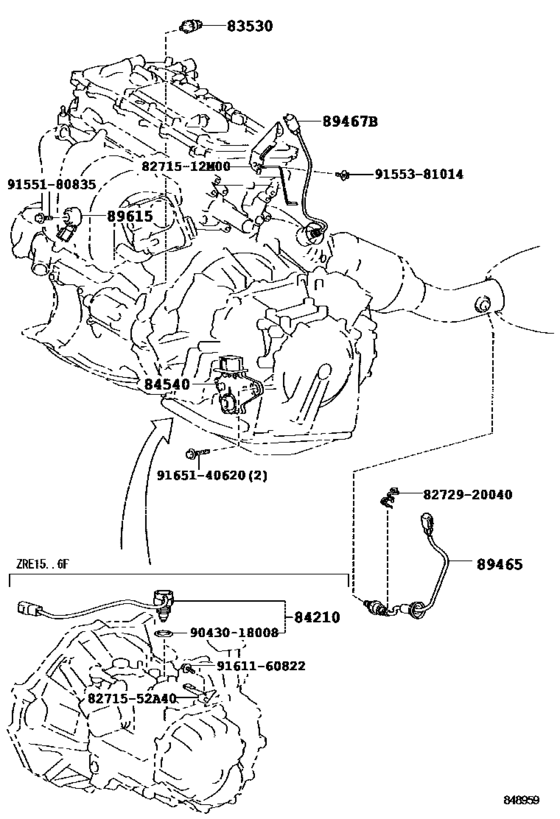

Switch & Relay & Computer ([06.2007 - ] ENGINE & TRANSMISSION (0706- )) Diagram Toyota SCION XD
- Year
- 2007 - 2014
- Sales region
- U.S.A.
- Frame
- ZSP110
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.2007
- To
- 07.2014
- Gear Shift Type
- 4FC
- Vehicle Model
- XD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-12050 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZSP110 |
83530-12050 |
US $29.27 |
||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZSP110 |
83530-12060 |
from US $25.82 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[06.2007 - 10.2013] ZSP110 |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [06.2007 - 10.2013] ZSP110 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[06.2007 - 10.2013] ZSP110 |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2014 - 07.2014] ZSP110 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-52080 Switch Assy, Neutral Start[06.2007 - 07.2014] ZSP110..4FC |
84540-52080 |
US $232.96 |
||
|
89465
|
89465
89465-52500 Sensor, Oxygen[06.2007 - 07.2014] ZSP110 |
89465-52500 |
US $160.74 |
||
|
89467B
|
89467B
89467-12030 Sensor, Oxygen[06.2007 - 07.2009] ZSP110 |
89467-12030 |
US $190.08 |
||
|
89467B
|
89467B
89467-52060 Sensor, OxygenAIR FUEL RATIO [07.2009 - 07.2014] ZSP110 |
89467-52060 |
from US $146.52 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[06.2007 - 07.2014] ZSP110 |
89615-20090 |
from US $36.02 |
||
|
8271512M00
|
8271512M00
82715-12M00
Bracket,wiring Harness Clamp
|
82715-12M00 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
8272920040
|
8272920040
82729-20040 New Genuine Part |
82729-20040 |
US $2.91 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.84 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
