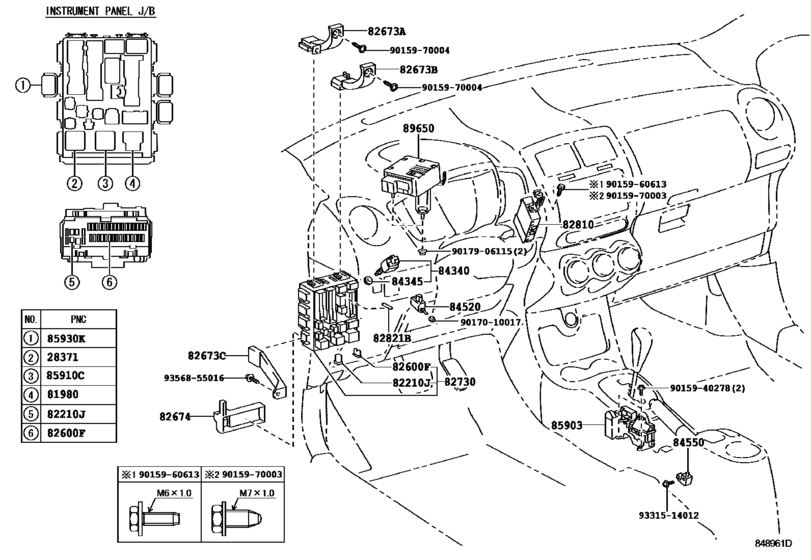

Switch & Relay & Computer ([06.2007 - ] COWL (0706- )) Diagram Toyota SCION XD
- Year
- 2007 - 2014
- Sales region
- U.S.A.
- Frame
- ZSP110
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.2007
- To
- 07.2014
- Gear Shift Type
- 4FC
- Vehicle Model
- XD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[06.2007 - 07.2014] 2ZRFE..ZSP110 |
90987-02030 |
from US $44.54 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[06.2007 - 07.2014] ZSP110 |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[06.2007 - 07.2014] ZSP110 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[06.2007 - 07.2014] ZSP110 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[06.2007 - 07.2014] ZSP110 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[06.2007 - 07.2014] ZSP110 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[06.2007 - 07.2014] ZSP110 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[06.2007 - 07.2014] ZSP110 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[06.2007 - 07.2014] ZSP110 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[06.2007 - 08.2011] ZSP110..USA 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[06.2007 - 07.2014] ZSP110 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82673A
|
82673A
82673-52110
Bracket, Junction Block
[06.2007 - 07.2014] ZSP110 |
82673-52110 |
— | ||
|
82673B
|
82673B
82673-52120
Bracket, Junction Block
[06.2007 - 07.2014] ZSP110 |
82673-52120 |
— | ||
|
82673C
|
82673C
82673-52070 Bracket, Junction BlockJUNCTION BLOCK [06.2007 - 07.2014] ZSP110 |
82673-52070 |
US $9.61 |
||
|
82674
|
82674
82674-46010 Cover, Junction Block Lower[06.2007 - 07.2014] ZSP110 |
82674-46010 |
US $6.41 |
||
|
82730
|
82730
82730-52K50
Block Assy, Instrument Panel Junction
[06.2007 - 07.2014] ZSP110..USA |
82730-52K50 |
— | ||
|
82821B
|
82821B
82821-52020 Cover, Connector[06.2007 - 07.2014] ZSP110 |
82821-52020 |
US $0.44 |
||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[08.2008 - 07.2014] ZSP110 |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[08.2008 - 07.2014] ZSP110 |
84340-19026 |
from US $21.28 |
||
|
84340
|
84340
84340-69025 Switch Assy, Stop Lamp[06.2007 - 07.2008] ZSP110 |
84340-69025 |
from US $26.56 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[06.2007 - 07.2014] ZSP110 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[06.2007 - 07.2014] ZSP110 |
84550-33010 |
from US $18.39 |
||
|
85903
|
85903
85903-60020 Computer Sub-Assy, Shift Lock ControlSHIFT LOCK CONTROL [06.2007 - 07.2014] ZSP110..4FC |
85903-60020 |
US $160.74 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[06.2007 - 07.2014] ZSP110 |
90987-04010 |
from US $42.71 |
||
|
85930K
|
85930K
90987-04004 Relay, Starter Cut[06.2007 - 07.2014] ZSP110 |
90987-04004 |
from US $42.71 |
||
|
89650
|
89650
89650-52240
Computer Assy, Power Steering
[06.2007 - 08.2010] ZSP110 |
89650-52240 |
— | ||
|
89650
|
89650
89650-52A10
Computer Assy, Power Steering
[08.2010 - 03.2012] ZSP110 |
89650-52A10 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-52A11
Computer Assy, Power Steering
[08.2010 - 03.2012] ZSP110 |
89650-52A11 |
— | ||
|
89650
|
89650
89650-52A11
Computer Assy, Power Steering
[04.2012 - 07.2014] ZSP110 |
89650-52A11 |
— | ||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $0.96 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
