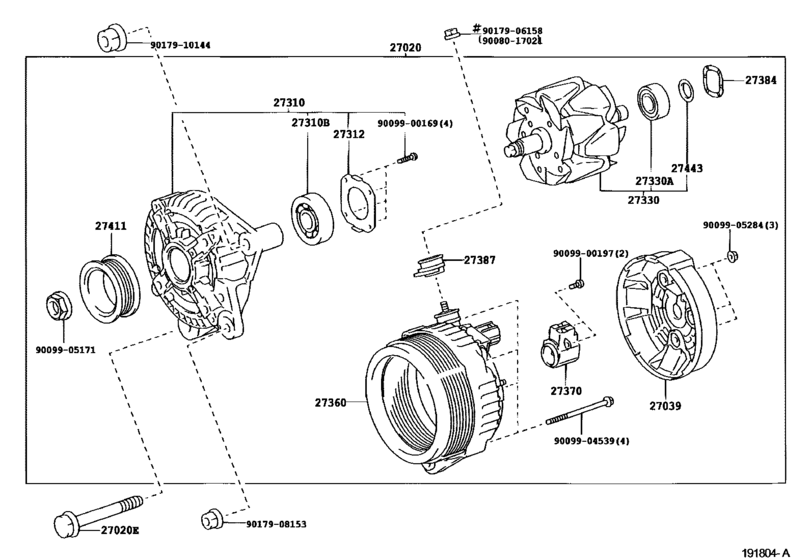

Alternator ([09.2002 - ] 12V 130A,12V 150A (0209- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0F040 Alternator Assy[08.2004 -] 2UZFE..UCK35,45 12V 130A |
27060-0F040 |
US $2,664.48 |
||
|
27020
|
27020
27060-0F050 Alternator Assy[08.2004 -] 2UZFE..UCK35,45 12V 150A |
27060-0F050 |
US $2,868.32 |
||
|
27020E
|
27020E
90119-10791 Bolt(For Alternator)[08.2004 -] 2UZFE..UCK35,45 |
90119-10791 |
US $3.67 |
||
|
27039
|
27039
27039-0F060
Cover, Alternator Rear End
[08.2004 -] 2UZFE..UCK35,45 |
27039-0F060 |
— | ||
|
27310
|
27310
27310-0F060
Frame Assy, Drive End, Alternator
[08.2004 -] 2UZFE..UCK35,45 |
27310-0F060 |
— | ||
|
27310B
|
27310B
90068-10033
Bearing(For Alternator Drive End Frame)
[05.2007 - 11.2007] 2UZFE..UCK35,45 |
90068-10033 |
— | ||
|
27310B
|
27310B
90068-10140
Bearing(For Alternator Drive End Frame)
[08.2004 - 03.2006] 2UZFE..UCK35,45 12V 130A |
90068-10140 |
— | ||
|
27310B
|
27310B
90068-10142 Bearing(For Alternator Drive End Frame)[08.2004 - 05.2007] 2UZFE..UCK35,45 12V 150A |
90068-10142 |
US $24.90 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[08.2004 -] 2UZFE..UCK35,45 |
27312-72100 |
US $3.92 |
||
|
27330
|
27330
27330-0A100
Rotor Assy, Alternator
[08.2004 -] 2UZFE..UCK35,45 12V 130A |
27330-0A100 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-33090 Rotor Assy, Alternator[08.2004 -] 2UZFE..UCK35,45 12V 130A |
27330-33090 |
US $193.94 |
||
|
27330
|
27330
27330-0A110
Rotor Assy, Alternator
[08.2004 -] 2UZFE..UCK35,45 12V 150A |
27330-0A110 |
— | ||
|
27330A
|
27330A
90068-10140
Bearing(For Alternator Drive End Frame)
[02.2005 - 11.2007] 2UZFE..UCK35,45 12V 130A |
90068-10140 |
— | ||
|
27330A
|
27330A
90068-10222
Bearing(For Alternator Rotor)
[08.2004 - 09.2005] 2UZFE..UCK35,45 12V 150A |
90068-10222 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.2004 - 02.2005] 2UZFE..UCK35,45 12V 130A |
90099-10140 |
from US $9.43 |
||
|
27360
|
27360
27360-0F040
Coil Assy, Alternator
[08.2004 -] 2UZFE..UCK35,45 12V 130A |
27360-0F040 |
— | ||
|
27360
|
27360
27360-0F050
Coil Assy, Alternator
[08.2004 -] 2UZFE..UCK35,45 12V 150A |
27360-0F050 |
— | ||
|
27370
|
27370
27370-0F060
Holder Assy, Alternator Brush
[08.2004 -] 2UZFE..UCK35,45 |
27370-0F060 |
— | ||
|
27384
|
27384
27384-0A020 Washer[08.2004 -] 2UZFE..UCK35,45 |
27384-0A020 |
US $9.32 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[08.2004 -] 2UZFE..UCK35,45 |
27387-20130 |
US $4.02 |
||
|
27411
|
27411
27411-0A050
Pulley, Alternator
[08.2004 -] 2UZFE..UCK35,45 |
27411-0A050 |
— | ||
|
27443
|
27443
27443-0A020
Cover, Alternator Bearing
[08.2004 -] 2UZFE..UCK35,45 |
27443-0A020 |
— | ||
| replacement | |||||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.2004 -] 2UZFE..UCK35,45 |
27443-63020 |
from US $1.12 |
||
|
9008017021
|
9008017021
90080-17021
Nut (For Rear Wiper Arm Setting)
|
90080-17021 |
— | ||
| replacement | |||||
|
9008017021
|
9008017021
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
